H3BA
H3BA
284
How to Use Gate Signal Input

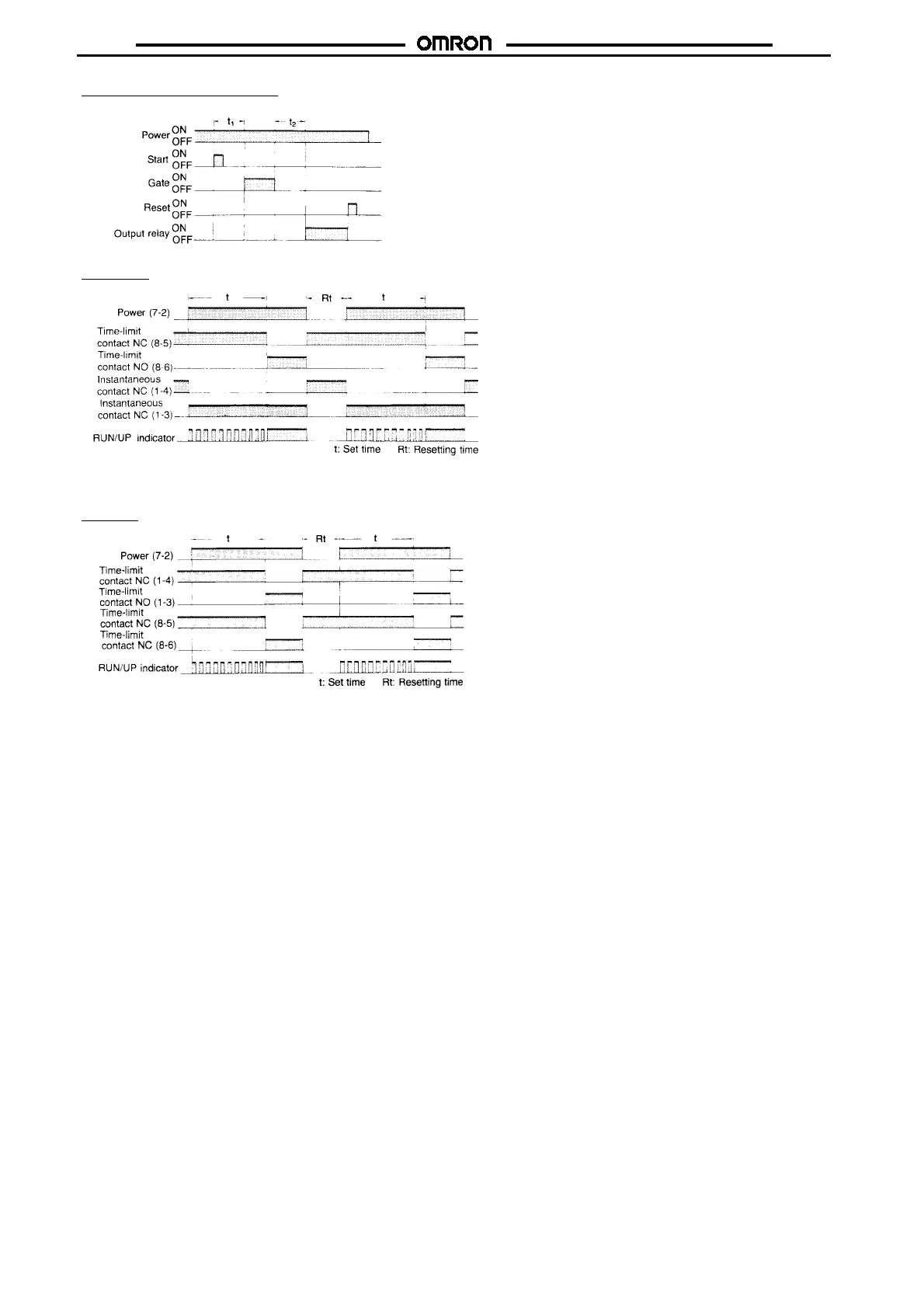

Note: 1. This timing chart indicates the gate input in opera-
tion mode A (ON-delay operation).
2. The set time is the sum of t
1
and t
2
.
H3BA-8H
H3BA-8
Note: The minimum signal input time is 0.05 s.
