H3BH
H3BH
297

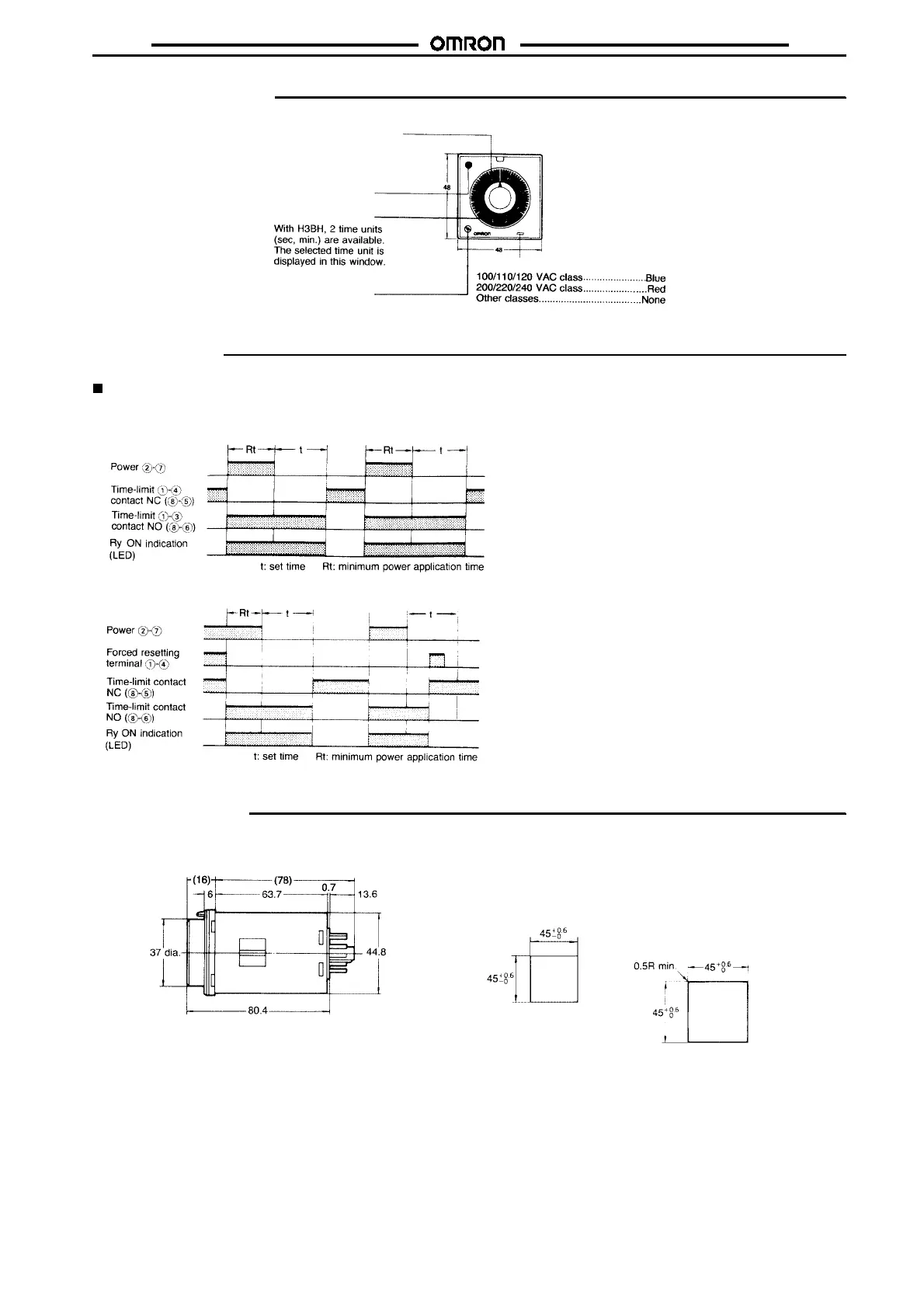

Nomenclature
Dial Digit Display Windows
Ry ON Indicator
Time Unit Display
Rated Time Selector
Rated Voltage Classification Color Code
Operation
Timing Chart
H3BH-8
H3BH-8R
Dimensions
Note: All units are in millimeters unless otherwise indicated.
Note: Numbers in parentheses are reference value.
Panel Cutouts
When mounting a
single unit
t=1to3.2mm
Horizontally connecting n units
No front cover:
N = (48n -- 2.5)
+1
/
-- 0
With front cover:
N = {48n -- 2.5 + (n -- 1) x 3}
+1
/
-- 0
(N)
