Omron H3DR-A User Manual

H3G
H3G
319
Mounting Holes
Note: PF085A can be used
as a front connecting
socket.

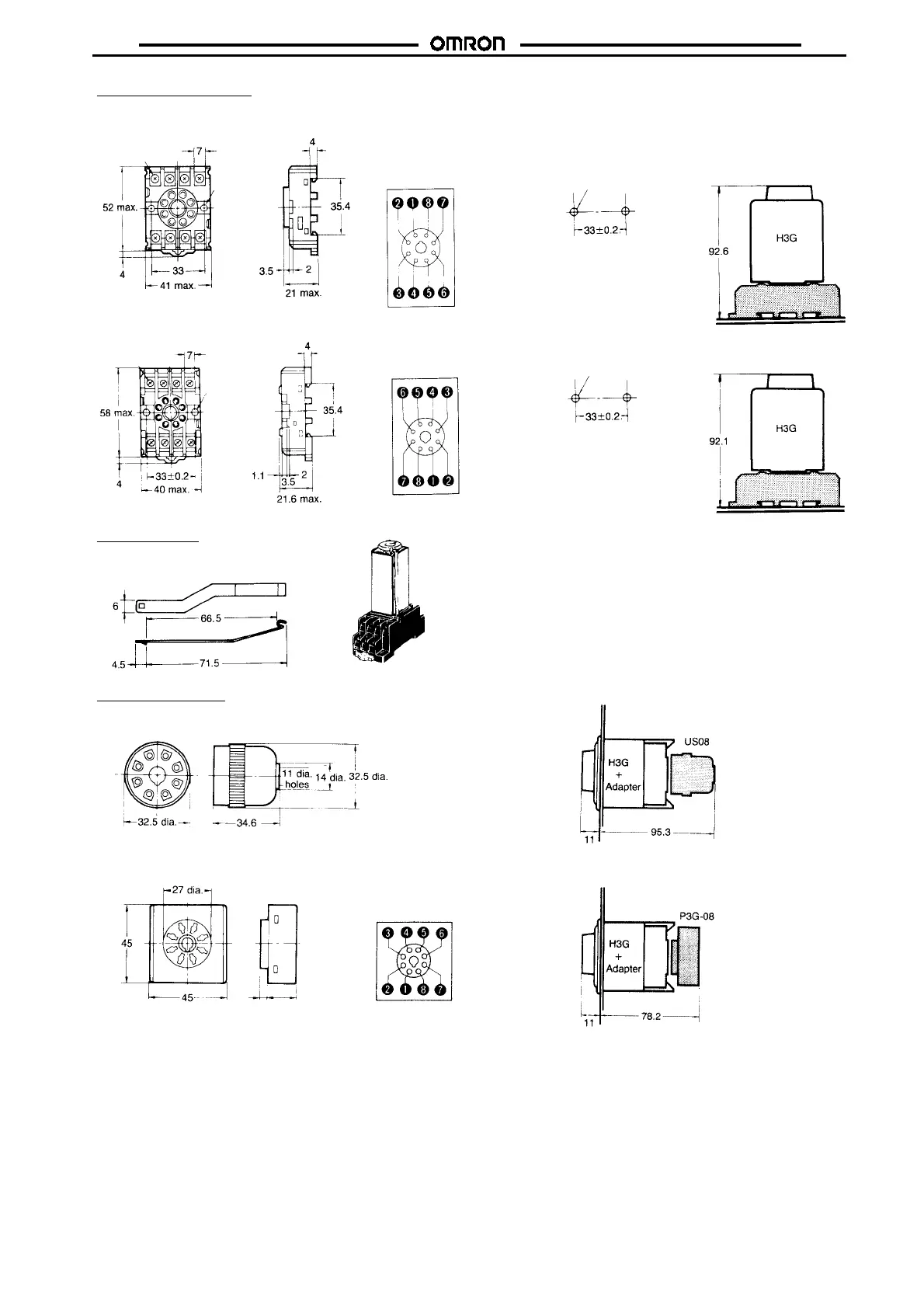

Track Mounting Socket
PF083A
Terminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
PF085A
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
Note: PF085A can be used
as a front connecting
socket.
Eight, M3.5
'
7
sems
Eight, M3.5
'
7
sems
Two, 4.2 dia.
holes
Two, 4.5 dia.
holes
Two, M4 or 4.5 dia. holes
Two, M4 or 4.5 dia. holes
Mounting Clips
Y92H-6
Connecting Socket
US08
P3G-08
Terminal Arrangement
(Bottom View)

Omron H3DR-A Specifications

General

Brand	Omron
Model	H3DR-A
Category	Timer
Language	English
