B-92 Solid-state Timer H3YN
Dimensions
Note: All units are in millimeters unless otherwise indicated.
■ Timers
6.4
(63.0)
PY08 (PY14)

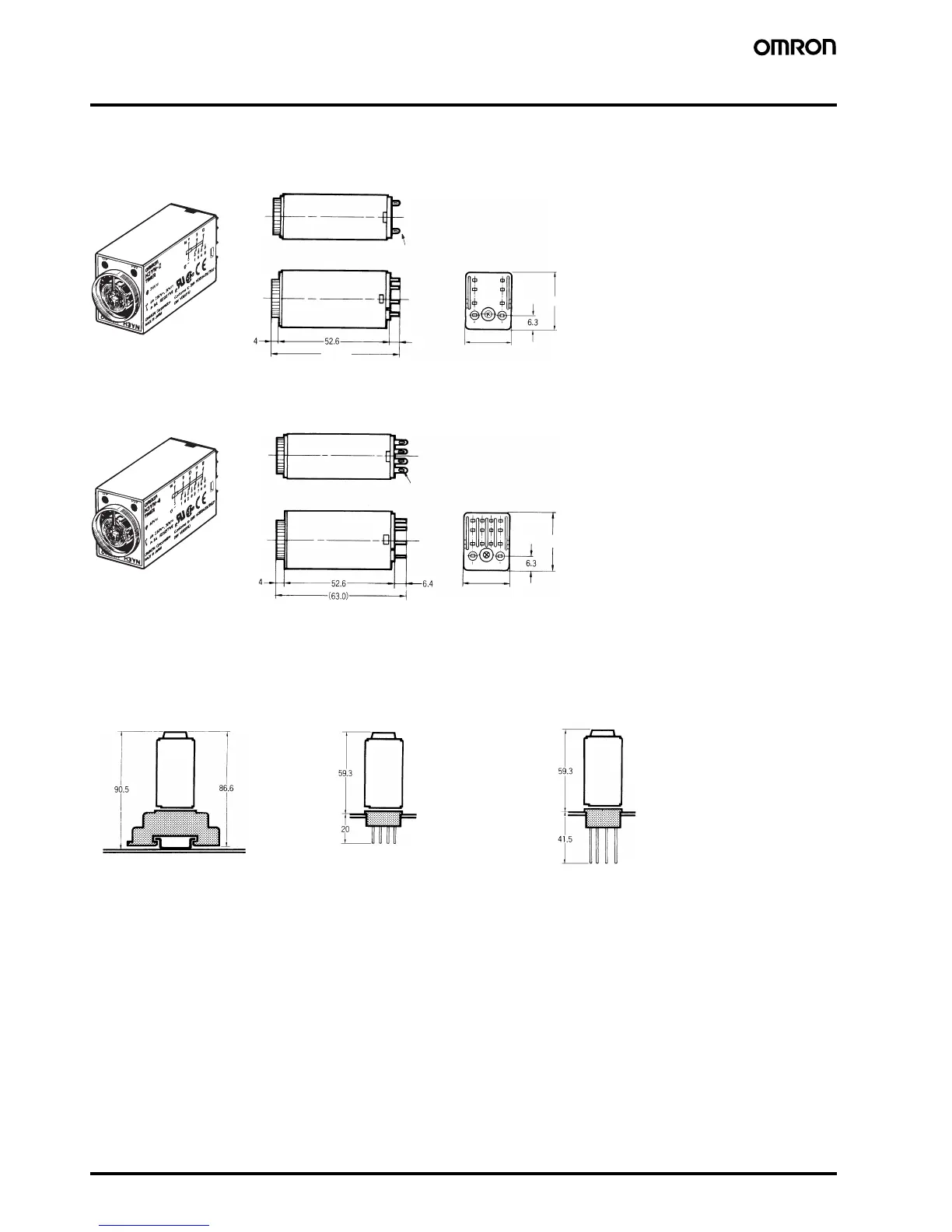

H3YN-2/-21 Front Mounting
Mounting Height
PY08 (PY14 (see note)) PY08QN (PY14QN (see note))
Note: Models in parentheses are Connecting Sockets to the H3YN-4/-41 or H3YN-4-Z/-41-Z.
Fourteen, 3 × 1.2 elliptic holes
28 max.
21.5 max.
28 max.
21.5 max.
Eight, 3 × 1.2 elliptic holes
PYF08A (PYF14A)
H3YN-4/-41 Front Mounting
H3YN-4-Z/-41-Z
PYF08A/PYF08A-N/PYF08A-E
(PYF14A/PYF14A-N/PYF14A-E
(see note))
H3YN
Series
H3YN
Series
H3YN
Series
PY08QN
(PY14QN)
