Omron HS-360X Configuration Guide

Omron Automation Americas
3

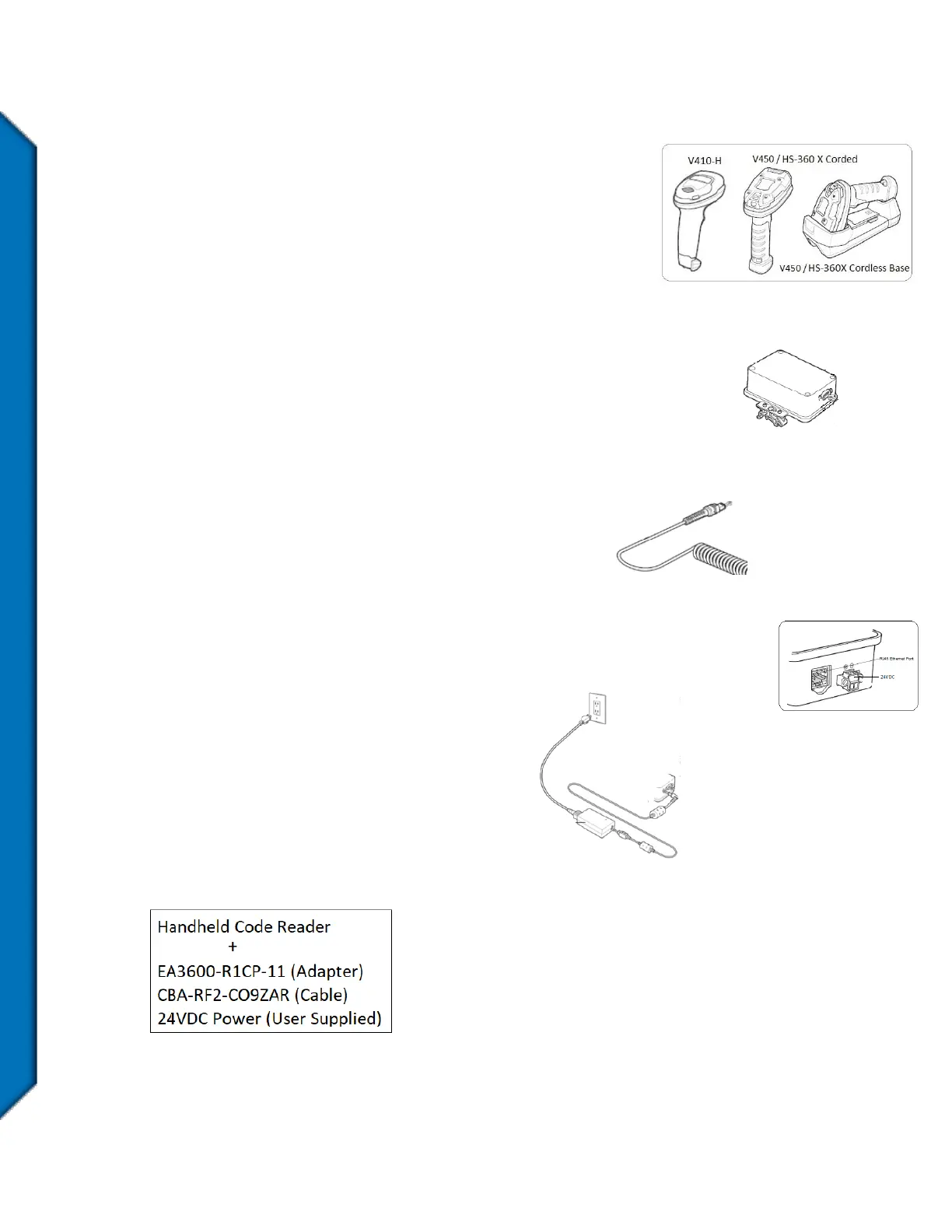

Select the handheld barcode reader
 Corded options from V410-H, V450 / HS360X Corded
 Cordless option to connect to V450 / HS360X Base
Choose the appropriate Network Adapter
 Network Adapters are available for EtherNet/IP and PROFINET
 EtherNet/IP Adapter: EA3600-R1CP-11
 PROFINET Adapter: EA3600-S1CP-11
Required Connection Cable
 Adapter to Handheld Cable: CBA-RF2-CO9ZAR
Power Supply Options
 Power the adapter from 24VDC through the supplied terminals
or
 Powered by optional AC adapter
Example BOM for handheld to EtherNet/IP Adapter
