Omron Micro A-I-R NE-U22 User Manual

5
Before Using the Unit

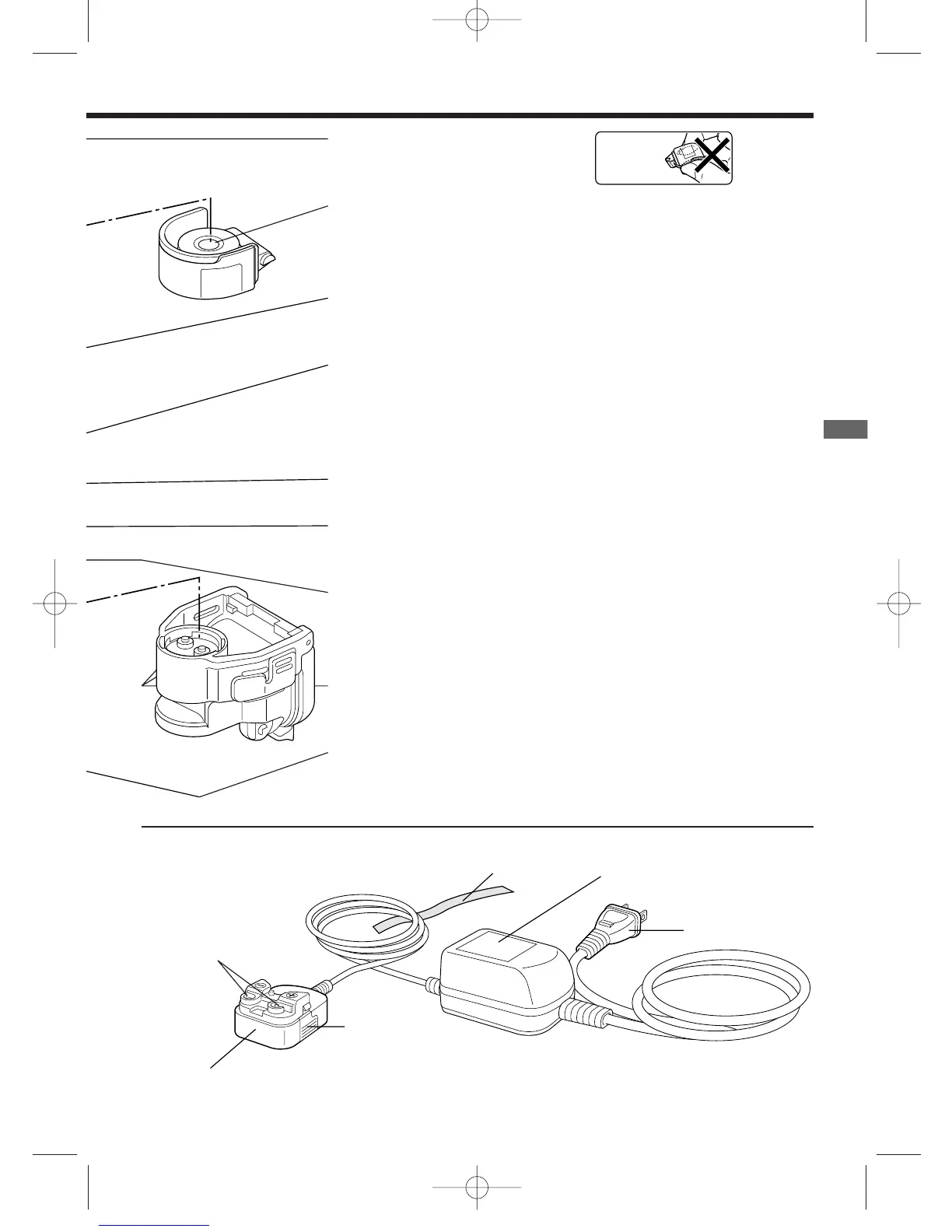

Names and Functions of the Parts
Power Plug*
AC Adapter as Optional Supply
Main Unit
Locking Board
AC Adapter
Cord Band
AC Adapter Connection Stand
Do not insert your
finger into the
Nebulization Port.
Nebulization Port
Nebulize medication here.
Mesh
Efficient nebulization is realized from the minute pores.
- Mesh is an extremely minute part. Handle it carefully.
Air Port
Stabilizes nebulization.
Medication Bottle Cap Locking Lever
Opens the Medication Bottle Cap.
- Do not open Medication Bottle Cap except
when washing Medication Bottle.
Medication Bottle Cap
Medication Bottle
Stores the medication.
Medication Bottle Disengaging Button
Medication Bottle can be removed when the Buttons
on both sides of the Medication Bottle are pressed.
Electrode
Connects the Main Unit and the Power Source.
Electrode
Supplies the power
to the Main Unit.
Power Indicator
A green lamp turns on when the power is on.
A figure viewed
from the rear
A figure viewed
from the rear
* Actual power plug may not be
the same as illustration.
EN-p2-20-(NE-U22)-3 3/25/02 4:48 PM Page 5

Omron Micro A-I-R NE-U22 Specifications

Power

power source	3 VDC (two AA alkaline batteries), 2.4 VDC (two AA nickel-hydrogen batteries)
power consumption	1.5 W

Technical Specifications

ultrasonic frequency	180 kHz
nebulization rate	0.25 ml / minute or more
particle size	5 µm

Capacity and Dimensions

medication bottle capacity	7 ml
external dimensions	38 (W) x 104 (H) x 51 (D) mm
weight	97 g

Battery and Operating Life

battery life with continuous nebulization	4 hours
battery life with daily use	8 days
operating temperature	10 to 40°C
