Omron Micro A-I-R NE-U22 User Manual

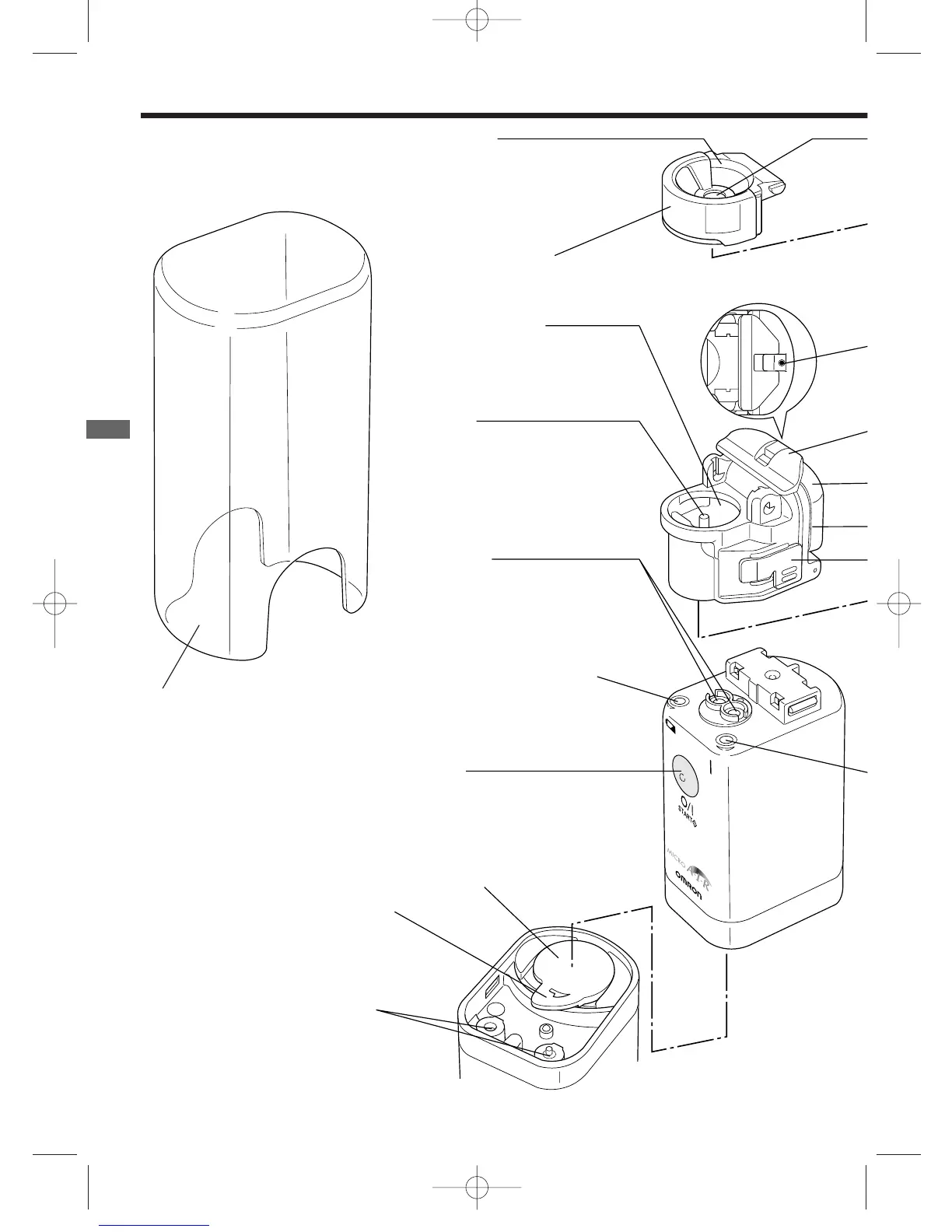

Names and Functions of the Parts
4
Before Using the UnitNames and Functions of the Parts
Main Unit Cover
Used for storing or
carrying the unit.
Mesh Cap
An alloy mesh is installed for
nebulization.
- Mesh Cap is consumable.
Mesh Cap Cover
Protects the Mesh.
Medication Port
Fill the medication by
opening the Mesh Cap.
Vibrator
The tip of this Vibrator
vibrates at high frequency
and pushes out medication
from the pores of Mesh.
Electrode
A contact point connecting
the Main Unit and the
Medication Bottle.
Battery Low Indicator
An orange light flashes
when the batteries are worn.
Button
Turns on and off the power
with a push of the Button.
Battery Cover
Disengaging Lever
Opens and closes
the Battery Cover.
AC Adapter Jack
to Electrode
Connects the Main
Unit and AC Adapter.
Battery Cover
A figure viewed
from the above
A figure viewed
from the rear
EN-p2-20-(NE-U22)-3 3/25/02 4:48 PM Page 4

Omron Micro A-I-R NE-U22 Specifications

Power

power source	3 VDC (two AA alkaline batteries), 2.4 VDC (two AA nickel-hydrogen batteries)
power consumption	1.5 W

Technical Specifications

ultrasonic frequency	180 kHz
nebulization rate	0.25 ml / minute or more
particle size	5 µm

Capacity and Dimensions

medication bottle capacity	7 ml
external dimensions	38 (W) x 104 (H) x 51 (D) mm
weight	97 g

Battery and Operating Life

battery life with continuous nebulization	4 hours
battery life with daily use	8 days
operating temperature	10 to 40°C
