Omron Micro A-I-R NE-U22 User Manual

7
Before Using the Unit

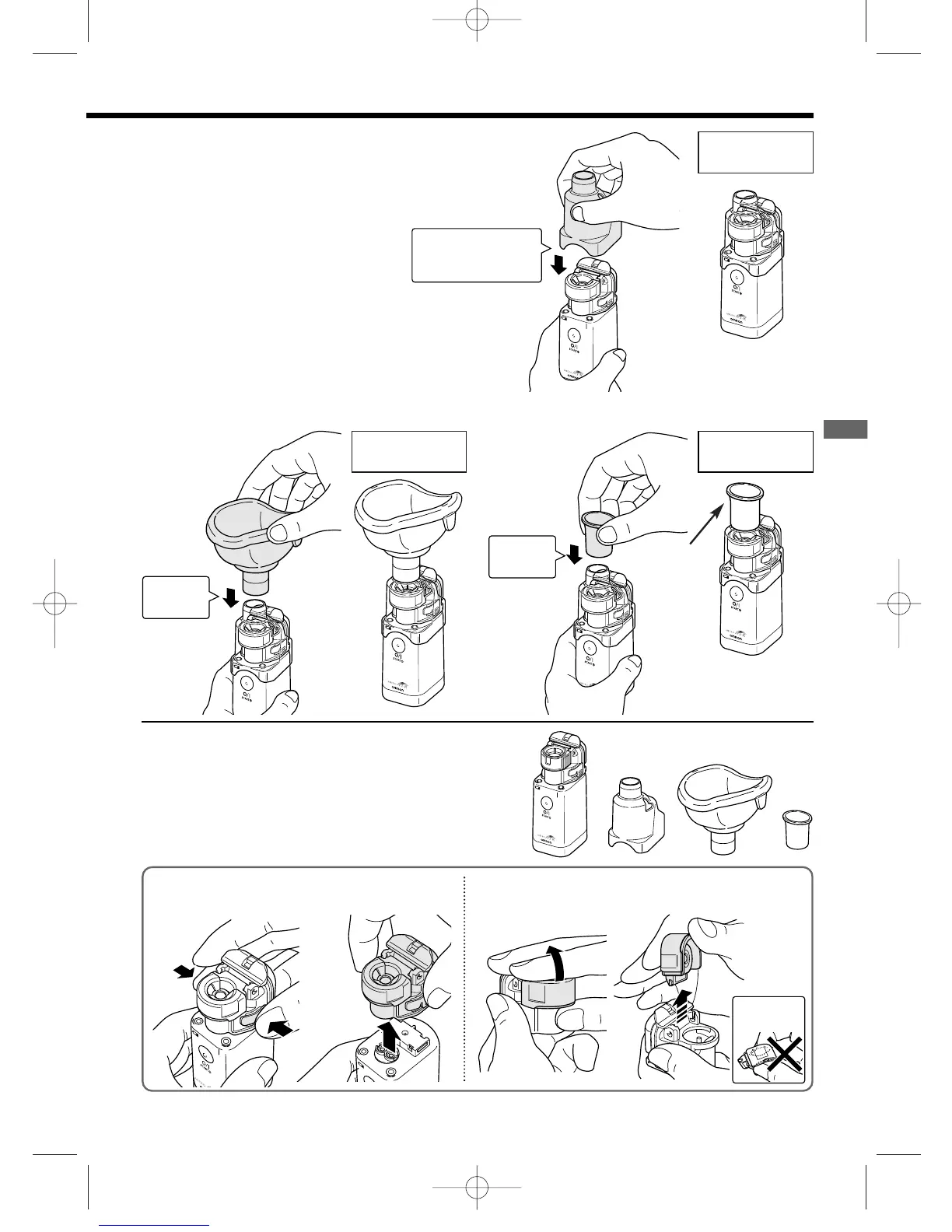

How to Assemble the Main Unit
3 Install the Mask Adapter
to the Main Unit.
Install the Mouthpiece or
the Inhalation Mask (S) or
(L) to the Mask Adapter.
If you are not going to use the unit soon after it is
assembled.
Remove the supplied Mask Adapter and Mouthpiece,
or Inhalation Mask as shown in the Figure.
Store the unit in the supplied Storage Bag or in a
clean place.
■ How to install the Inhalation Mask (S)
■ How to install the Mouthpiece
Installation is
complete.
Installation is
complete.
Installation is
complete.
Securely cover the
Main Unit with the
Mask Adapter.
Insert the
Inhalation
Mask as far
as it goes.
Insert the
Mouthpiece
as far as it
goes.
End of the
Mouthpiece
with larger
diameter is
on the top.
To remove the Medication
Bottle from the Main Unit
To removie the Mesh Cap from
the Medication Bottle
Do not insert your
finger into the
Nebulization Port.
EN-p2-20-(NE-U22)-3 3/25/02 4:48 PM Page 7

Omron Micro A-I-R NE-U22 Specifications

Power

power source	3 VDC (two AA alkaline batteries), 2.4 VDC (two AA nickel-hydrogen batteries)
power consumption	1.5 W

Technical Specifications

ultrasonic frequency	180 kHz
nebulization rate	0.25 ml / minute or more
particle size	5 µm

Capacity and Dimensions

medication bottle capacity	7 ml
external dimensions	38 (W) x 104 (H) x 51 (D) mm
weight	97 g

Battery and Operating Life

battery life with continuous nebulization	4 hours
battery life with daily use	8 days
operating temperature	10 to 40°C
