1. -ESH #AP
Contains metal alloy mesh for
nebulization.
2. .EBULIZATION PORT
.EBULIZED MEDICATION EXITS HERE
3. -ESH #AP #OVER
Protects the mesh.
4. -ESH
Efficient nebulization is realized through
the use of minute pores.
Do not touch this fragile part with your
fingers!
Do not attempt to clean with a cotton
swab or a pin!
5. !IR PORT
Stabilizes nebulization.
6. -EDICATION 0ORT
Medication can be filled here by opening
the mesh cap.
7. Vibrator
The tip of this vibrator oscillates at high
frequency and pushes the medication
through the pores of the mesh.
8. -EDICATION CONTAINER CAP LOCKING LEVER
Opens the medication container cap.
9. -EDICATION CONTAINER CAP
To be opened for cleaning the medication
container.
1
2
4
3
5
6
8
7
9
10
11
15
12
13
16
14
17

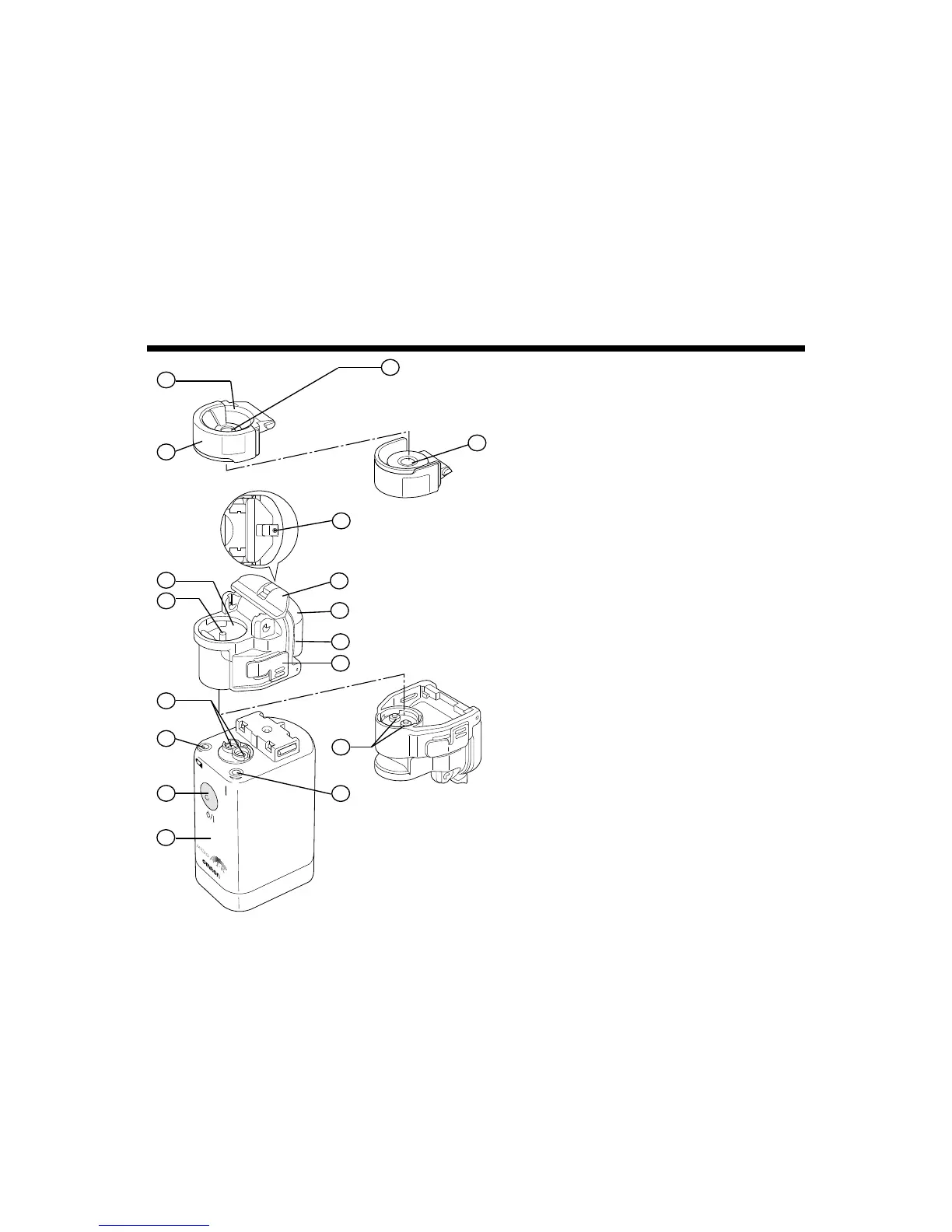

Figure viewed from the above
Mesh cap viewed from
the bottom
Viewed from the bottom
.AMES AND FUNCTIONS OF THE PARTS
