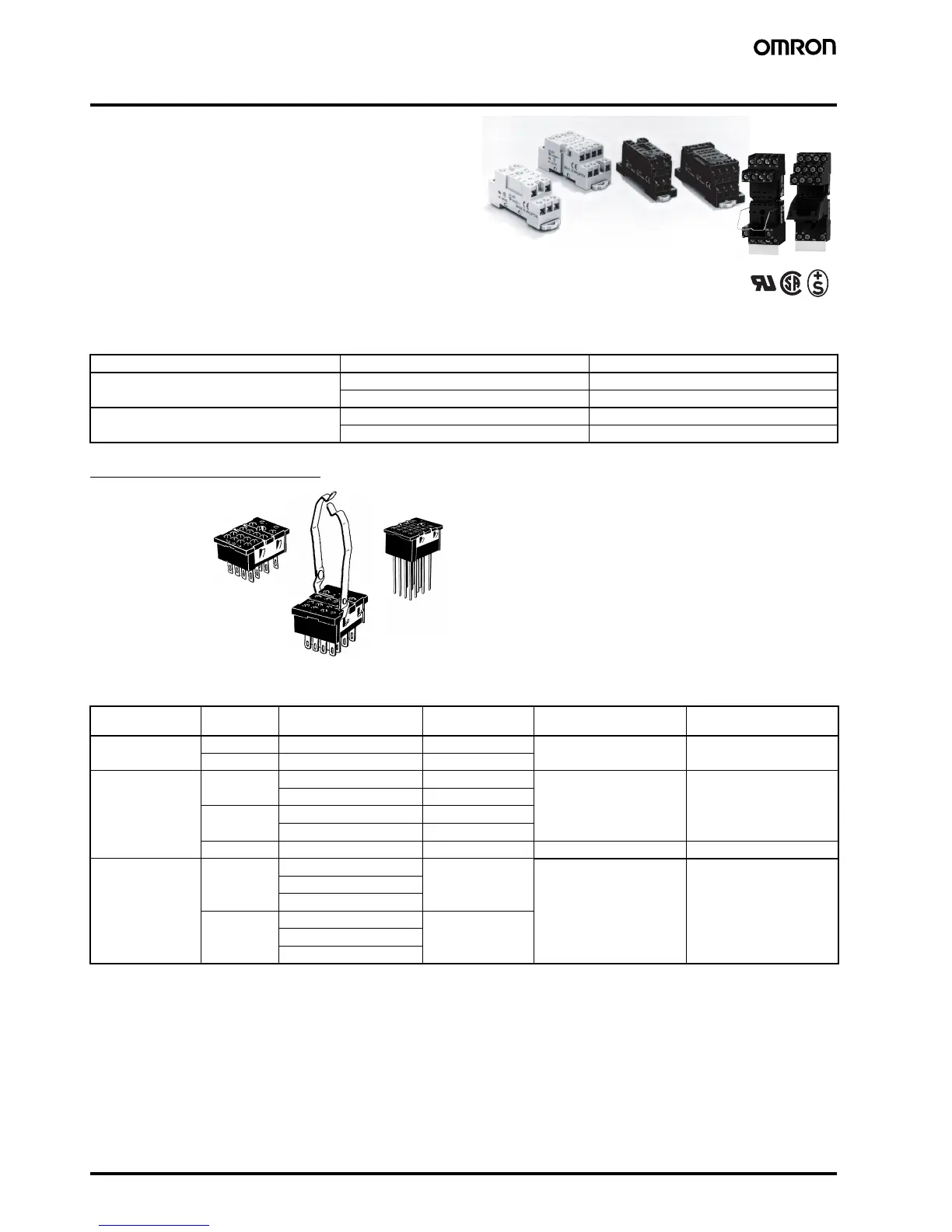

10 General-purpose Relay MY New model
Socket for MY
Track-mounted (DIN Track) Socket
Conforms to VDE 0106, Part 100
• Snap into position along continuous sections of any mount-
ing track.
• Facilitates sheet metal design by standardized mounting di-
mensions.
• Design with sufficient dielectric separation between termi-
nals eliminates the need of any insulating sheet.
■ Safety Standards for Sockets
Back-connecting Sockets
■ Specifications
Note: 1. The values given above are initial values.
2. The values for insulation resistance were measured at 500 V at the same place as the dielectric strength.
3. The maximum operating ambient temperature for the PYF08A-N and PYF14A-N is 55°C.
4. When using the PYF08A-N or PYF14A-N at an operating ambient temperature exceeding 40°C, reduce the current to 60%.
5. The MY2(S) can be used at 70°C with a carry current of 7 A.
Model Standards File No.
PYF08A-E, PYF08A-N
PYF14A-E, PYF14A-N
UL508 E87929
CSA22.2 LR31928
PYF14-ESN,
PYF14-ESS
UL508 E244189
CSA22.2 LR225761
Item Pole Model Carry current Dielectric withstand
voltage
Insulation resistance
(see note 2)
Screwless Clamp
Terminal Socket
2 PYF08S 10 A 2,000 VAC, 1 min Less than 1,000 MΩ
4 PYF14S 5 A
Track-mounted
Socket
2 PYF08A-E 7 A 2,000 VAC, 1 min 1,000 MΩ min.
PYF08A-N (see note 3) 7 A (see note 4)
4 PYF14A-E 5 A
PYF14A-N (see note 3) 5 A (see note 4)
4 PYF14-ESN/-ESS 12 A > 3 kV > 5 MΩ
Back-connecting
Socket
2 PY08(-Y1) 7 A 1,500 VAC, 1 min 100 MΩ min.
PY08QN(-Y1)
PY08-02
4 PY14(-Y1) 3 A
PY14QN(-Y1)
PY14-02
