Omron MY - Page 14

14 General-purpose Relay MY New model
Note: Use a panel with plate thickness of 1 to 2 mm for mounting the Sockets.

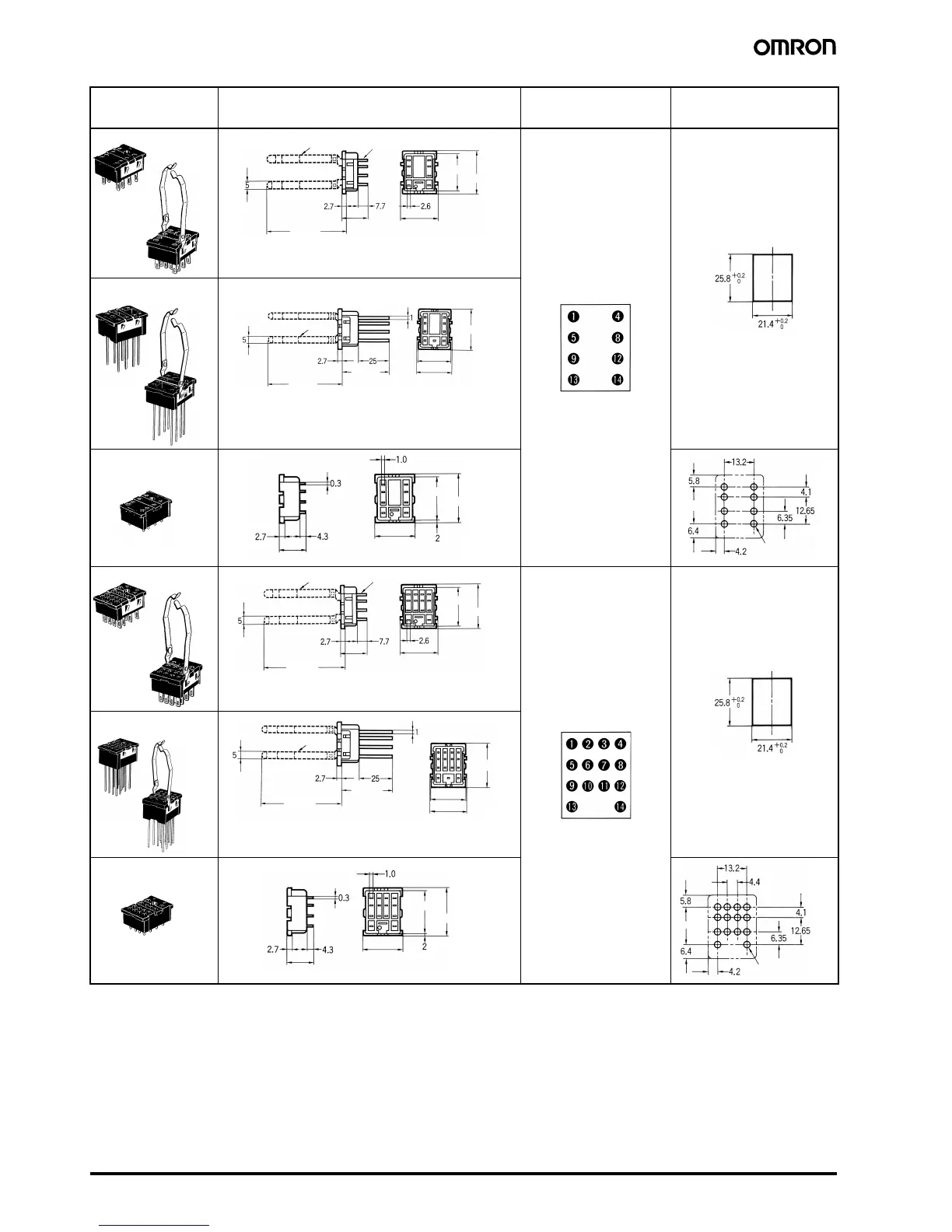

Socket Dimensions Terminal arrangement/
Internal connections
(bottom view)
Mounting holes
PY08/PY08-Y1
(See note) Eight, 3 x 1.2 elliptical holes
25.5 max.
29.5 max.
24 max.
42 max.
Note: The PY08-Y1 includes sections indicated by
dotted lines.
20 max.
PY08QN/
PY08QN-Y1
(See note)
29.5 max.
22 max.
24 max.
41.5 max.
42 max.
Note: The PY08QN-Y1 includes sections
indicated b
y
dotted lines.
PY08-02
16.5 max.
22 max.
25.5 max.
29.5 max.
Eight, 1.3-dia.
holes
PY14/PY14-Y1
(See note) Fourteen, 3 x 1.2 elliptical holes
25.5 max.
29.5 max.
24 max.
42 max.
Note: The PY14-Y1 includes sections indicated by
dotted lines.
20 max.
PY14QN/
PY14QN-Y1
(See note)
29.5 max.
22 max.
24 max.
41.5 max.
42 max.
Note: The PY14QN-Y1 includes sections
indicated b
y
dotted lines.
PY14-02
16.5 max.
22 max.
25.5 max.
29.5 max.
Fourteen, 1.3-dia.
holes
