The [5 Fully Open] screen will be displayed when the lower limit LS is ON.
Configure functions below:
• Fixed text indicating the garage door state.
• Bit Button components to block the inputs from vehicle sensors to prevent the garage door from
closing automatically.
• Bit Button components, allocated to [Open], [Stop] and [Close] garage door operations respectively.

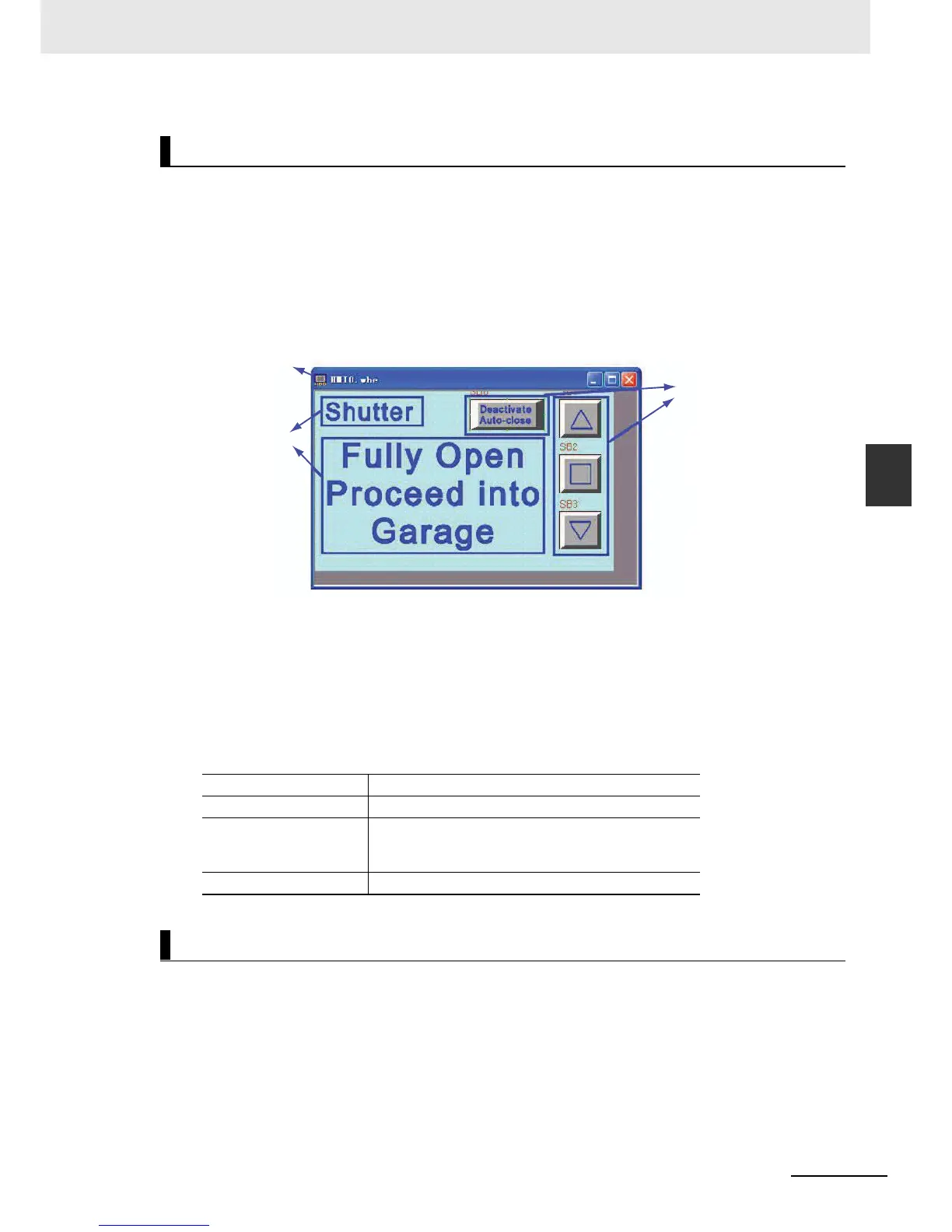

The whole screen is shown below. The creating methods for fixed text and Bit Button components for
[Open], [Stop] and [Close] garage door operations are the same as that of [1 Wait].
a Screen b Fixed Texts c Bit Button components
z Bit Button Components
Function: Block inputs from vehicle sensors. W_bit0.01 turns ON and the input CIO_bit0.03 from
vehicle sensors is blocked after the component is pressed. Herein, the garage door is to be closed
through manual operations on Function Keys. W_bit0.01 will turn OFF when the garage door is
closed and the lower limit LS turns ON.
The property settings are:
The [6 Check 1] screen will be displayed when the maintenance button on [1 WAIT] screen is pressed.
Configure functions below:
• Fixed text indicating the garage door state.
• The Bit Lamp components activating relevant lamp when the vehicle sensor, light sensor, upper limit
LS or lower limit LS turns ON.
• Function Key components, buttons for switching to [1 Wait] and [7 Check 2] screens.
• Bit Button components, allocated to [Open], [Stop] and [Close] garage door operations respectively.
[5 Fully Open]
Write Address W_bit0.01
Bit Button Type On
Label Transport font:
0: Deactivate Auto-close
1: Deactivate Auto-close
Graphics Use the vector graphic: CTRL_BAR001.vg
[6 Check 1]
a
b
c
