Omron NS - Page 19

Advanced Industrial Automation
19

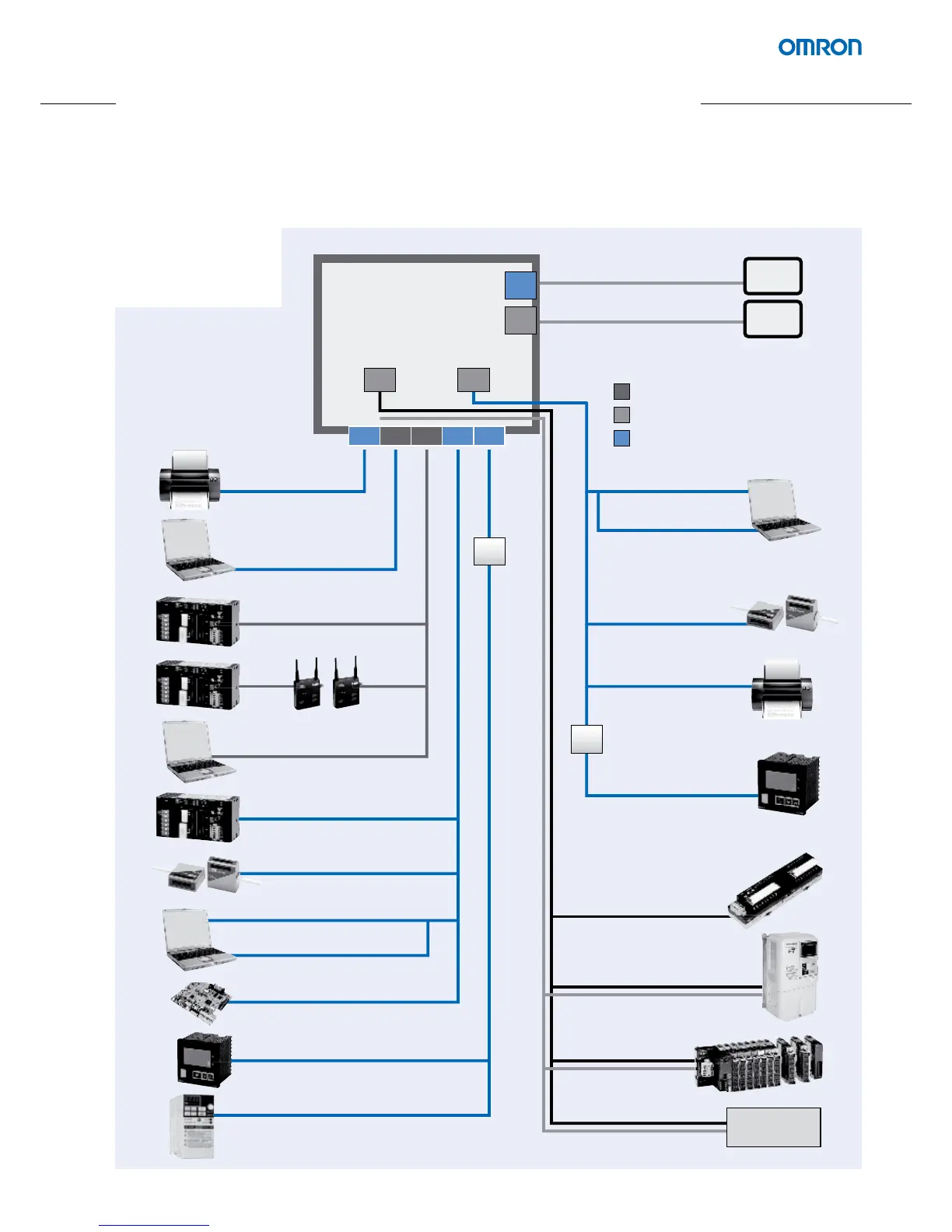

NS-series HMI:
Outstanding connectivity
USB host
USB slave
Ethernet
RS-232C port A
RS-232C port B
PROFIBUS
DeviceNet
RS-422A/485 conversion unit
CJ1W-CIF11 (~50m)
NS-AL002 (~500m)
DeviceNet or
PROFIBUS
RS-232C
Port C
Memory card interface
(Controller part)
Memory card interface
(Display part)
(Picture represents backside of a SYSMAC One unit)
For screen captures, recipes and
saving data log, etc.
For application back up and
saving PLC data, etc.
USB Host cable (for printer)
NS-US22 (2m)
NS-US52 (5m)
General purpose USB cable
RS-232C, NS-PLC connection cable
XW2Z-200T (2m)
XW2Z-500T (5m)
Barcode reader
RS-232C, DOS/V transfer cable
XW2Z-S002 (2m)
USB, serial conversion cable
CS1W-CIF31
Memory link, single board Computer, etc.
CompoWay/F(direct serial connection to HMI)
Inverter
RS-422A/485
Printer
PC
PLC
PLC
PC
PLC
PC
Temperature controller, E5_N, EJ1, etc.
Wireless
WE70
RS-232C, DOS/V transfer cable
XW2Z-S002 (2m)
USB serial conversion cable
CS1W-CIF31
PC
Barcode reader
Printer
Temperature controller
E5_N, EJ1, etc.
I/O terminals
Inverters
CIMR-V7/F7, etc.
GRT1 series
SmartSlice I/O
Other company´s equipments
RS-422A/485 conversion unit
CJ1W-CIF11
NS-AL002
Serial
Serial
Single connection port on NS and SYSMAC One series
Only available on SYSMAC One series
Available for NS HMI functions on NS and
SYSMAC One series
CF
CF
non-Omron
equipment
M
any o
f
equ
i
pment can
b
e
connected to the NS HMI and
Sysmac One Series in addition
to the variety of highly
compatible OMRON control
components.
19NS SERIES
