4 - 25
4 Installation and Wiring
NX-series Position Interface Units User’s Manual (W524)
4-3 Wiring the Terminals
4
4-3-1 Wiring to the Screwless Clamping Terminal Blocks
 Removing Wires
Use the following procedure to remove wires from the terminal block.
The removal process is the same for both ferrules and twisted/solid wires.

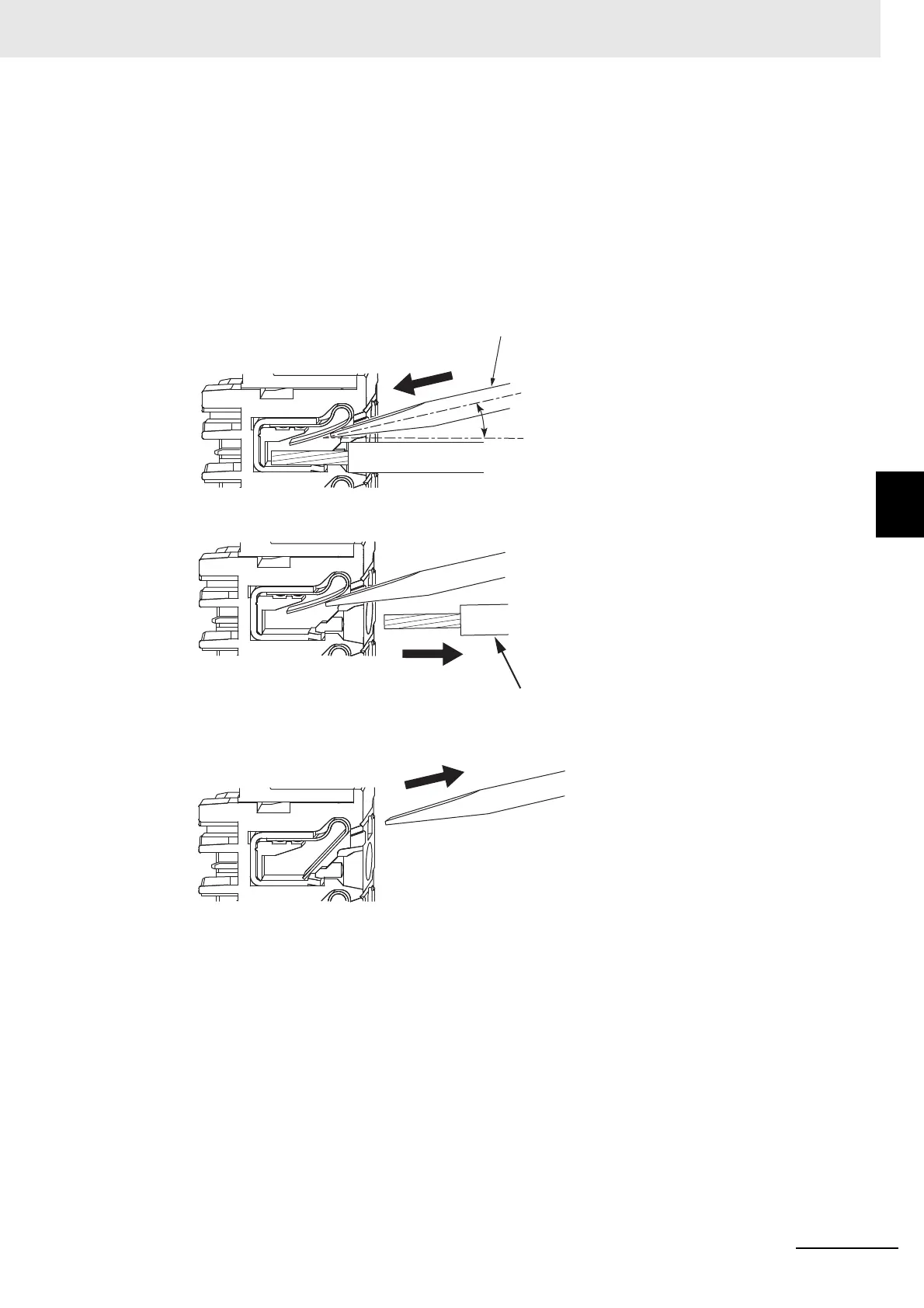

1 Press the flat-blade screwdriver diagonally into the release hole.
The optimal angle for insertion is between 10° to 15°.
If the screwdriver is inserted correctly, you should feel resistance from the spring inside the
release hole.
2 Insert a flat-blade screwdriver into the release hole and remove the wire from the terminal hole.
3 Remove the flat-blade screwdriver from the release hole.
10° to 15°
Flat-blade screwdriver
1
Wire
2
3
