8 - 27
8 Pulse Output Units
NX-series Position Interface Units User’s Manual (W524)
8-7 I/O Refreshing Method Setting
8
8-7-3 Task Period Prioritized Refreshing
Use the following procedure to select Enabled (DC with priority in cycle time) from the Enable Distrib-
uted Clock setting for the EtherCAT Coupler Unit and use task period prioritized refreshing for Pulse
Output Units connected to an EtherCAT Coupler Unit.

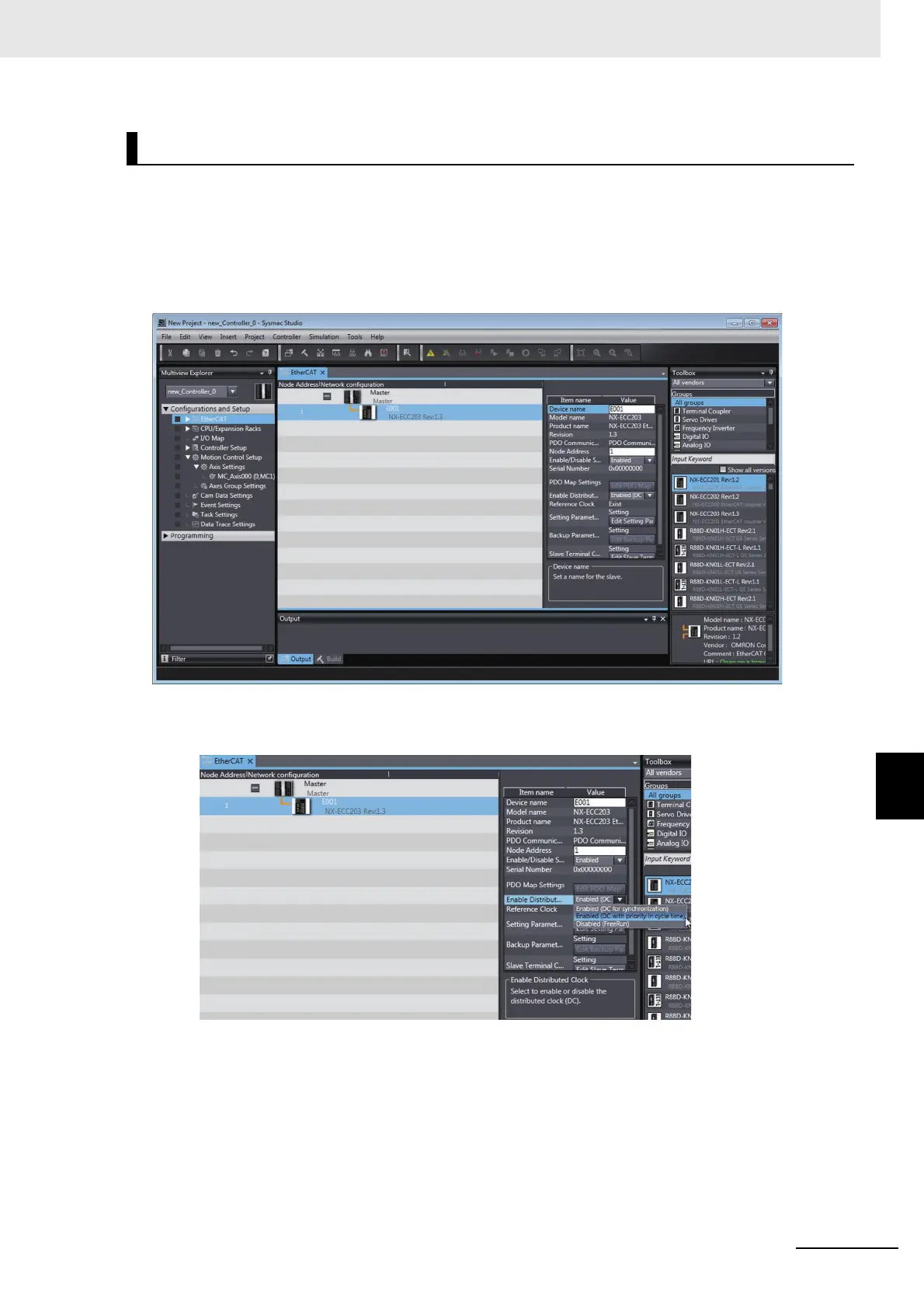

1 Double-click EtherCAT in the Multiview Explorer.
The following tab page is displayed.
2 Click the EtherCAT Coupler Unit under Configurations and Setup.
Change the Enable Distributed Clock setting to Enabled (DC with priority in cycle time).
As a result, task period prioritized refreshing is used.
Setting with the Sysmac Studio
To Next Page
