4 Installation and Wiring
NX-series Position Interface Units User’s Manual (W524)
4-2 Connecting the Power Supply and Ground Wires
4
4-2-5 Wiring with Shielded Cables
NX-PG0112

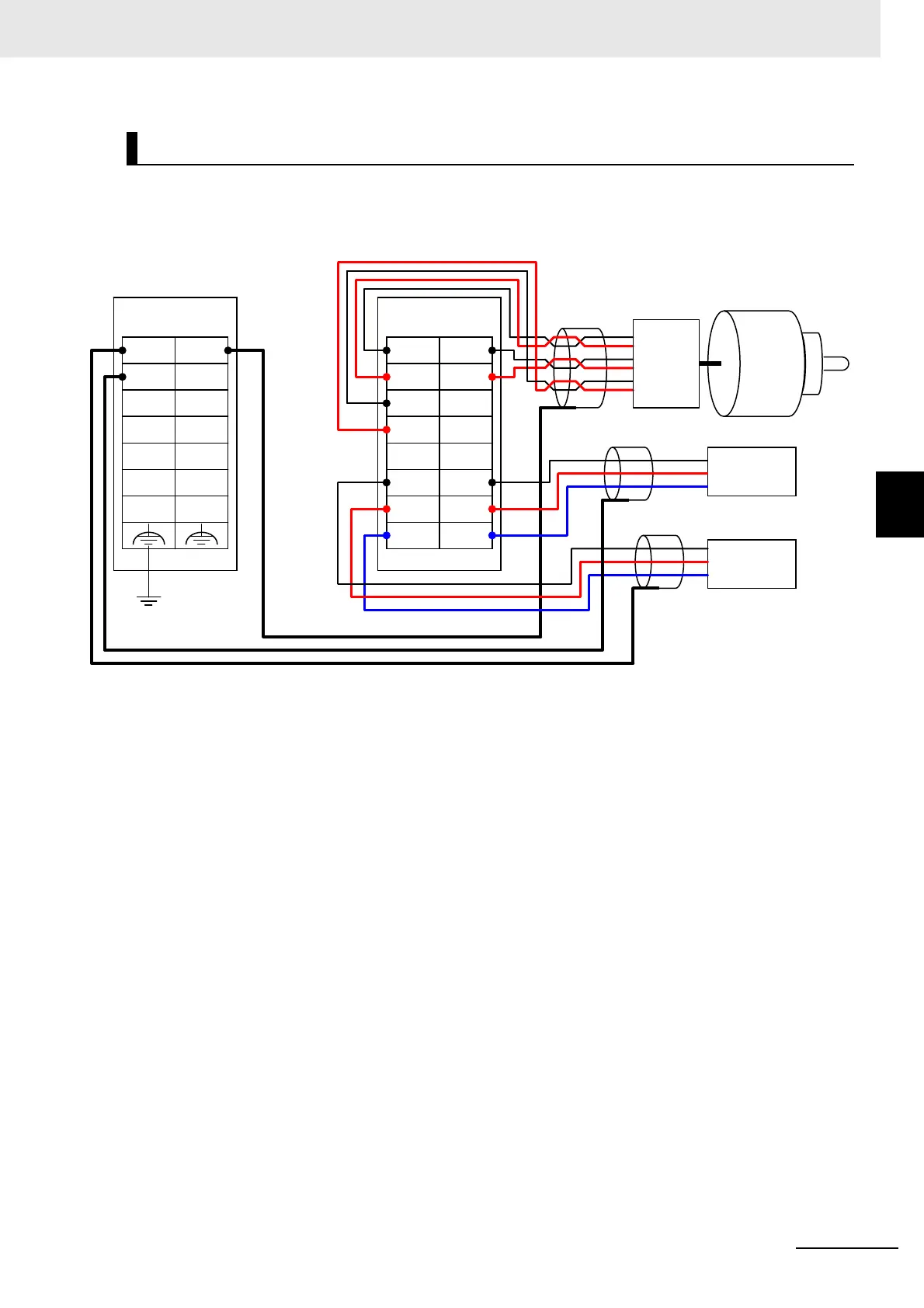

The following wiring example shows an NX-PG0112 Pulse Output Unit wired to a drive with a
shielded cable. The shield is connected to the Shield Connection Unit (NX-TBX01).
Note The pulse output from an NX-PG0112 Pulse Output Unit is a 24-VDC NPN output. Refer to 8-6 Terminal
Block Arrangement on page 8-14 for information on wiring drives.
Wiring Example for Pulse Output Units
Shield
Connection Unit
Pulse Output Unit
Shield
Stepper motor
Sensor
Sensor
Shield
Shield
Drive
Ground to
100 Ω or less.
SHLD SHLD
SHLD
SHLD
SHLD
SHLD
SHLD
SHLD
SHLD
SHLD
SHLD
SHLD
SHLD
SHLD
IOV
AB
IOV
NC
IOV
NC
I1
IOV
IOG
O0
IOV
NC
I0
IOV
IOG
To Next Page
