4 - 5
4 System Design
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications
4-1 Installation Conditions
4

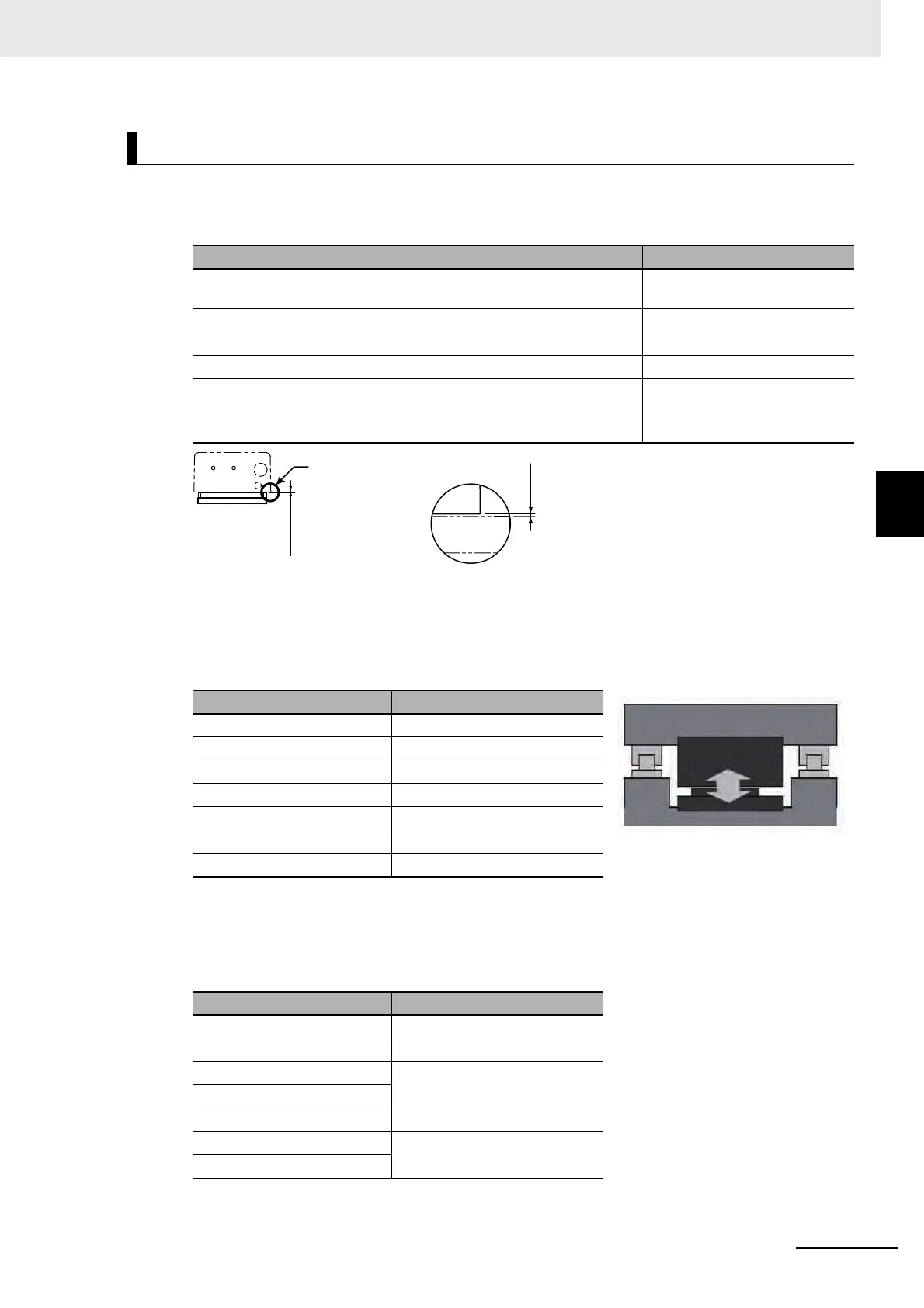

4-1-2 Iron-core Linear Motor Installation Conditions
z Mechanical Tolerance
Design and install a Linear Motor system that meets the following requirements.
z Magnetic Attraction Force
In the Linear Motor, a magnetic attraction force is exerted between the Motor Coil Unit and the
Magnet Track, which (calculated value) is shown in the table below.
Design a system with consideration of the magnetic attraction force.
z Thermal Conductivity of Motor Coil Unit
• The Motor Coil Unit becomes hot during operation. For the Motor Coil Unit, install a moving table
(radiator plate) of the recommended dimensions or larger to provide sufficient heat dissipation into
the moving table and air.
• Make sure that there is a thermal contact between the Motor Coil Unit and the moving table. To
provide good heat dissipation, apply thermal conductive silicon.
Installation and Design Conditions
Item Tolerance
Flatness of Motor Coil Unit mounting surface 0.1 mm across the entire length
of Motor Coil Unit
Flatness of Magnet Track mounting surface 0.1 mm/m
Accumulative pitch error of Magnet Track mounting screws ±0.2 mm
Parallelism between Motor Coil Unit and Magnet Track mounting surfaces 0.2 mm/m
Center position of Motor Coil Unit and Magnet Track 0.5 mm across the entire length
of Motor Coil Unit
Distance between Motor Coil Unit and Magnet Track 0.3 mm ± 0.1 mm
Motor Coil Unit model Magnetic attraction force [N]
R88L-EC-FW-0303-ANPC 300
R88L-EC-FW-0306-ANPC 500
R88L-EC-FW-0606-ANPC 1,020
R88L-EC-FW-0609-ANPC 1,420
R88L-EC-FW-0612-ANPC 1,820
R88L-EC-FW-1112-ANPC 3,640
R88L-EC-FW-1115-ANPC 4,440
Motor Coil Unit model Moving table dimensions
R88L-EC-FW-0303-ANPC 238 × 220 × 10
R88L-EC-FW-0306-ANPC
R88L-EC-FW-0606-ANPC 250 × 287 × 12
R88L-EC-FW-0609-ANPC
R88L-EC-FW-0612-ANPC
R88L-EC-FW-1112-ANPC 371 × 330 × 14
R88L-EC-FW-1115-ANPC
A
0.3±0.1
0.3±0.1
Enlarged view
of portion A
Magnet Track
Motor Coil Unit
