Omron R88D-KN30F-ECT-L User Manual

2 Models and External Dimensions
2 - 14
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications
z Wall Mounting

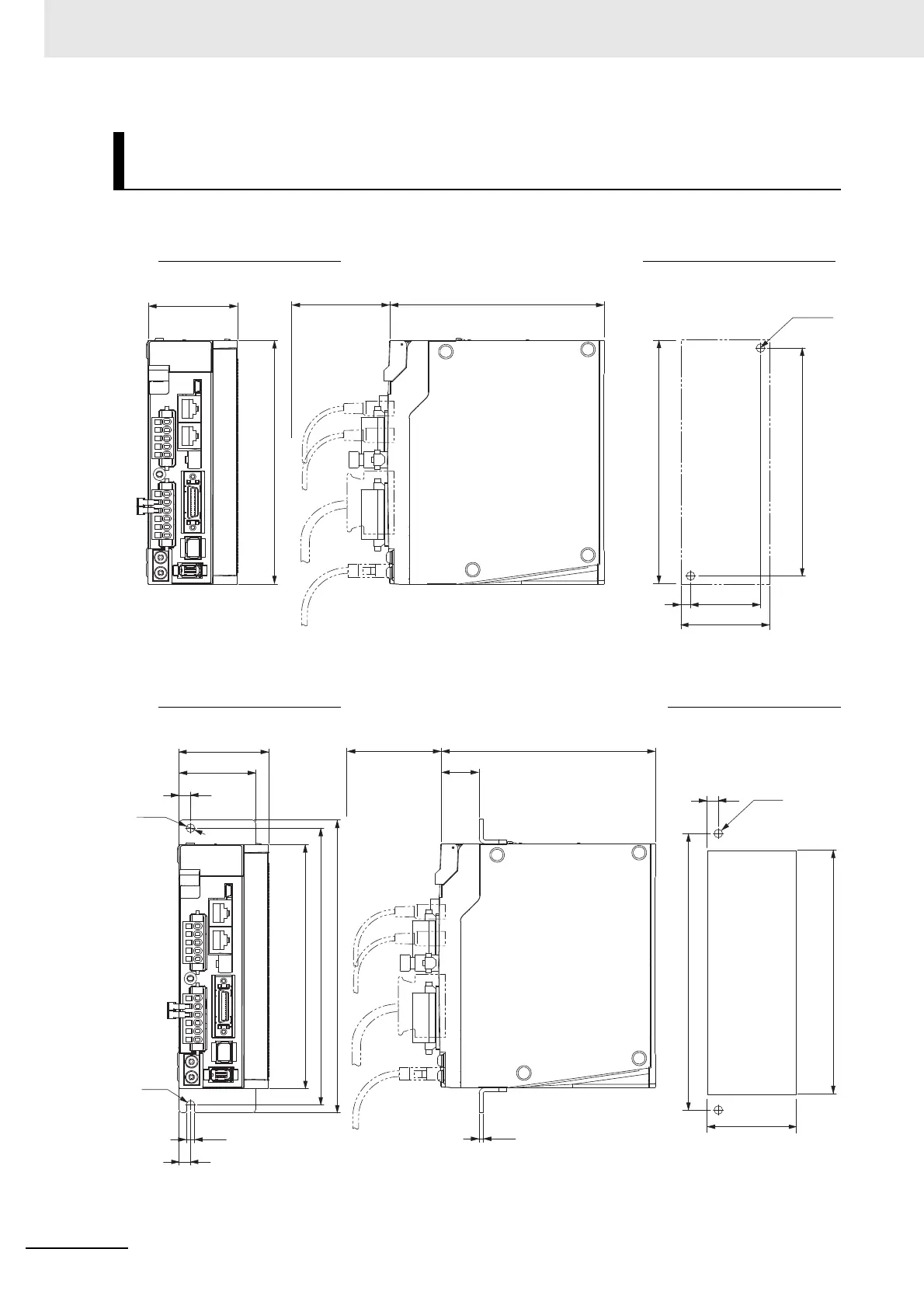

External dimensions Mounting dimensions
z Front Mounting (Using Front Mounting Brackets)
External dimensions Mounting dimensions
Single-phase 100 VAC: R88D-KN02L-ECT-L (200 W)
Single-phase/3-phase 200 VAC: R88D-KN04H-ECT-L (400 W)
55
150
132
150
43
6
55
140
70
2-M4
55
47
7
Ø5.2
180 170 150
7
5.2
R2.6
2.5
132
19.5
7
170
70
2-M4
(57)*
(158)*
Rectangular
hole
* Rectangular hole dimensions are reference values.
