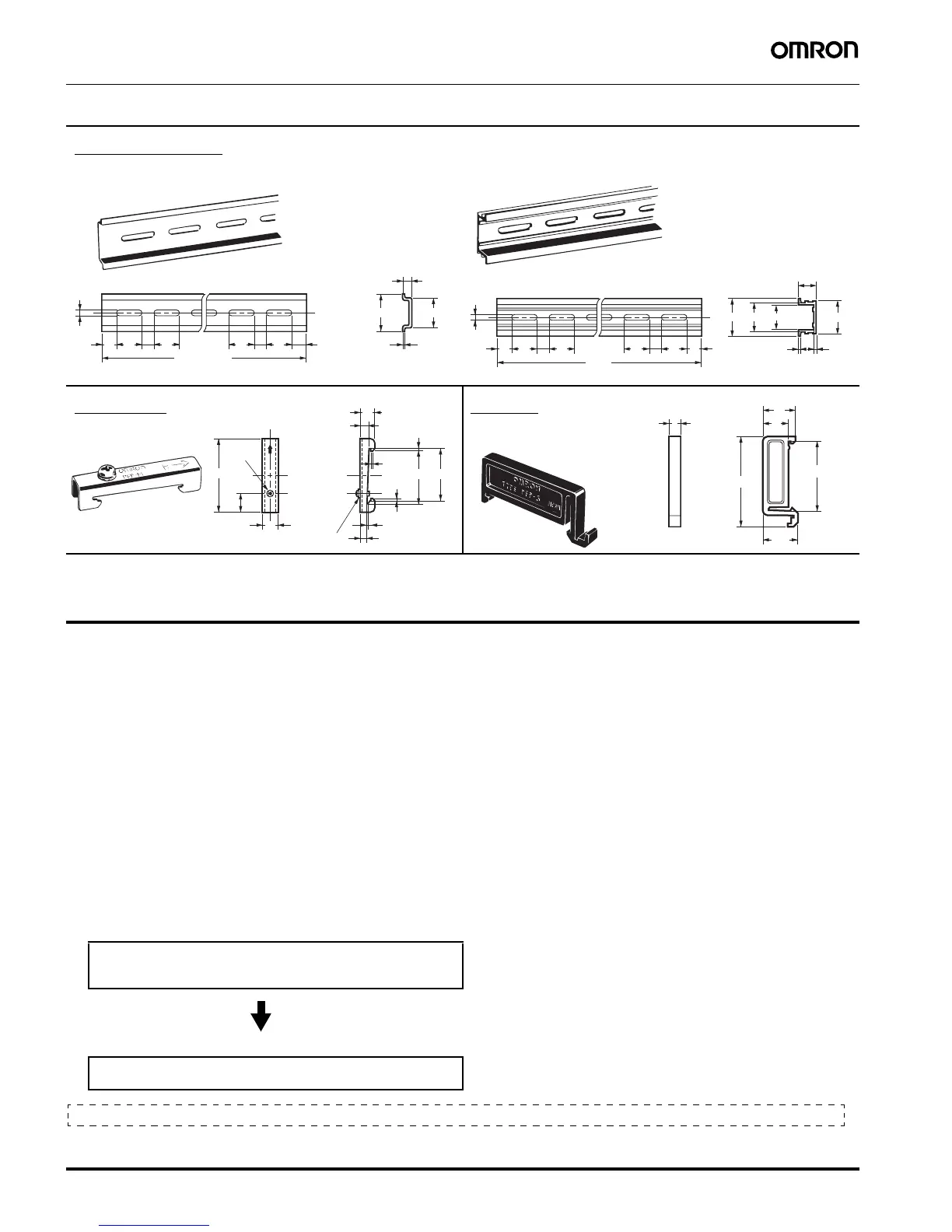

28 Programmable Relay ZEN V2 Units
■ Track Mounting Accessories (Order Separately)
Precautions when Selecting ZEN Programmable Relays
■ Changes in Comparison with Previous Models
• The power supply and transistor output voltage ranges for CPU Units and Expansion I/O Units with DC power supply has been expanded to
10.8 to 28.8 VDC.
• The width of Expansion I/O Units has been reduced by half and only 8-point models are available.
• The connection method between the CPU Unit and Expansion I/O Units has changed.
• Twin timer operation has been added to timers.
• Multiple-day operation and pulse-output operation has been added to weekly timers.
• An 8-digit counter and 8-digit comparators have been added.
• The accuracy of analog inputs has been increased to
±1.5% FS.
• The timing accuracy of weekly timers and calendar timers has been increased to
±15 s or less per month (at 25°C).
• Australia and New Zealand Daylight Saving Time (DST) settings have been added.
• CPU Units with RS-485 communications and economic CPU Units have been added.
• The heat slits in the cases of CPU Units and Expansion I/O Units have been removed to prevent foreign matter from entering.
Model numbers have been changed to reflect the improved functionality.
Previous Model Numbers
New Model Numbers
1
35
±0.3
7.3
±0.15
27
±0.15
4.5
15 25 25
10
15 (5) *
10
25 25
* The numbers in
p
arentheses
()
are dimensions for the PFP-50N.
1,000 (500) *
Mounting Track
PFP-100N
PFP-50N
15 25 25
1,000
4.5
25 25 15
10
1
242735
±0.3
16
1.5
29.2
10
PFP-100N2
4.8
1.3
35.5 35.3
1.8
1
1.8
10
6.2
M4 spring washer
50
11.5
M4 × 8
pan-head
screw
10
End Plate
PFP-M
5
16
12
44.3
34.
8
16.5
Spacer
PFP-S
ZEN-@C@@@-@ (Pre-V1 CPU Units)
ZEN-@C@@@-@-V1 (V1 CPU Units)
ZEN-@E@@ (4E/8E-type Expansion I/O Units)
ZEN-@C@@@-@-V2 (V2 CPU Units)
ZEN-8E1@@ (8E1-type Expansion I/O Unit)
Memory Cassettes, Connecting Cables, and Battery Units have not been changed and can be used as they are with the new models.
