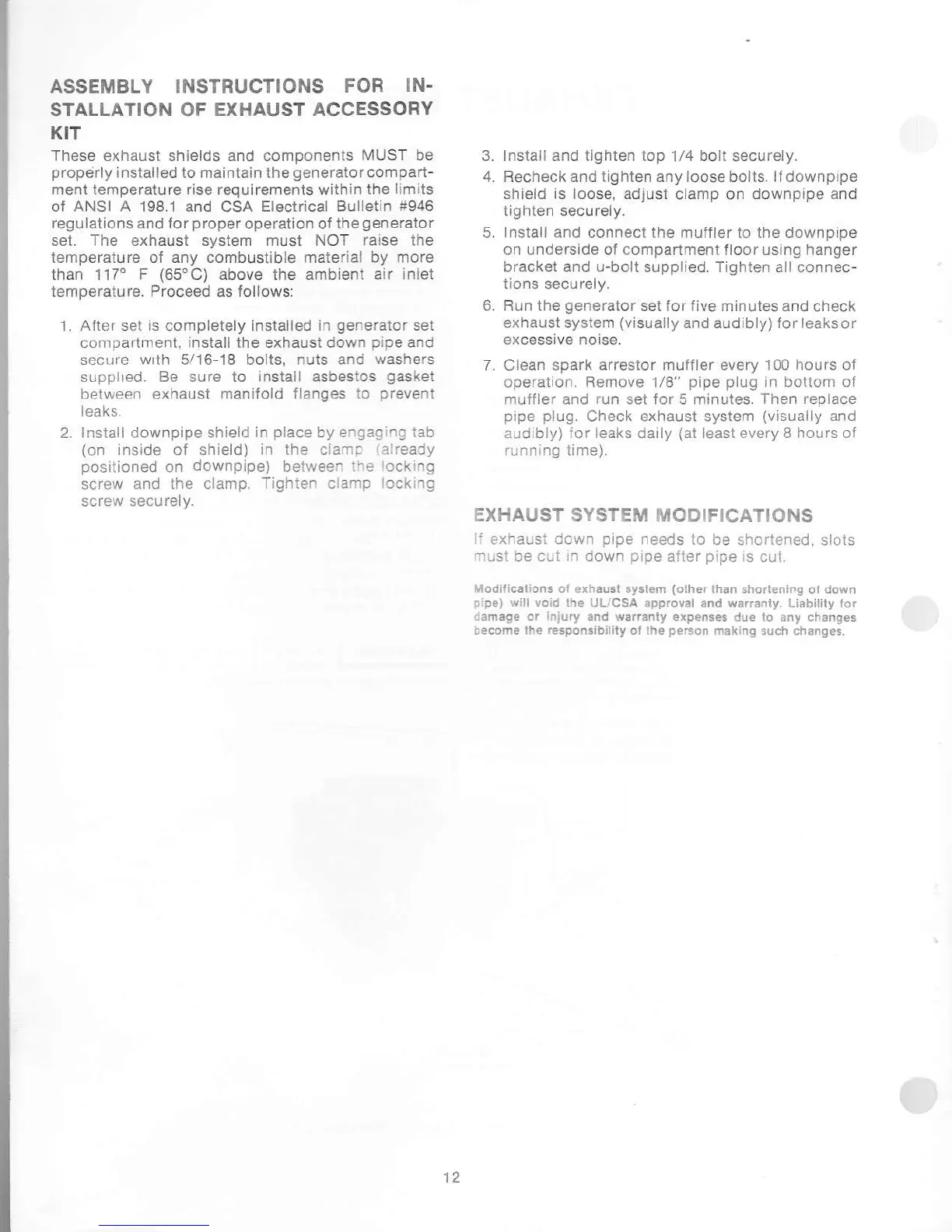

ASSEMBLY INSTRUCTIONS
FOR
IN.
STALLATION
OF
EXHAUST ACCESSORY
KIT
These exhaust shields and
componenls
I{UST be
properly
installed to maintain the
generatorcompart-
menl temperature ris€ requirements
within
the
limits
of ANSI A 198.1 and
CSA
Electrical Bulletin
#946
regulations
and for
proper
operation of the
generator
set. The
exhaust
system must NOT raise the
lemperature of any combustible material by more
than 117' F
(65"C)
above lhe ambient air
inlet
temperature.
Proceed
as tollows:
1.
After
set
rs
completely installed
in
generator
set
compartment,
install the exhaust down
pipe
and
secure wrlh 5/16-18 bolts, nuts and
washers
sLrpplred. Be sure to install asbestos
gaskei
between exhaust manifold
flanges lo
prevent
leaks
2. lnsiall downpipe shield
in
place
by
engaging iab
(on
inside
of
shield) in the clarnp
ralready
positioned
on
downprpe)
belween
the locking
screw
and the clamp.
Tighten clamp
locking
screw securely.
3. lnstail and tighten top
1/4
bolt
securely.
4. Recheck and tjghten any loose bolts. lf downpipe
shield is loose, adjust
clamp on
downpipe and
tighten securely.
5. lnstall and connect the mulfler to the downpipe
on underside of compartment floor using hanger
bracket and u-bolt supplied. Tighten all connec-
tions securely.
6. Run ihe
generator
set for five
minutes
and
check
exhaust system
(visua{ly
and audibly) for leaksor
excessive noise.
7. Clean spark
arrestor muffler every 100 hours of
operation. Remove 1/8"
pipe plug
in botlom ol
mulfler and
run
set for 5 minutes. Then
replace
pipe
plug.
Check exhaust system
(visually
and
audibly)
lor leaks daily
(al
least every I hours of
rLnning time).
EXHAUST
SYSTEM MODIFICATIONS
l'
exhaLrst down
pipe
needs to
be shortened. slots
r.lirst
be cut
in
down
prpe
after
pipe
is
cul.
Modilicalions ol erhausl syslem
{olher
lhan shorieninq
oi
down
Dipe)
will void lhe
UUCSA approval and wnranly. Liabilily
lor
camage or Inju.y and wadanly
erpen3es due lo any changes
becoBe lhe
responsibilily
ot rne
peBon
naking
such chanq$.
12
