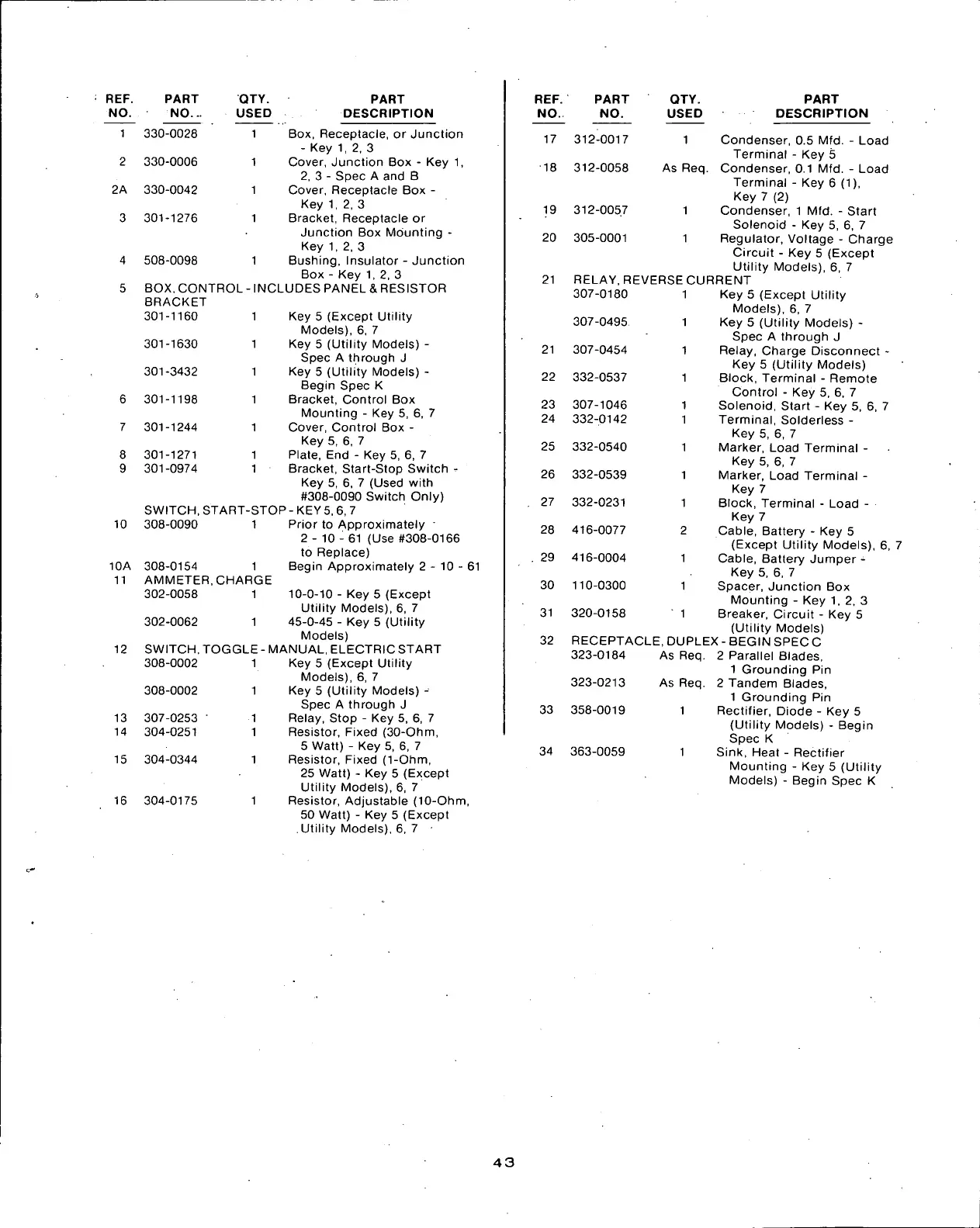

REF. PART QTY.
PART
NO.
NO...
USED
DESCRIPTION
1
330-0028
1
Box, Receptacle, or Junction
- Key 1, 2, 3
2
330-0006
1
Cover, Junction Box - Key 1,
2, 3 - Spec A and B
2A
330-0042
1
Cover, Receptacle Box -
Key 1,2, 3
3 301-1276 1
Bracket, Receptacle or
Junction Box Mounting -
Key 1, 2, 3
4
508-0098
1
Bushing, Insulator - Junction
Box - Key 1, 2, 3
5 BOX. CONTROL - INCLUDES PANEL & RESISTOR
BRACKET
301-1160
1
Key 5 (Except Utility
Models), 6, 7
301-1630
1
Key 5 (Utility Models) -
Spec A through J
301-3432 1 Key 5 (Utility Models) -
Begin Spec K
6
301-1198
1
Bracket, Control Box
Mounting - Key 5, 6, 7
7
301-1244
1
Cover, Control Box -
Key 5, 6, 7
8 301-1271
1
Plate, End - Key 5, 6, 7
9 301-0974
1
Bracket, Start-Stop Switch -
Key 5, 6, 7 (Used with
#308-0090 Switch Only)
SWITCH, START-STOP - KEY 5, 6, 7
10 308-0090
1
Prior to Approximately •
2-10-61 (Use #308-0166
to Replace)
10A 308-0154 1
Begin Approximately 2 - 10 -
11 AMMETER, CHARGE
302-0058
1
10-0-10 - Key 5 (Except
Utility Models), 6, 7
302-0062
1
45-0-45 - Key 5 (Utility
Models)
12
SWITCH, TOGGLE-MANUAL, ELECTRIC START
308-0002
1
Key 5 (Except Utility
Models), 6, 7
308-0002
1
Key 5 (Utility Models) -
Spec A through J
13 307-0253 '
1
Relay, Stop - Key 5, 6, 7
14
304-0251
1
Resistor, Fixed (30-Ohm,
5 Watt) - Key 5, 6, 7
15 304-0344
1
Resistor, Fixed (1-Ohm,
25 Watt) - Key 5 (Except
Utility Models), 6, 7
16 304-0175
1
Resistor, Adjustable (10-Ohm
REF. PART QTY. PART
NO. NO.
USED DESCRIPTION
17
312-0017
1
Condenser, 0.5 Mfd. - Load
Terminal - Key 5
•18 312-0058 As Req.
Condenser, 0.1 Mfd. - Load
Terminal - Key 6 (1),
Key 7 (2)
19
312-0057
1
Condenser, 1 Mfd. - Start
Solenoid - Key 5, 6, 7
20
305-0001 1
Regulator, Voltage - Charge
Circuit - Key 5 (Except
Utility Models), 6, 7
21
RELAY, REVERSE CURRENT
307-0180 1
Key 5 (Except Utility
Models), 6, 7
307-0495
1
Key 5 (Utility Models) -
Spec A through J
21 307-0454 1
Relay, Charge Disconnect -
Key 5 (Utility Models)
22 332-0537 1
Block, Terminal - Remote
Control - Key 5, 6, 7
23
307-1046 1
Solenoid, Start - Key 5, 6, 7
24
332-0142
1
Terminal, Solderless -
Key 5, 6, 7
25
332-0540 1
Marker, Load Terminal -
Key 5, 6, 7
26
332-0539
1
Marker, Load Terminal -
Key 7
27
332-0231
1
Block, Terminal - Load -
Key 7
28 416-0077
2
Cable, Battery - Key 5
(Except Utility Models), 6, 7
29 416-0004 1
Cable, Battery Jumper -
Key 5, 6, 7
30 110-0300 1
Spacer, Junction Box
Mounting - Key 1, 2, 3
31
320-0158
' 1
Breaker, Circuit - Key 5
(Utility Models)
32
33 358-0019
34 363-0059
RECEPTACLE, DUPLEX - BEGIN SPEC C
323-0184 As Req. 2 Parallel Blades,
1 Grounding Pin
323-0213 As Req. 2 Tandem Blades,
1 Grounding Pin
Rectifier, Diode - Key 5
(Utility Models) - Begin
Spec K
Sink, Heat - Rectifier
Mounting - Key 5 (Utility
Models) - Begin Spec K
1
1
50 Watt) - Key 5 (Except
Utility Models), 6, 7 •
43
