While holding in position, mount the starter, using
a hex head screw (4), lock washer (5), and two flat
washers (6) at each mou nting arm as shown in the
detail drawing A. Tighten the mounting screws
securely. Remove the nails.
6. The direction of pull on the starter rope is
adjustable to fit the requirements of the individual
installation. See detail B. To change the direction
of puli, loosen the four clamp screws {8} and turn
the starter in its mounting ring to the desired
position. Tighten thefourclampscrewssecurely.
Try the starter several times, making sure that the
pull rope will not rub against one of the clamp
screws.
7. Occasionally check the operation of the starter,
making sure the starter is properly centered (step
5 above). See that the blower housing mounting
screws are tight, if the blower housing tends to
shift, its mounting holes may have become wom
oversize. If the blower housing tends to weave or
distort during starter operation, installation of a
new housing is recommended.

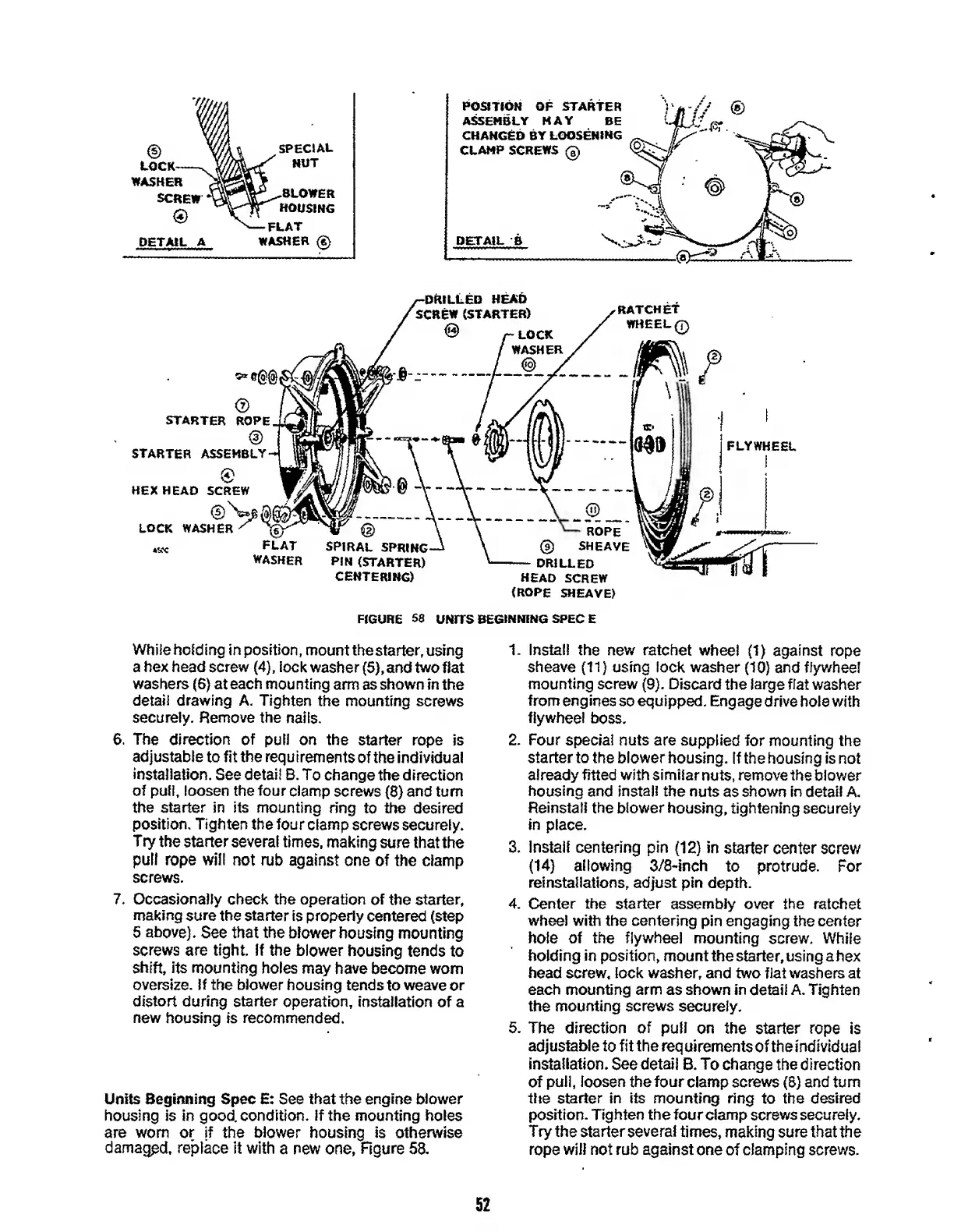

Units Beginning Spec E: See that the engine blower
housing is in good, condition, if the mounting holes
are wom or if the blower housing is otherwise
damaged, replace it with a new one, Figure 58.
1. Install the new ratchet wheel (1) against rope
sheave (11) using lock washer (10) and flywheel
mounting screw (9). Discard the large flat washer
from engines so equipped. Engage drive hole with
flywheel boss.
2. Four special nuts are supplied for mounting the
starter to the blower housing. If the housing is not
already fitted with similar nuts, remove the blower
housing and install the nuts as shown in detail A.
Reinstall the blower housing, tightening securely
in place.
3. Install centering pin (12) in starter center screw
(14) allowing 3/8-inch to protrude. For
reinstallations, adjust pin depth.
4. Center the starter assembly over the ratchet
wheel with the centering pin engaging the center
hole of the flywheel mounting screw. While
holding in position, mount the starter, using a hex
head screw, lock washer, and two flat washers at
each mounting arm as shown in detail A. Tighten
the mounting screws securely.
5. The direction of puli on the starter rope is
adjustable to fit the requirements of the individual
installation. See detail B. To change the direction
of pull, loosen the four clamp screws (8) and turn
the starter in its mounting ring to the desired
position. Tighten the four clamp screws securely.
Try the starter several times, making sure that the
rope will not rub against one of clamping screws.
52

Onan CCKA Specifications

General

Cylinders	2
Ignition System	Battery ignition
Engine Type	4-cycle
Bore	3.25 in (82.55 mm)
Power Output	Varies with model. e.g., 6.5 kW (CCK)
Horsepower	10 hp
Starter	Electric
