Onan Elite E140V User Manual

Y AIR CLEANER
Refer to the Periodic Maintenance Schedule for air
cleaner element wrapper and
air filter service and
replacement intervals. Service or replace more
often when operating the engine under severe
operating conditions.
Air Cleaner Foam Element Wrapper
With the engine stopped, remove the outer air
cleaner nut and plastic outer cover. When servicing
the foam wrapper only, do not remove the inner
air
cleaner nut and cover.
Remove and wash the foam wrapper in water and
detergent and squeeze it
dry like a sponge. Rinse
with clean water and allow it to dry. Coat the wrap-
per evenly with one tablespoon
(14 grams) of SAE
30 engine oil. Knead the oil into the wrapper and
wring out
the excess oil.
Failure to adequately wring out excess oil from the
wrapper may cause a drop in engine power due
to a
k.
Install the foam wrapper over the paper air cleaner
element by stretching it over the inner cover.
Com-
pletely cover all exposed paper pleats on the air
cleaner paper element.
If the foam wrapper has
stretched
or become torn, replace the foam
wrapper.
Air Cleaner Element
With the engine stopped, remove the outer air
cleaner nut and plastic outer cover. Wipe away
loose dirt and chaff from the
air cleaner assembly
and remove the inner air cleaner nut and inner air
cleaner cover. Remove the air filter paper element
and foam wrapper from the engine. Wipe
off excess
dirt from the air cleaner base.
Install the new paper element and secure with the
inner cover and inner mounting nut. Tighten the in-
ner nut one and a half turns after seating on the in-
ner cover. Service the foam wrapper perthe instruc-
tions given. Assemble the outer air cleaner cover
restriction
of inlet air.
and nut.
AIR CLEANER
S
INNER COVER
MOUNTING NUT
AIR CLEANER
ASSEMBLY BASE
OUTER COVER
MOUNTING NUT
CLEANER COVER
CLEANER COVER
M-lg203

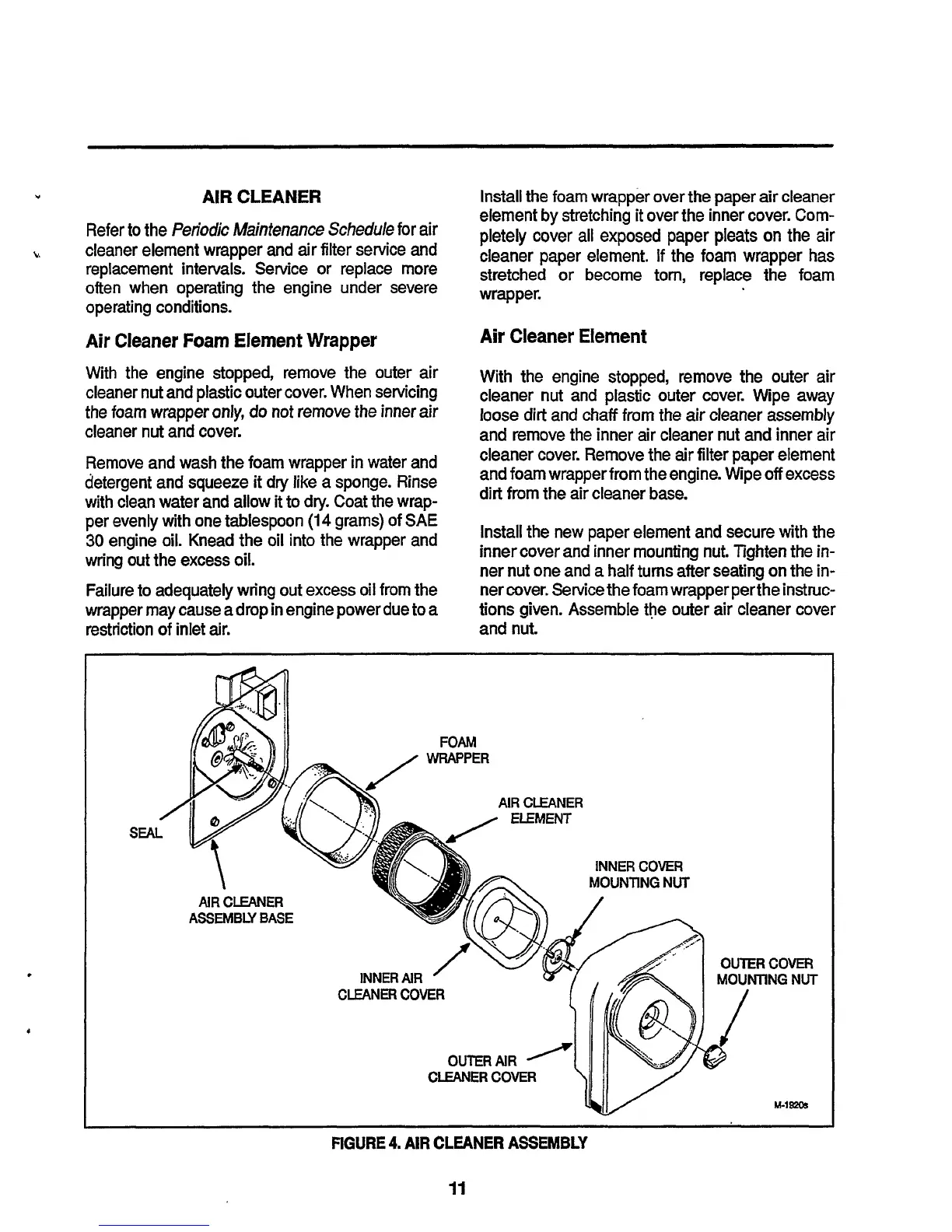

FIGURE 4. AIR CLEANER ASSEMBLY
11
