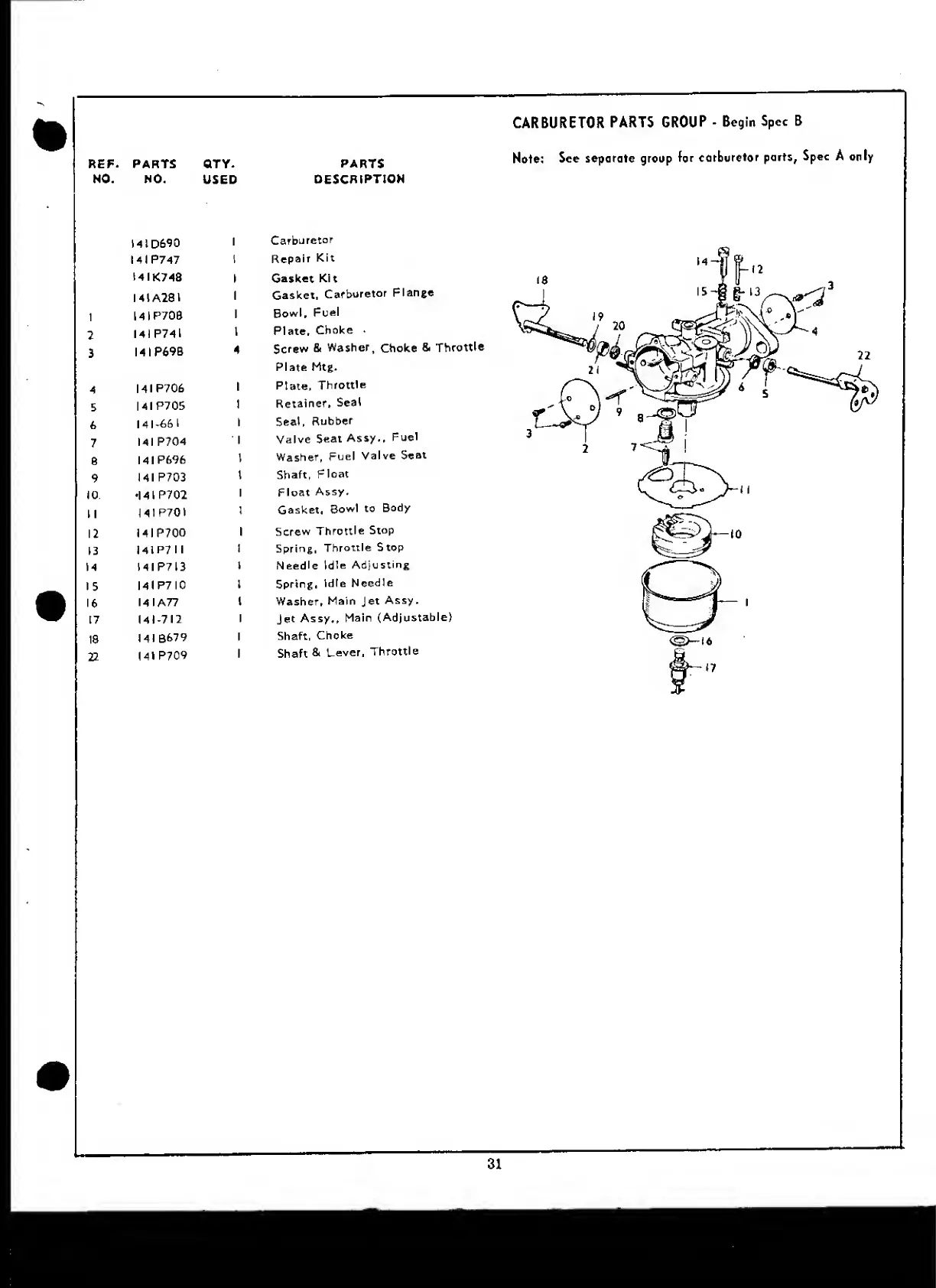

Onan MCCK - Page 32

CARBURETOR PARTS GROUP - Begin Spec
REF. PARTS QTY. PARTS
NO. NO.
USED
DESCRIPTION
I41D690
1
Carburetor
t A 1P747
1
Repair Kit
14IK748
1
Gasket Kit
I41A281
1
Gasket, Carburetor Flange
1
I4IP70B
1
Bowl, Fuel
2
I4IP741
1
Plate, Choke •
i
I4IP69B
4
Screw & Washer, Choke & Throttle
Plate Mtg.
A
141P706
1
Plate, Throttle
5
141P705
1
Retainer, Seal
6
1 41 -66 1
1
Seal, Rubber
7
141 P704
Valve Seat Assy,. Fuel
8
141 P696
1
Washer, Fuel Valve Seat
9
14 1 P703
1
Shaft, Float
10 •I4IP702
1
Float Assy.
1 1
I 41P701
1
Gasket, Bowl to Body
12
14IP700
1
Screw Throttle Stop
13
I41P7I1
1
Spring, Throttle Stop
14 I4IP713
1
Needle Idle Adjusting
15
141P7 10
1
Spring, idle Needle
16
14 IA77
1
Washer, Main Jet Assy.
17
141-712
1
Jet Assy,, Main (Adjustable)
18
1416679
1
Shaft, Choke
22
141P709
1
Shaft & Lever, Throttle
