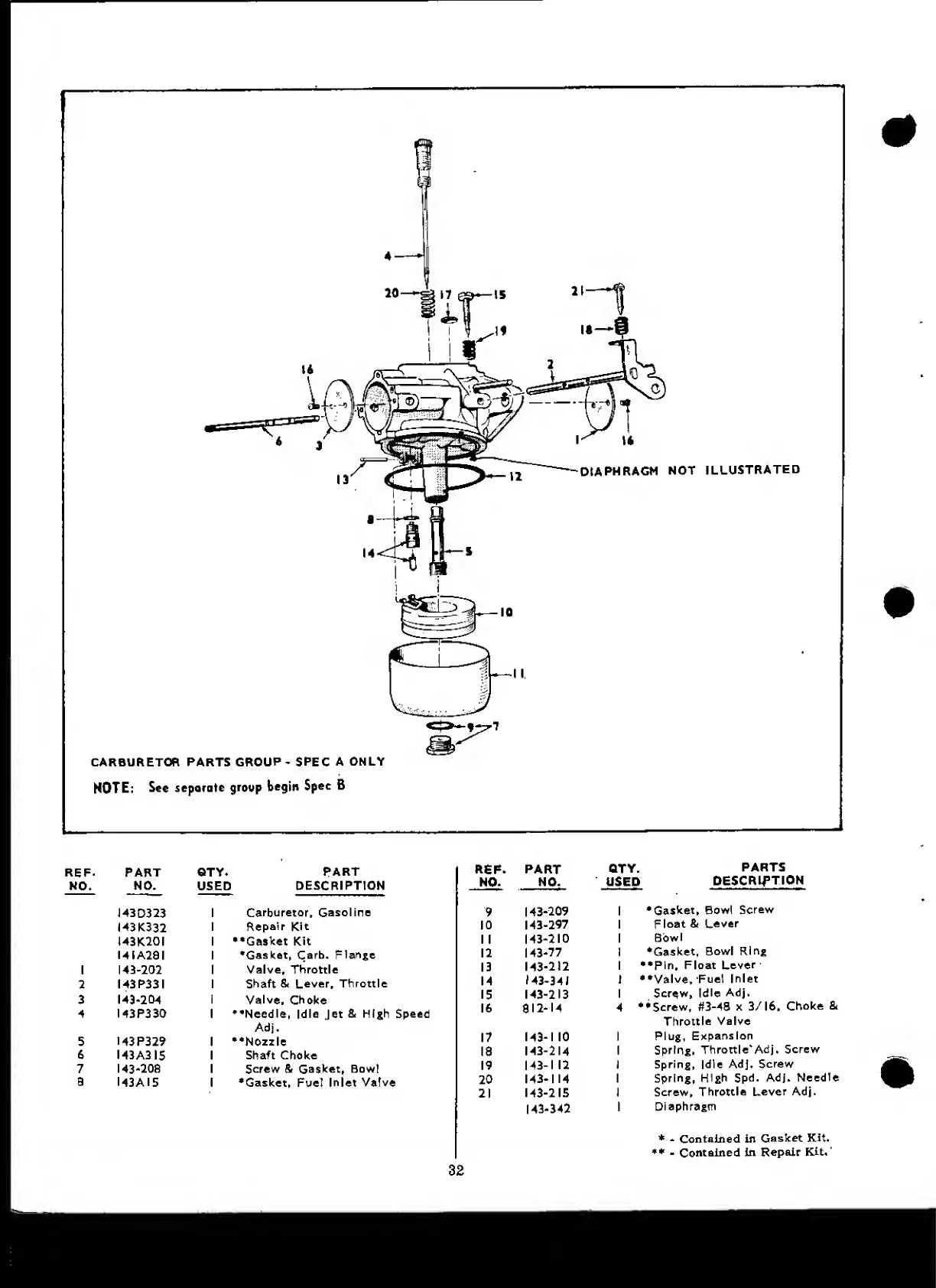

REF.
NO.
PART
NO.
QTY. PART
USED DESCRIPTION
I43D323
1 Carburetor, Gasoline
I43K332
1 Repair Kit
143K20I 1 ••Gasket Kit
I4IA28I
1 •Gasket, Carb. Flange
1 143-202
1 Valve, Throttle
2 I43P33I
1 Shaft & Lever, Throttle
3
143-204 i Valve, Choke
4 I43P330 1 ••Needle, Idle Jet & High 1
Adj.
5 I43P329 1 “Nozzle
6
143 A3 15
1 Shaft Choke
7 143-208 1 Screw 8. Gasket, Bowl
9
I43AI5 1 ’Gasket, Fuel Inlet Valve
REF.
PART
QTY. PARTS
NO.
NO.
USED DESCRIPTION
9
143-209
1 ‘Gasket, Bowl Screw
10
143-297
1 Float & Lever
1 1
143-210
1 Bowl
12
143-77
1 ‘Gasket, Bowl Ring
13
143-212
1 “Pin, Float Lever
14 143-341
1 “Valve, Fuel Inlet
15
143-213
1 Screw, Idle Adj.
16 812-14
4 *• Screw, #3-48 x 3/16, Choke 8.
Throttle Valve
17
143-110
1 Plug, Expansion
18 143-214
1 Spring, Throttle'Adj. Screw
19
143-112
1 Spring, Idle Adj. Screw
20
143-114
1 Spring, High Spd. Adj. Needle
21
143-215
1 Screw, Throttle Lever Adj.
143-342
1 Diaphragm
* - Contained in Gasket Kit.
* • - Contained in Repair Kit.
