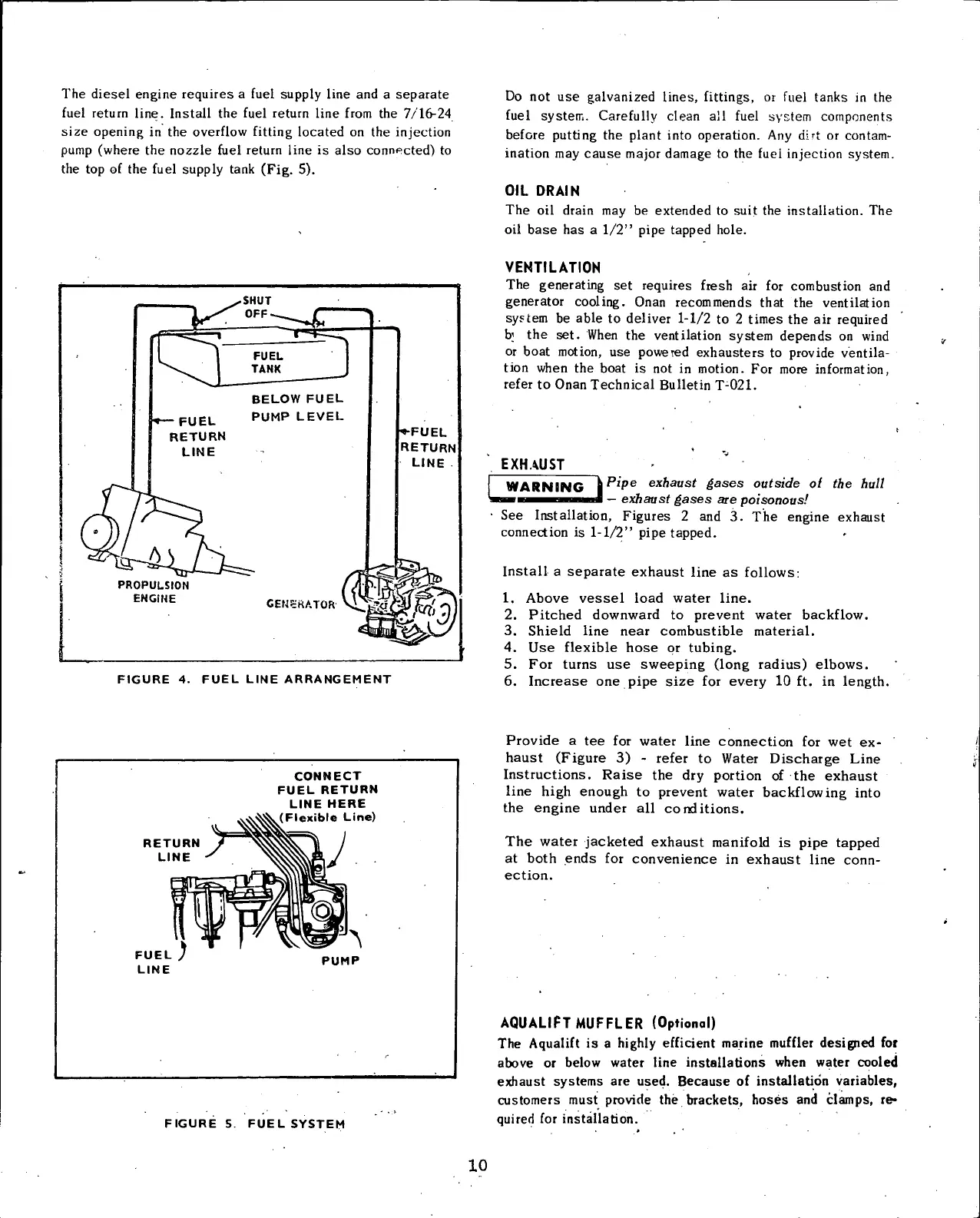

The diesel engine requires a
fuel
supply
line
and a
separate
fuel
return
line.
Install
the
fuel
return
line
from
the 7/T6-24
size opening in the
overflow
fitting
located on the
injection
pump (where the nozzle
fuel
return
line
is also connected) to
the top of the
fuel
supply tank (Fig. 5).
Do
not use galvanized lines,
fittings,
or
fuel
tanks in the
fuel
system. Carefully clean all
fuel
system components
before putting the plant into operation. Any
dirt
or contam-
ination
may
cause
major
damage
to the
fuei
injection
system.
OIL
DRAIN
The oil drain may be extended to suit the installation. The
oil
base
has a 1/2" pipe tapped hole.
^SHUT
FUEL
TANK
BELOW
FUEL
—
FUEL
PUMP
LEVEL
RETURN
LINE
PROPULSION
ENGINE
•
FUEL
RETURN
LINE
GENcKATOR'
FIGURE
4.
FUEL
LINE
ARRANGEMENT
VENTILATION
The generating set requires fresh air for combustion and
generator
cooling.
Onan recommends that the ventilation
system be able to deliver 1-1/2 to 2 times the air required
b;
the set. When the ventilation system
depends
on
wind
or
boat motion, use powered
exhausters
to provide ventila-
tion
when the boat is not in motion. For more
information,
refer to Onan Technical
Bulletin
T-021.
EXHAUST
WARNING
^Pfpe exhaust gases outside
of the
hull
I
-
exhaust gases
are
poisonous!
See Installation, Figures 2 and 3. The engine exhaust
connection is
1-1/2"
pipe tapped.
Install
a
separate
exhaust
line
as
follows:
1.
Above vessel load water
line.
2.
Pitched downward to prevent water backflow.
3. Shield
line
near
combustible material.
4.
Use
flexible
hose
or tubing.
5. For turns use sweeping
(long
radius) elbows.
6.
Increase
one pipe size for every 10 ft. in length.
CONNECT
FUEL
RETURN
LINE
HERE
(Flexible
Line)
RETURN
LINE
Provide a tee for water
line
connection for wet ex-
haust
(Figure 3) - refer to Water Discharge
Line
Instructions.
Raise
the dry portion of the exhaust
line
high
enough to prevent water backflowing into
the engine under all conditions.
The water jacketed exhaust
manifold
is pipe tapped
at both
ends
for convenience in exhaust
line
conn-
ection.
FIGURE
5.
FUELSYSTEM
AQUALIFT
MUFFLER
(Optional)
The
Aqualift
is a
highly
efficient
marine
muffler
designed for
above or below water
line
installations when water cooled
exhaust
systems
are used.
Because
of installation variables,
customers must provide the brackets,
hoses
and clamps, re-
quired
for installation.
10
