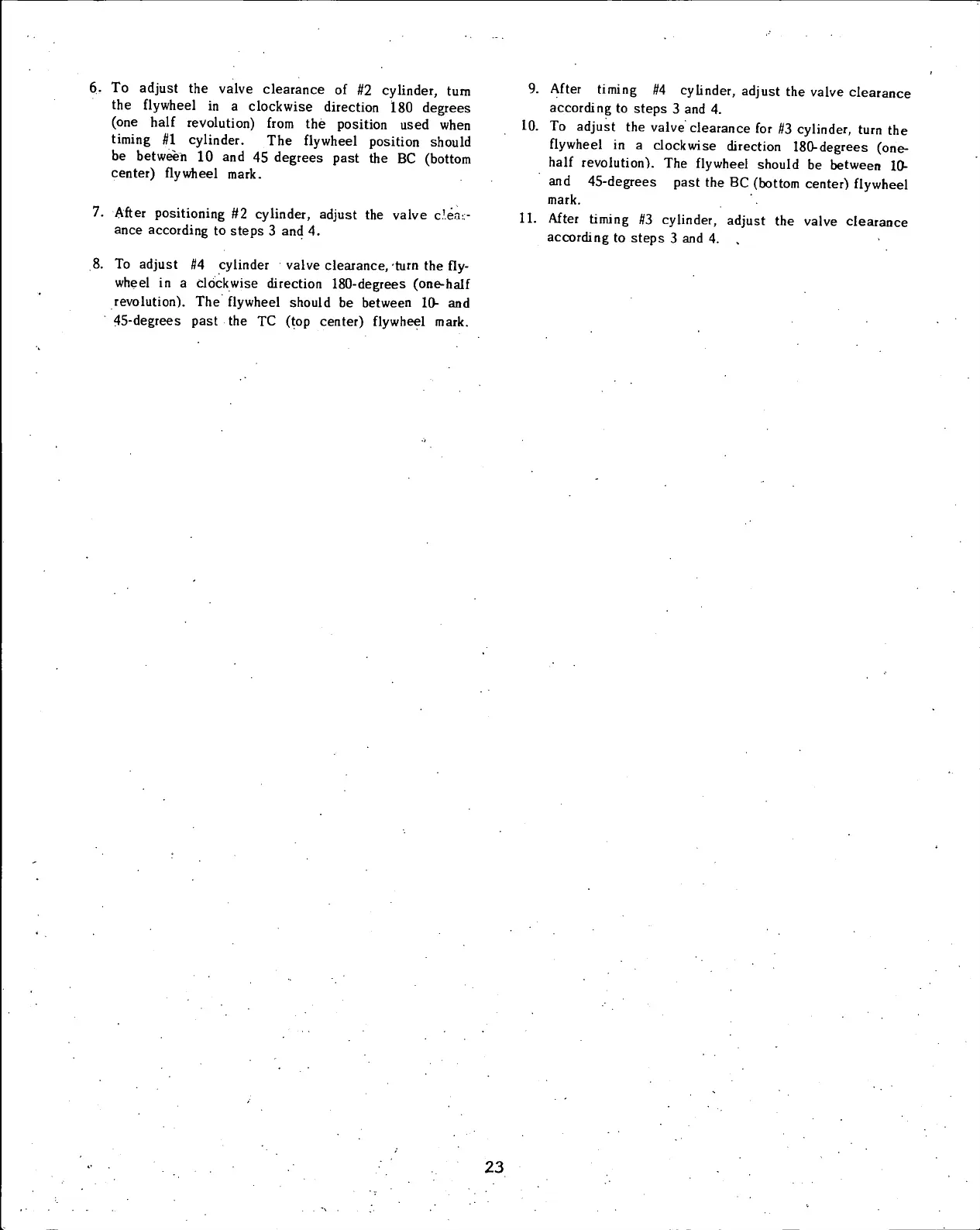

6. To adjust the valve clearance of §2 cylinder, turn
the flywheel in a clockwise direction 180 degrees
(one half revolution) from the position used when
timing #1 cylinder. The flywheel position should
be between 10 and 45 degrees past the BC (bottom
center) flywheel mark.
7. After positioning #2 cylinder, adjust the valve c'en:.-
ance according to steps 3 and 4.
.8. To adjust #4 cylinder valve clearance, turn the fly-
wheel in a clockwise direction 180-degrees (one-half
revolution). The flywheel should be between 10- and
45-degrees past the TC (top center) flywheel mark.
9. After timing #4 cylinder, adjust the valve clearance
according to steps 3 and 4.
10. To adjust the valve clearance for #3 cylinder, turn the
flywheel in a clockwise direction 180-degrees (one-
half revolution). The flywheel should be between 10-
and 45-degrees past the BC (bottom center) flywheel
mark.
11. After timing #3 cylinder, adjust the valve clearance
according to steps 3 and 4. .
23
