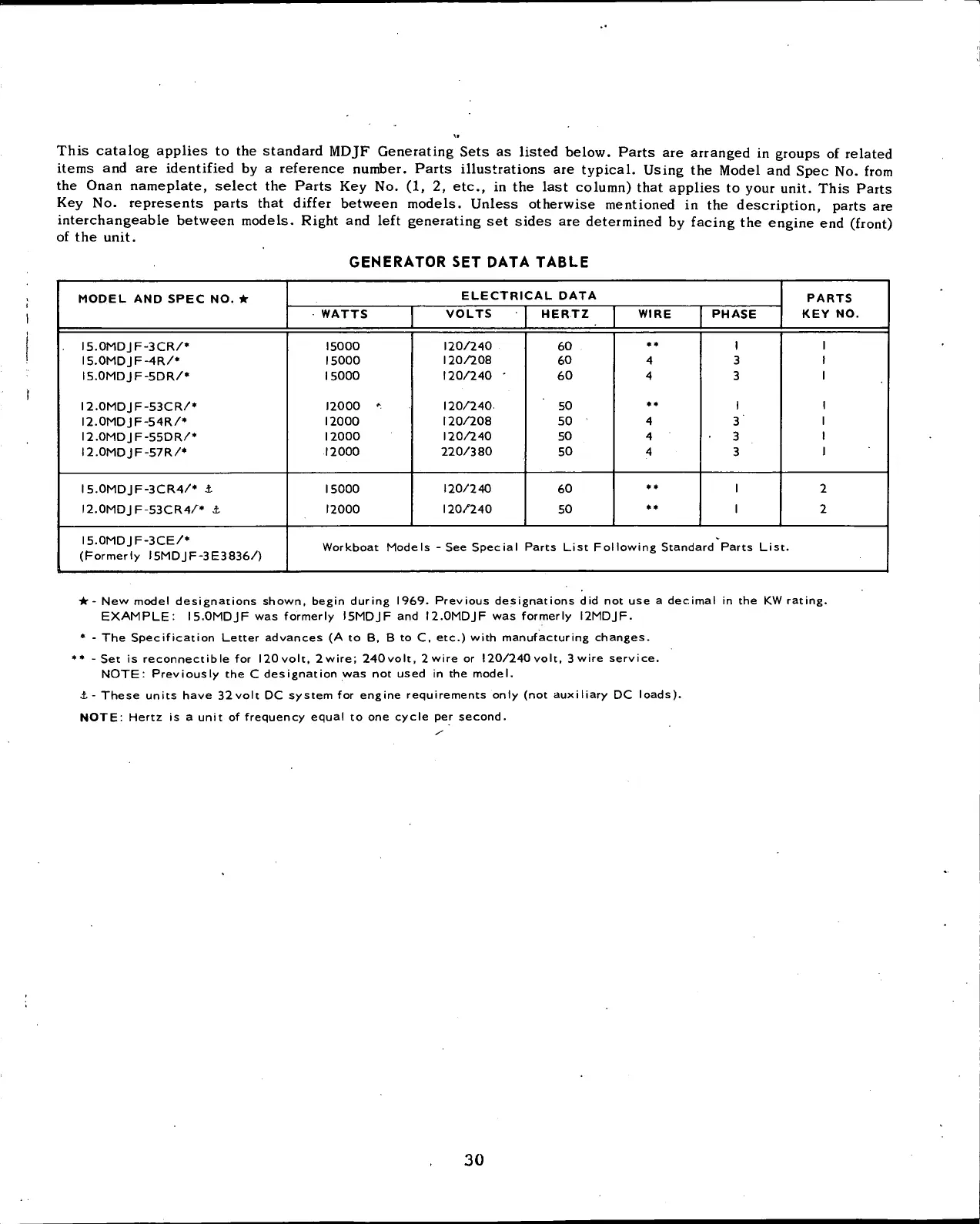

This
catalog
applies
to the
standard
MDJF
Generating
Sets
as
listed
below.
Parts
are
arranged
in
groups
of
related
items
and are
identified
by a
reference
number.
Parts
illustrations
are typical.
Using
the
Model
and
Spec
No. from
the
Onan
nameplate,
select
the
Parts
Key No. (1, 2, etc., in the
last
column)
that
applies
to
your
unit.
This
Parts
Key No.
represents
parts
that
differ
between
models.
Unless
otherwise
mentioned
in the
description,
parts
are
interchangeable
between
models.
Right
and left
generating
set
sides
are
determined
by
facing
the
engine
end (front)
of
the
unit.
GENERATOR
SET DATA
TABLE
MODEL
AND
SPEC
NO. •
ELECTRICAL
DATA
PARTS
WATTS
VOLTS
HERTZ
WIRE
PHASE
KEY
NO.
I5.0MDJF-3CR/*
15000 120/240 60
**
1 1
I5.0MDJF-4R/*
15000 120/208 60 4
3
1
I5.0MDJF-5DR/"
15000 120/240 • 60
4
3
1
I2.0MDJF-53CR/*
12000 "
120/240. 50
* *
1
1
I2.0MDJF-54R/* 12000
120/208 50 4
3
1
I2.0MDJF-55DR/*
12000 120/240 50 4
3
1
I2.0MDJF-57R/*
12000
220/380 50
4
3
1
I5.0MDJF-3CR4/* ±
15000
120/240 60
* •
1
2
l2.0MDJF-53CR4/» i
12000
120/240 50 ** 1 2
I5.0MDJF-3CE/*
Workboat Models - See Special Parts List Followine Standard Parts List.
(Formerly I5MDJF-3E3836/)
+ - New model designations shown, begin during 1969. Previous designations did not use a decimal in the KW rating.
EXAMPLE: I5.0MDJF was formerly I5MDJF and I2.0MDJF was formerly I2MDJF.
* - The Specification Letter advances (A to B, B to C, etc.) with manufacturing changes.
** - Set is reconnectible for I20volt, 2wire; 240volt, 2wire or 120/240 volt, 3wire service.
NOTE:
Previously the C designation was not used in the model.
i - These units have 32volt DC system for engine requirements only (not auxiliary DC loads).
NOTE:
Hertz is a unit of frequency equal to one cycle per second.
30
