Onan MEP-003A - Page 30

TM
5-6115-585-34
NAVFAC
P
-
8-623-34
TO
-
35C2-3-455-2
TM
-
05684C
/
05685B
-
34

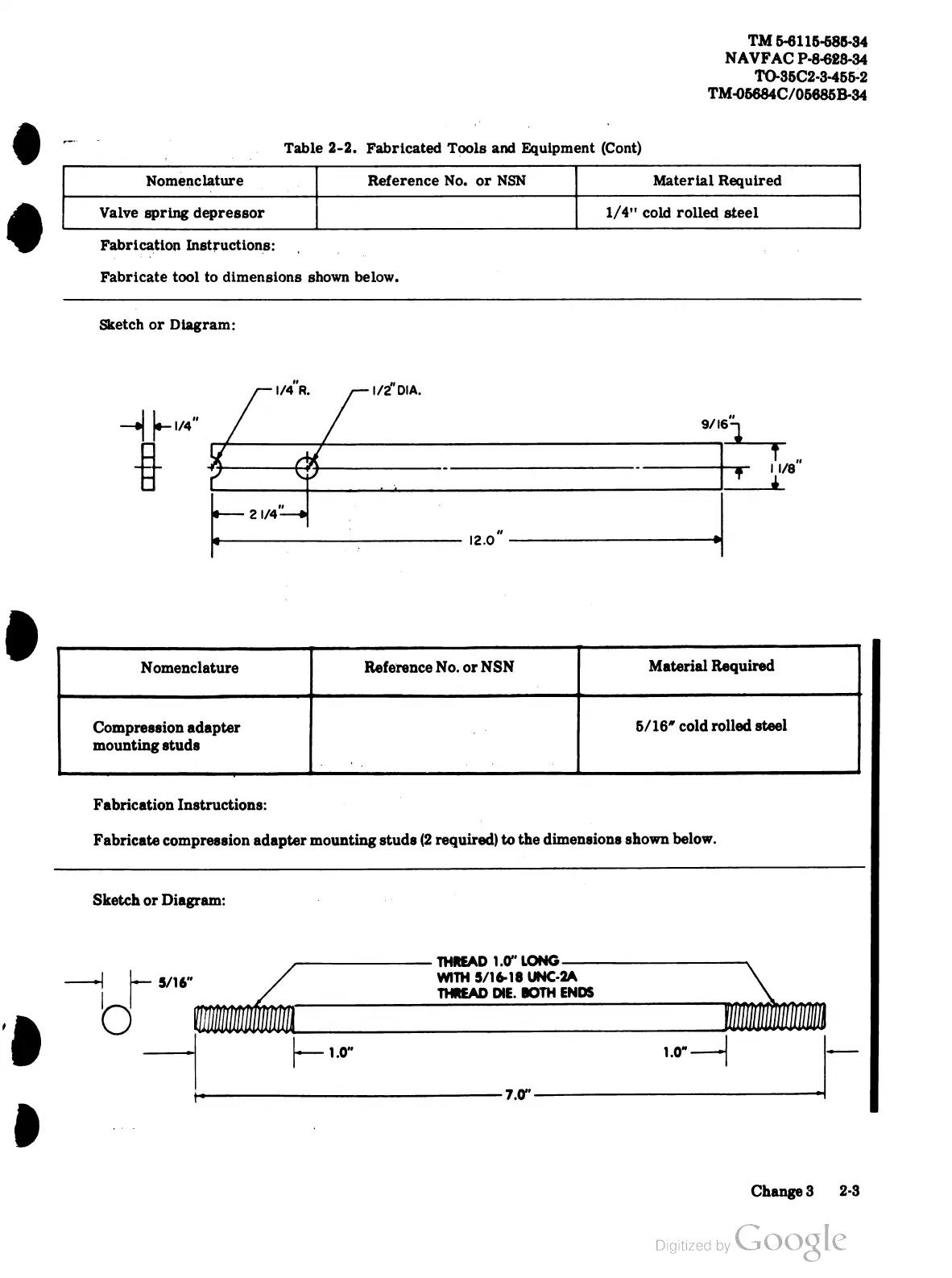

Table
2-2
.
Fabricated Tools
and
Equipment ( Cont
)
Nomenclature
Reference No. or NSN Material
Required
Valve
spring
depressor
1/4 " cold rolled steel
Fabrication Instructions :
Fabricate tool to dimensions shown below .
Sketch
or
Diagram
:
1/4
"
R
.
1/2
"
DIA
.
1/4
"
9/1647
1
1/8
"
21/4
"
12.0
"
Nomenclature
Reference No. or NSN
Material
Required
5/16
"
cold
rolled
steel
Compression adapter
mounting studs
Fabrication Instructions :
Fabricate
compression
adapter
mounting
studs
( 2 required
) to the
dimensions
shown
below
.
Sketch
or
Diagram
:
5/16
"
THREAD
1.0
"
LONG
WITH
5
/
16-18
UNC
-
2A
THREAD
DIE
.
BOTH
ENDS
1.0
"
1.0 "
-
7.0
"
Change 3
2-3
