TM 5-6115-585-34
NAVFAC P - 8-623-34
TO - 35C2-3-455-2
TM - 05684C / 05685B - 34

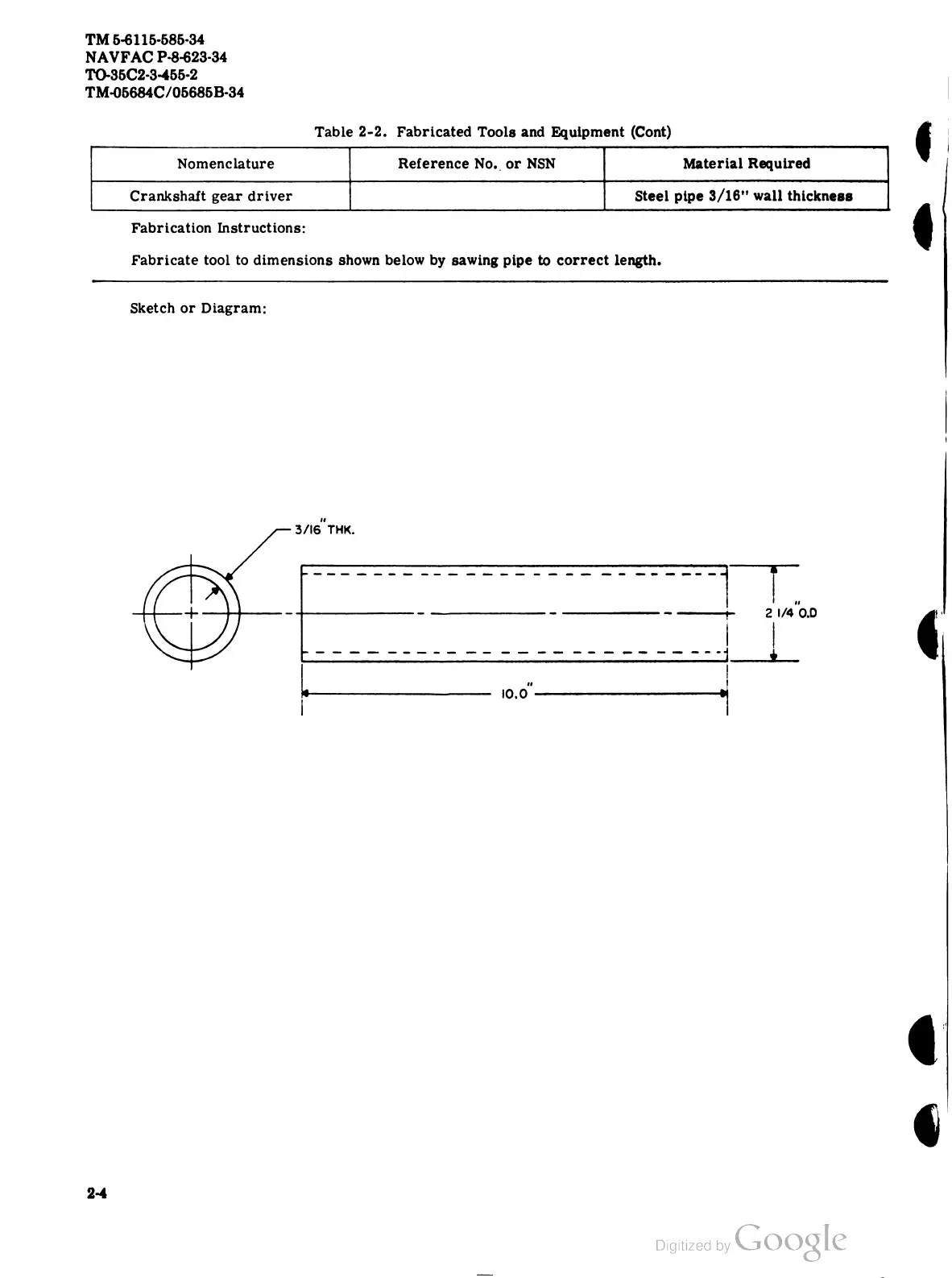

Table
2-2
.
Fabricated
Tools
and
Equipment
(
Cont
)
Nomenclature
Reference No. or NSN
Material
Required
Crankshaft
gear
driver
Steel
pipe
3/16
" wall
thickness
Fabrication Instructions :
Fabricate tool to dimensions shown below by sawing pipe to correct length .
Sketch
or
Diagram
:
1
10
3/16 THK .
21/4
"
0.0
10.0
"
2-4
