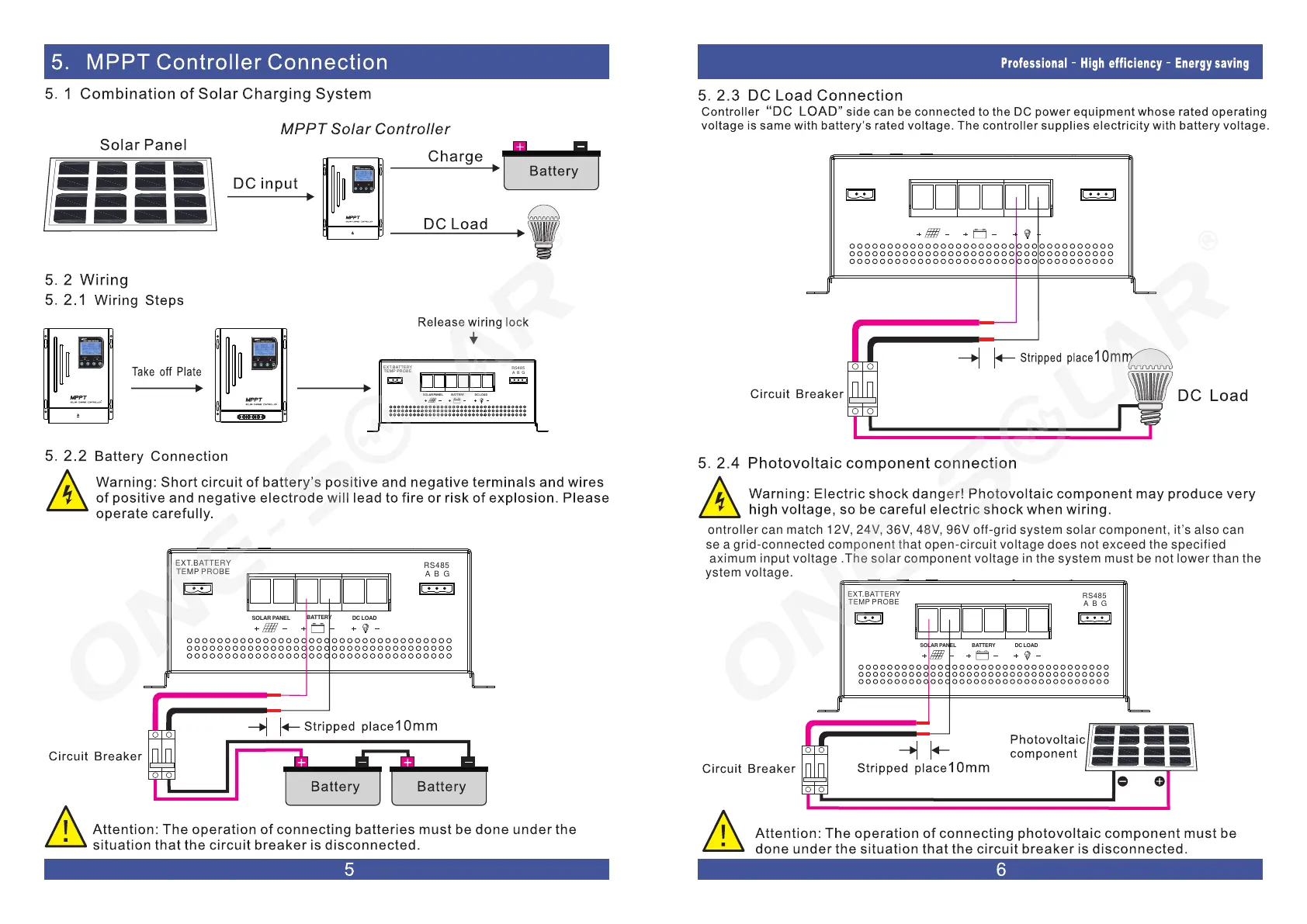

Controller can match 12V, 24V, 36V, 48V, 96V off-grid system solar component, it’s also can
use a grid-connected component that open-circuit voltage does not exceed the specified
maximum input voltage .The solar component voltage in the system must be not lower than the
system voltage.
