USING THE ACCESSORIES

CONNECTOR

The connector is used to attach the triangular tool

or the rectangular tool to the extension tubes

or the steam hose.

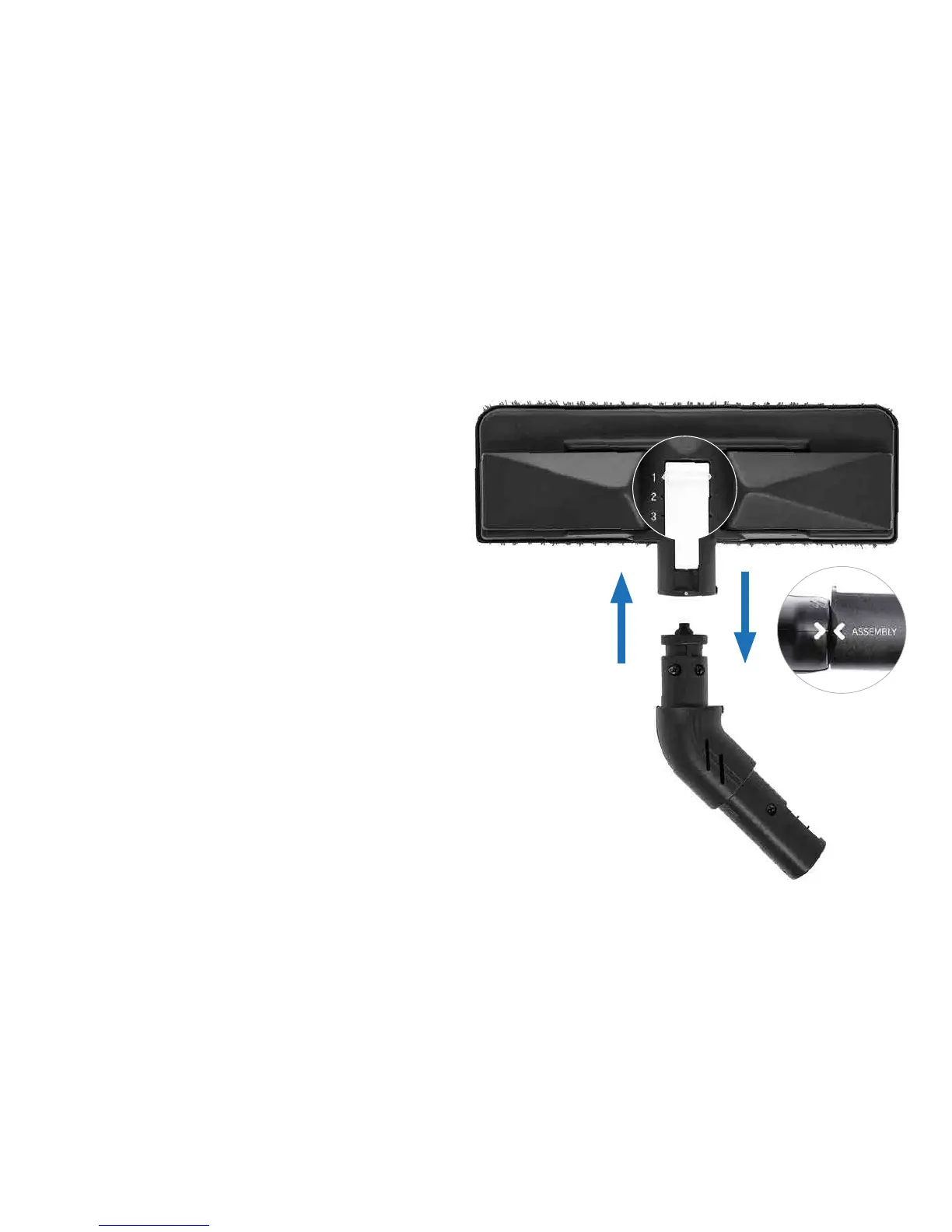

POSITION 1 - ASSEMBLY

Installing the connector

• Slide the white lever to the first position (Assembly).

• Insert the connector sideways, aligning the two white arrows.

• Rotate the connector to align the arrow with the white dot on the tool.

Removing the connector

• Align the white dot with the arrow on the connector.

• Slide the white lever to the first position (Assembly).

• Rotate the connector to align the two white arrows.

• Pull out the connector.
