Assembling the Fixing Plate

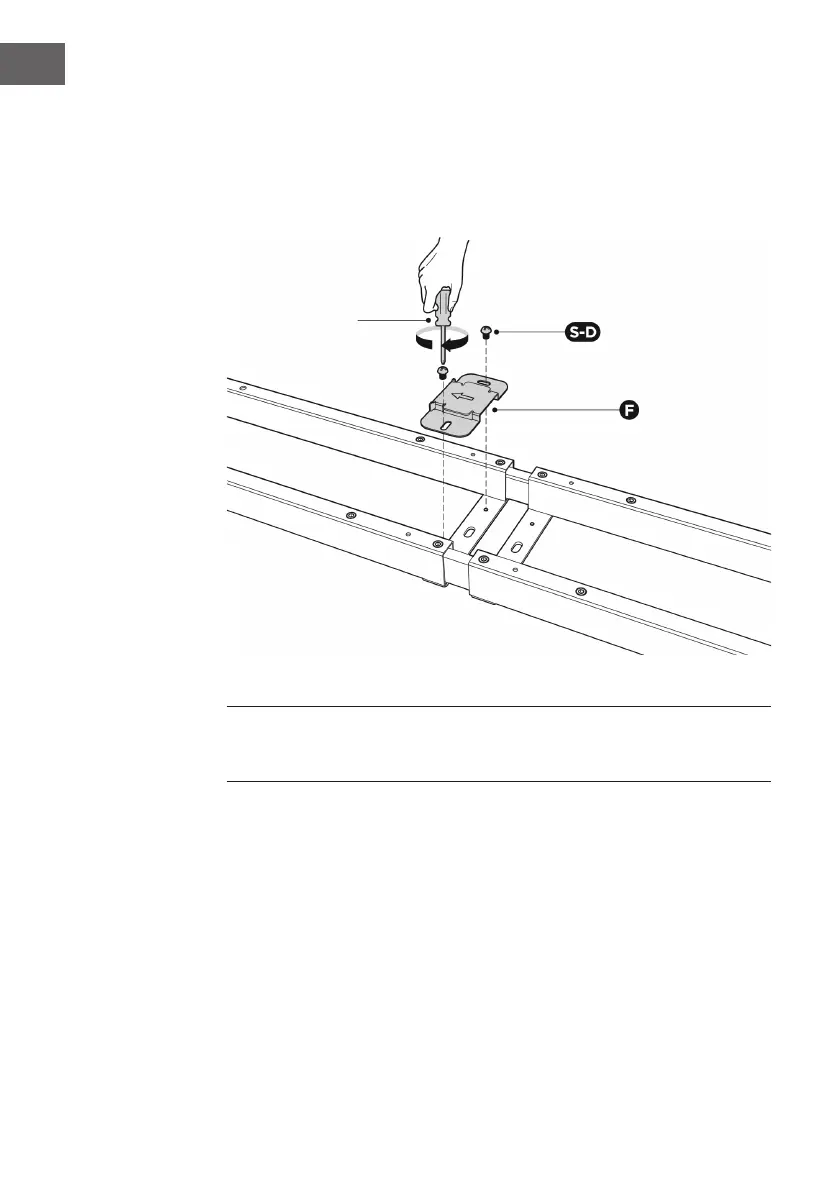

Align the mounting holes on the xing plate with the screw holes as shown.
Attach the xing plate (F) on the center of the crossbar with 2 screws (S-D)
using a Phillips screwdriver.
NOTE: The arrow on the xing plate indicates the direction of sliding in the
control box. Follow the direction of the arrow to mount the control box in the
next step.
Phillips
Screwdriver
To Next Page
