ASSEMBLY INSTRUCTIONS
STEP 3

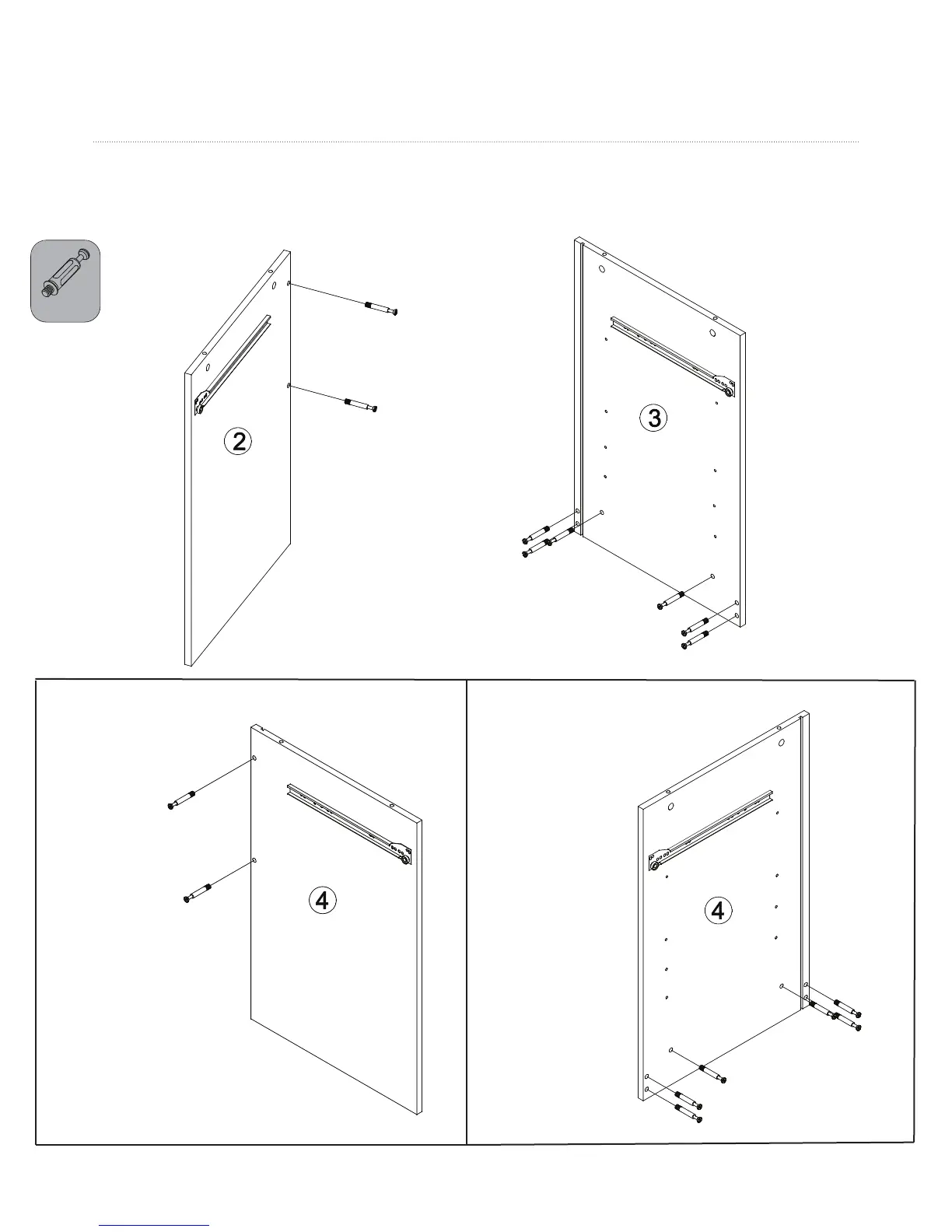

Screw two minix bolts (D) into the left board (2) and six bolts into the right board (3) as shown. Then screw
two minix bolts (D) into the left side of the middle board (4) and six bolts into the right side of the middle board.
Do not overtighten bolts or cams will not lock properly.
Left Side
Right Side
