7
VESA 100
VESA 75

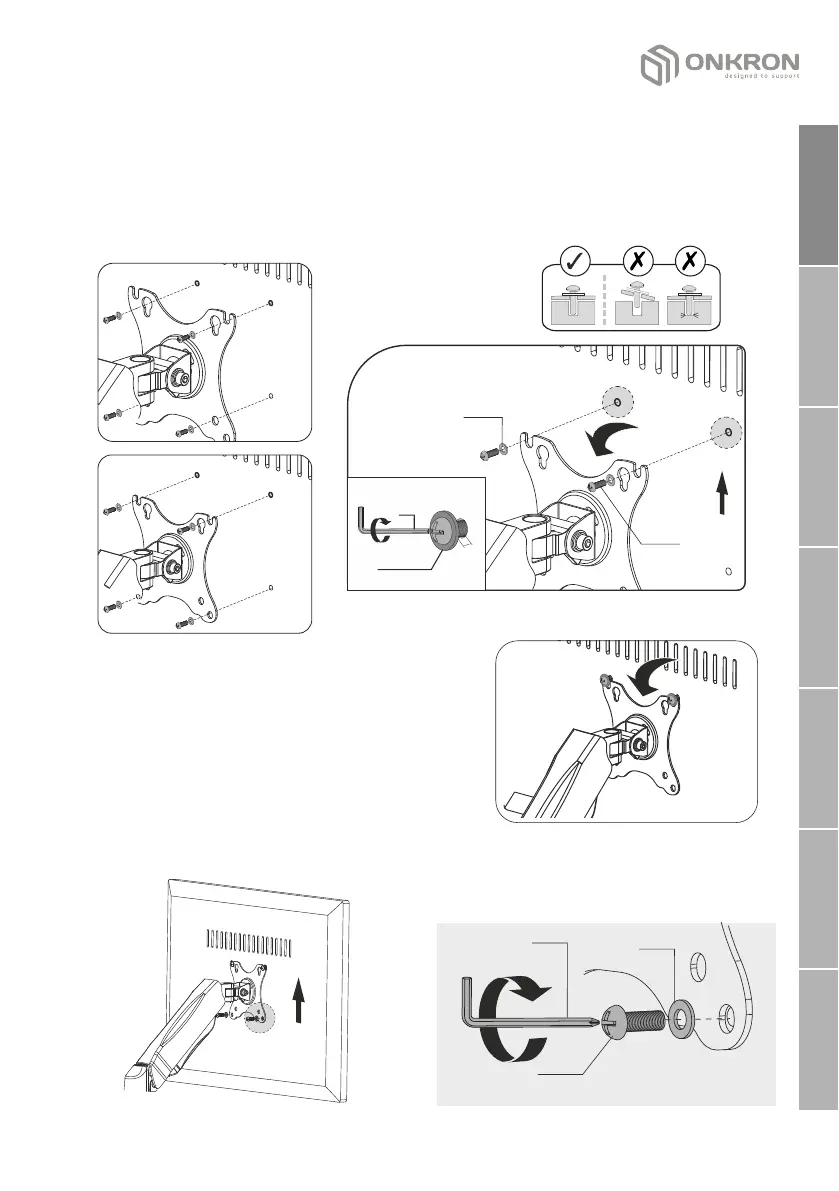

2. VESA panel installation to the monitor
Use M-A or M-B screws depending on the VESA hole size of the monitor.
Use the key (J) to screw the appropriate screws М-А or М-В and washers
М-С into the upper VESA holes of the monitor, without turning 3 mm
(0.11") to the surface of the monitor:
M-B
M-A
M-C
J
M-B
M-A
UP
џ Carefully install the monitor onto the
arm so that the screwed-in screws fall
into the upper grooves of the VESA
panel.
UP
M-B
M-A
M-C
J
џ Fix the screen to the lower holes of the
VESA panel with the two remaining
screws М-А or М-В and washers М-С
using the key (J).
3 mm
0.11"
џ Repeat the same steps for the other screen.
