Connecting to the other components
Before connecting
• Do not connect the unit’s AC power cord to a wall outlet until you have completed all the other
connections.
• On each pair of connectors, a red connector (marked R) corresponds to the right channel, and a
white connector (marked L) to the left channel. Connect white plugs of audio connection cables to
L connectors and connect red plugs of audio connection cables to R connectors.
• Insert the plug securely. If the connection is incomplete, noise or malfunction may result.
Improper connection
Insert completely
• When you use a digital audio optical cable, do not bend it sharply nor coil it tightly.
• Bundling an audio connection cable with the power cord or speaker cord may degrade the sound
quality.
• To use the unit with the other Onkyo Separate Collection series components, follow the connection
diagram in the A-905TX/R-805TX instruction manual to connect the unit to the system.
Note:
The 230-240 V model is shown in the following illustrations.

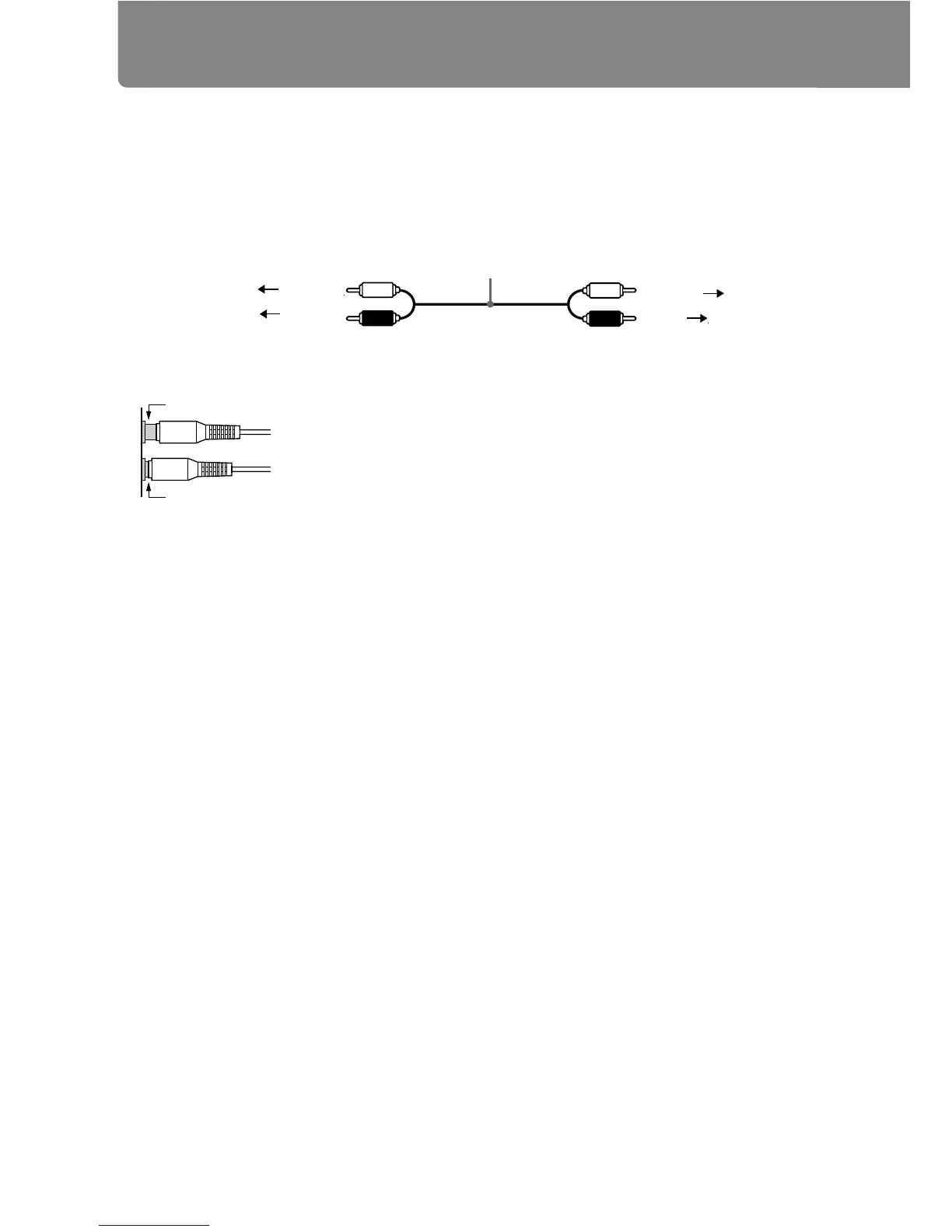

Audio connection cable
To L connectors
(White)
To R connectors (Red)
(White)
To L connectors
(Red)
To R connectors

Onkyo C-705TX Specifications

General

Type	CD Player
Frequency Response	2 Hz - 20 kHz
Output Level	2.0 V
Dynamic Range	100 dB
Digital Output	Coaxial, Optical
Disc Format	CD
Output	Analog
Signal-to-Noise Ratio	100 dB (EIAJ)
Total Harmonic Distortion	0.0045% (1 kHz)
