a iPod/iPhone Dock (24)
b Dock cover (24)
c ON/STANDBY button (17, 31, 33, 34)
d INPUT button (17, 24, 25, 26, 27, 29)
e Previous []/PRESET [] button
(19, 24, 27)
f Next []/PRESET [] button (19, 24, 27)
g Stop [] button (19, 24, 34)
h Play/Pause [/] button (19, 29)
i VOLUME [–]/[+] buttons (17, 25)
j Headphones jack (17)
k USB port (29)
l Display
m Disc tray (19)
n Remote control sensor (11)
o Open/Close [] button (19)
a b
j k l nm o
cid efgh
Top Panel
Front Panel

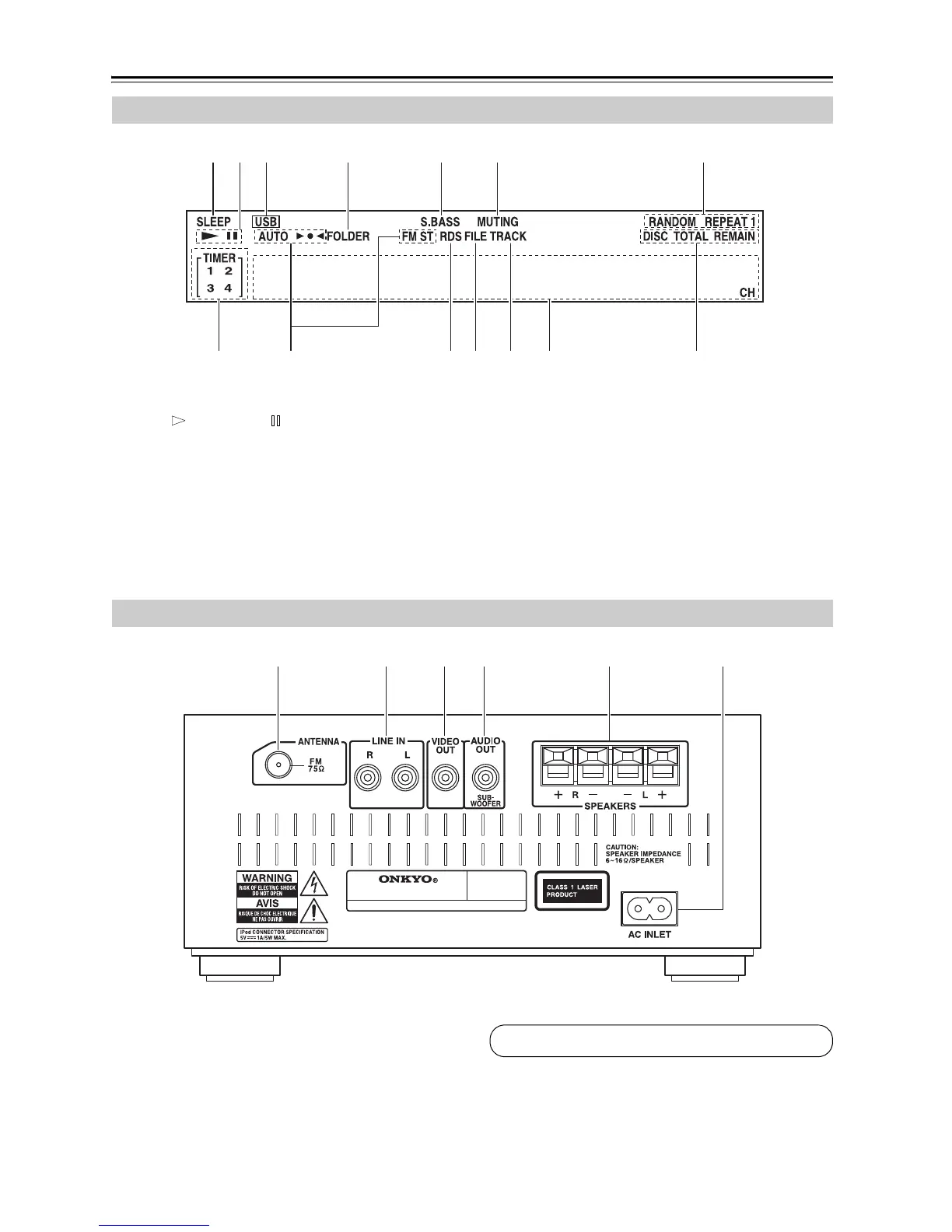

a
SLEEP indicator
b Play and Pause indicators
c USB indicator
d FOLDER indicator
e S.BASS indicator
f MUTING indicator
g Playback mode indicators
h TIMER indicators
i Tuning indicators
j RDS indicator
k FILE indicator
l TRACK indicator
m Message area
n DISC, TOTAL, and REMAIN indicators
a FM ANTENNA jack
b LINE IN jack
c VIDEO OUT jack
d AUDIO OUT (SUBWOOFER) jack
e SPEAKERS terminals
f AC INLET
Display
ˆˆˆ„„ˆˆ…„ˆˆ„„ˆ„„ˆˆ…‡ˆˆ
a c 5 6 7b 4
8mkjl n9
Rear Panel
a b c d e f
