Onkyo DS-A2X User Manual

5

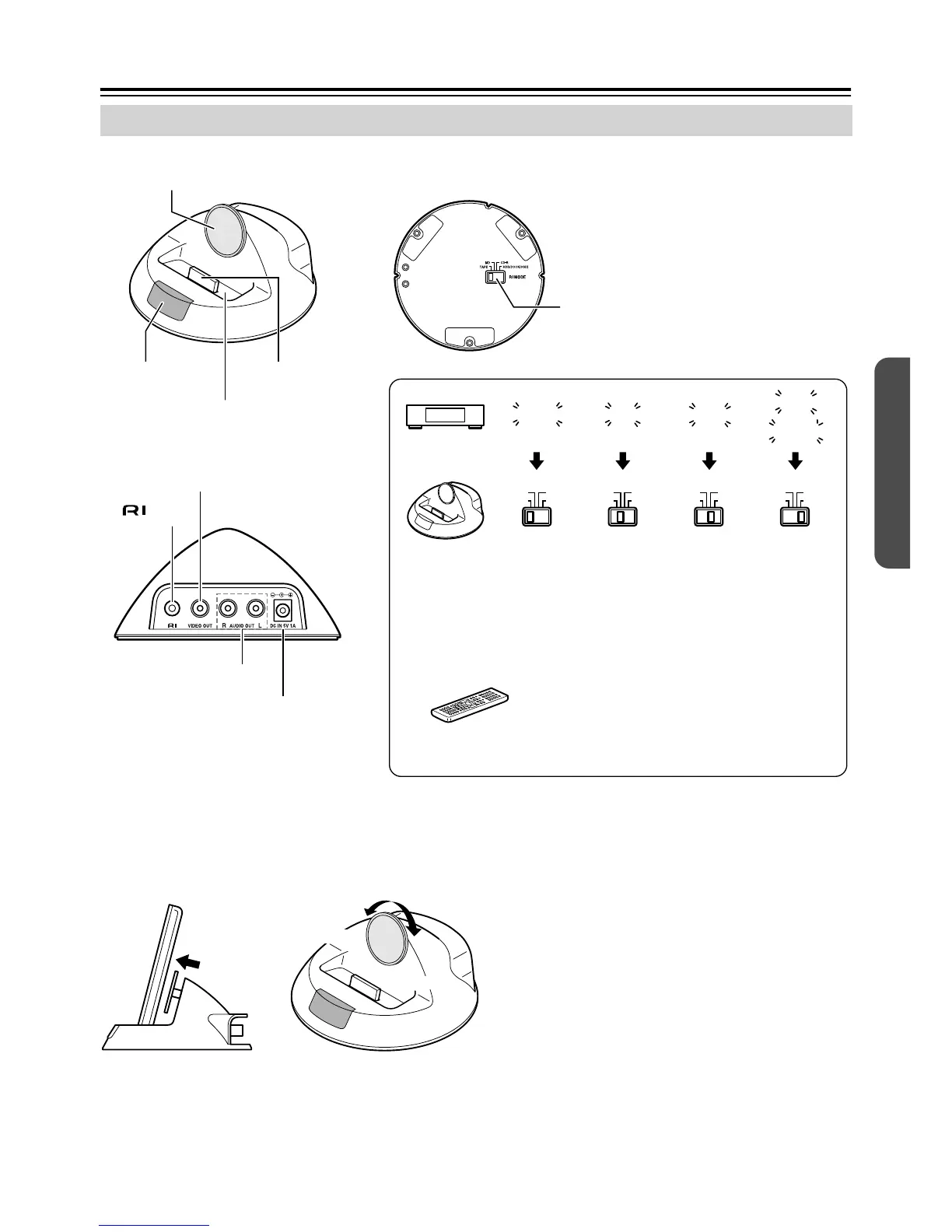

Getting Started—Continued
■ Adjusting the iPod Adapter
The iPod adapter needs to be adjusted to
match your particular iPod. Insert your
iPod into the RI Dock. If there’s a gap
between the back of your iPod and the
adapter, turn the adapter counterclock-
wise to close the gap. Turning the adapter
counterclockwise moves it forward. Turn-
ing it clockwise moves it backward.
Getting to Know the RI Dock
CD-R
HDD/DOCK
TAPE
TAPE
MD
TAPE
DOCK
MD
CD-R
HDD/DOCK
MD
TAPE
MD
CDR
MD CD-R
TAPE HDD/DOCK
CDR
HDD/DOCK
or
MD CD-R
TAPE HDD/DOCK
HDD
iPod slot
iPod connectorRemote control
sensor
RI MODE switch
jack
VIDEO OUT jack
DC IN 5V 1A jack
AUDIO OUT L/R jacks
Set it to match your amp’s
input display (see below).
Amp input
display
RI MODE switch
See your amp’s instruction manual for details on changing the
input display. On some amps, you press and hold the [TAPE]
button to change the input display from TAPE to MD, CDR, HDD
or DOCK.
To control your iPod with your amp’s
remote controller, select the matching
remote control mode.
Amp remote
controller’s mode
iPod adapter
Forward
Backward

Onkyo DS-A2X Specifications

Power

power supply	AC adaptor (5 V DC)
power consumption	1.1 W (iPod not inserted)

Package Dimensions

carton dimensions	207 x 340 x 76 mm
carton weight	1.1 kg

Weight and Dimensions

dimensions	112 x 60 x 112 mm
weight	230 g
