Onkyo DX-6830 - Page 22

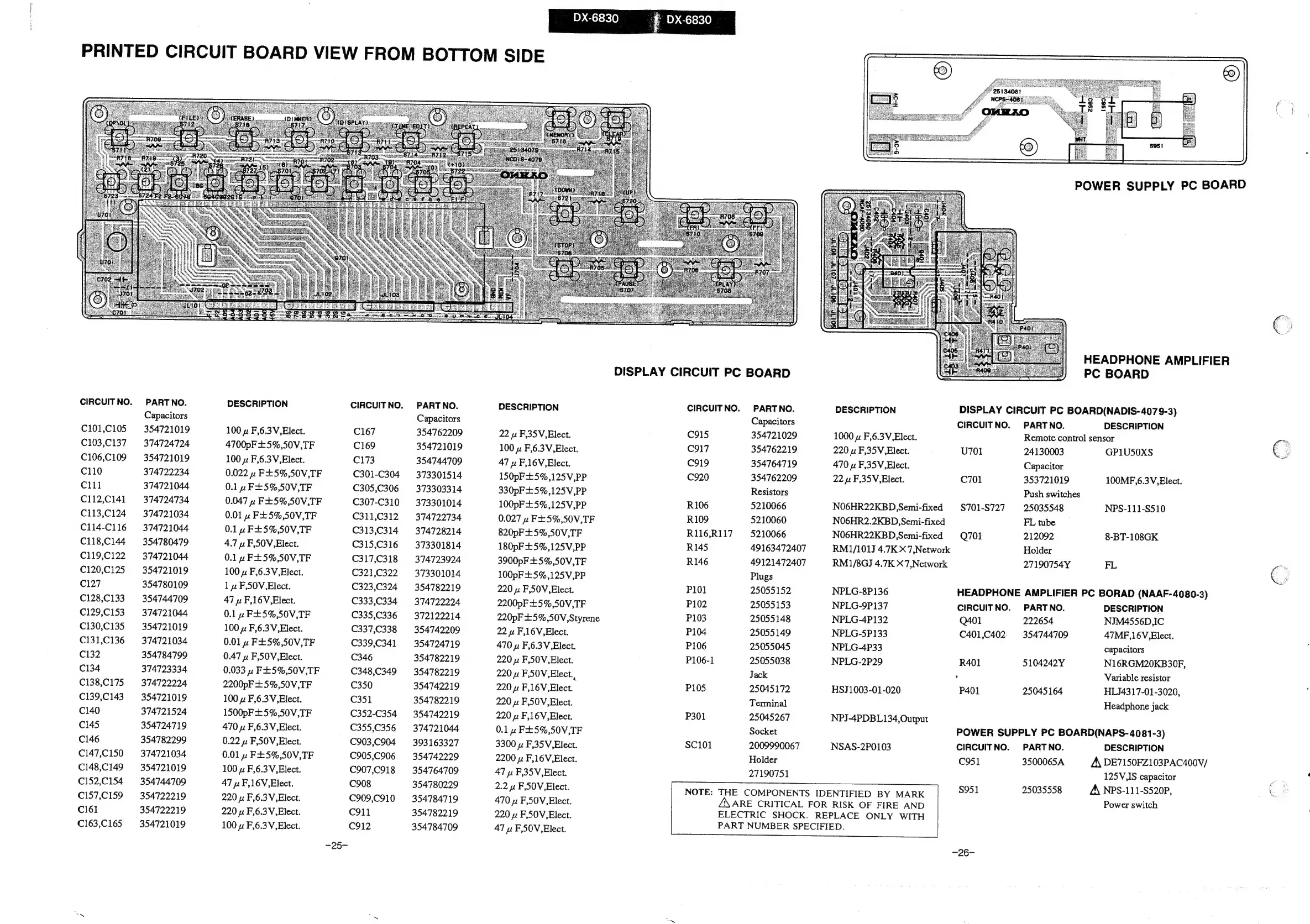

DX-6830
PRINTED
CIRCUIT
BOARD
VIEW
FROM
BOTTOM
SIDE
CIRCUIT NO.
C101,C105
C103,C137
C106,C109
C110
C111
C112,C141
C113,C124
C114-C116
C118,C144
C119,C122
C120,C125
C127
C128,C133
C129,C153
C130,C135
C131,C136
C132
C134
C138,C175
C139,C143
C140
C145
C146
C147,C150
C148,C149
C152,C154
C157,C159
C161
C163,C165
PART NO.
Capacitors
354721019
374724724
354721019
374722234
374721044
374724734
374721034
374721044
354780479
374721044
354721019
354780109
354744709
374721044
354721019
374721034
354784799
374723334
374722224
354721019
374721524
354724719
354782299
374721034
354721019
354744709
354722219
354722219
354721019
DESCRIPTION
100 » F,6.3V,Elect.
4700pF+5%,50V,TF
100 » F,6.3V,Elect.
0.022 p F£5%,50V,TF
0.1 p F£5%,50V,TF
0.047 p F£5%,50V,TF
0.01 « F£5%,50V,TF
0.1 p F£5%,50V,TF
4.7 » F,S0V,Elect.
0.1 p F45%,50V,TF
100 » F,6.3V,Elect.
1 F,50V,Elect.
47 uw F,16V,Elect.
0.1 p F£5%,50V,TF
100 » F,6.3V,Elect.
0.01 4 F£5%,50V,TF
0.47 » F,SOV, Elect.
0.033 w F£5%,50V,TF
2200pF£5%,50V,TF
100 » F,6.3V,Elect.
1500pF£5%,50V,TF
470 » F,6.3V,Elect.
0.22 4 F,SOV,Elect.
0.01 u F£5%,50V,TF
100 F,6.3V,Elect.
47 F,16V, Elect.
220 u F,6.3V,Elect.
220 u F,6.3V,Elect.
100 » F,6.3V,Elect.
CIRCUIT NO.
C167
C169
C173
C301-C304
C305,C306
C307-C310
C311,C312
C313,C314
C315,C316
C317,C318
C321,C322
C323,C324
C333,C334
C335,C336
C337,C338
C339,C341
C346
C348,C349
C350
C351
C352-C354
C355,C356
C903,C904
C905,C906
C907,C918
C908
C909,C910
C911
C912
-25-
PART NO.
Capacitors
354762209
354721019
354744709
373301514
373303314
373301014
374722734
374728214
373301814
374723924
373301014
354782219
374722224
372122214
354742209
354724719
354782219
354782219
354742219
354782219
354742219
374721044
393163327
354742229
354764709
354780229
354784719
354782219
354784709
DESCRIPTION
22 u F,35V,Elect.
100 u F,6.3V,Elect.
47 » F,16V,Elect.
150pF£5%,125V,PP
330pF£5%,125V,PP
100pF+5%,125V,PP
0.027 « F£5%,50V,TF
820pF+5%,50V,TF
180pF+5%,125V,PP
3900pF+5%,50V,TF
100pF+5%,125V,PP
220 u F,50V,Elect.
2200pF+5%,50V,TF
220pF £5%,50V, Styrene
22 » F,16V,Elect.
470 » F,6.3V,Elect.
220 » F,50V,Elect.
220 u F,S0V,Elect.,
220 » F,16V,Elect.
220 » F,50V,Elect.
220 » F,16V,Elect.
0.1 p F£5%,50V,TF
3300 w F,35V,Elect.
2200 u F,16V,Elect.
47 » F,35V,Elect.
2.2 F,S0V,Elect.
470 F,50V,Elect.
220 u F,50V,Elect.
47 » F,S0V,Elect.
DISPLAY CIRCUIT PC BOARD
CIRCUITNO. PARTNO.
Capacitors
C915 354721029
C917 354762219
C919 354764719
C920 354762209
Resistors
R106 5210066
R109 5210060
R116,R117 5210066
R145 49163472407
R146 49121472407
Plugs
P101 25055152
P102 25055153
P103 25055148
P104 25055149
P106 25055045
P106-1 25055038
Jack
P105 25045172
Terminal
P301 25045267
Socket
S$C101 2009990067
Holder
27190751
DESCRIPTION
1000 F,6.3V Elect.
220 u F,35V Elect.
470 u F,35V Elect.
22 4 F,35V Elect,
NO6HR22KBD,Semi-fixed
NO6HR2.2KBD,Semi-fixed
NO6HR22KBD,Semi-fixed
RM1/101J 4.7K X7,Network
RM1/8GJ 4.7K X7,Network
NPLG-8P136
NPLG-9P137
NPLG-4P132
NPLG-5P133
NPLG-4P33
NPLG-2P29
HSJ1003-01-020
NPJ-4PDBL134,Output
NSAS-2P0103
NOTE:
THE
COMPONENTS
IDENTIFIED
BY
MARK
ZNARE
CRITICAL
FOR
RISK
OF
FIRE
AND
ELECTRIC
SHOCK.
REPLACE
ONLY
WITH
PART
NUMBER
SPECIFIED.
HEADPHONE AMPLIFIER
PC BOARD
DISPLAY CIRCUIT PC BOARD(NADIS- 4079-3)
CIRCUIT NO.
U701
C701
$701-S727
Q701
PART NO. DESCRIPTION
Remote control sensor
24130003 GP1U50XS
Capacitor
353721019 100MF,6.3V,Elect.
Push switches
25035548 NPS-111-S510
FLtube
212092 8-BT-108GK
Holder
27190754Y FL
HEADPHONE AMPLIFIER PC BORAD (NAAF-4080-3)
CIRCUIT NO.
.
Q401
C401,C402:
R401
P401
PART NO.
222654
354744709
5104242Y
25045164
DESCRIPTION
NJM4556D,1IC
47MF,16V,Elect.
capacitors
N16RGM20KB30F,
Variable resistor
HLJ4317-01-3020,
Headphone jack
POWER SUPPLY PC BOARD(NAPS- 4081-3)
CIRCUIT NO.
C951
S951
-26-
PART NO.
3500065A
25035558
DESCRIPTION
A\ DE7150FZ103PAC400V/
125V,IS capacitor
A NPS-111-S520P,
Power switch
es
_—
