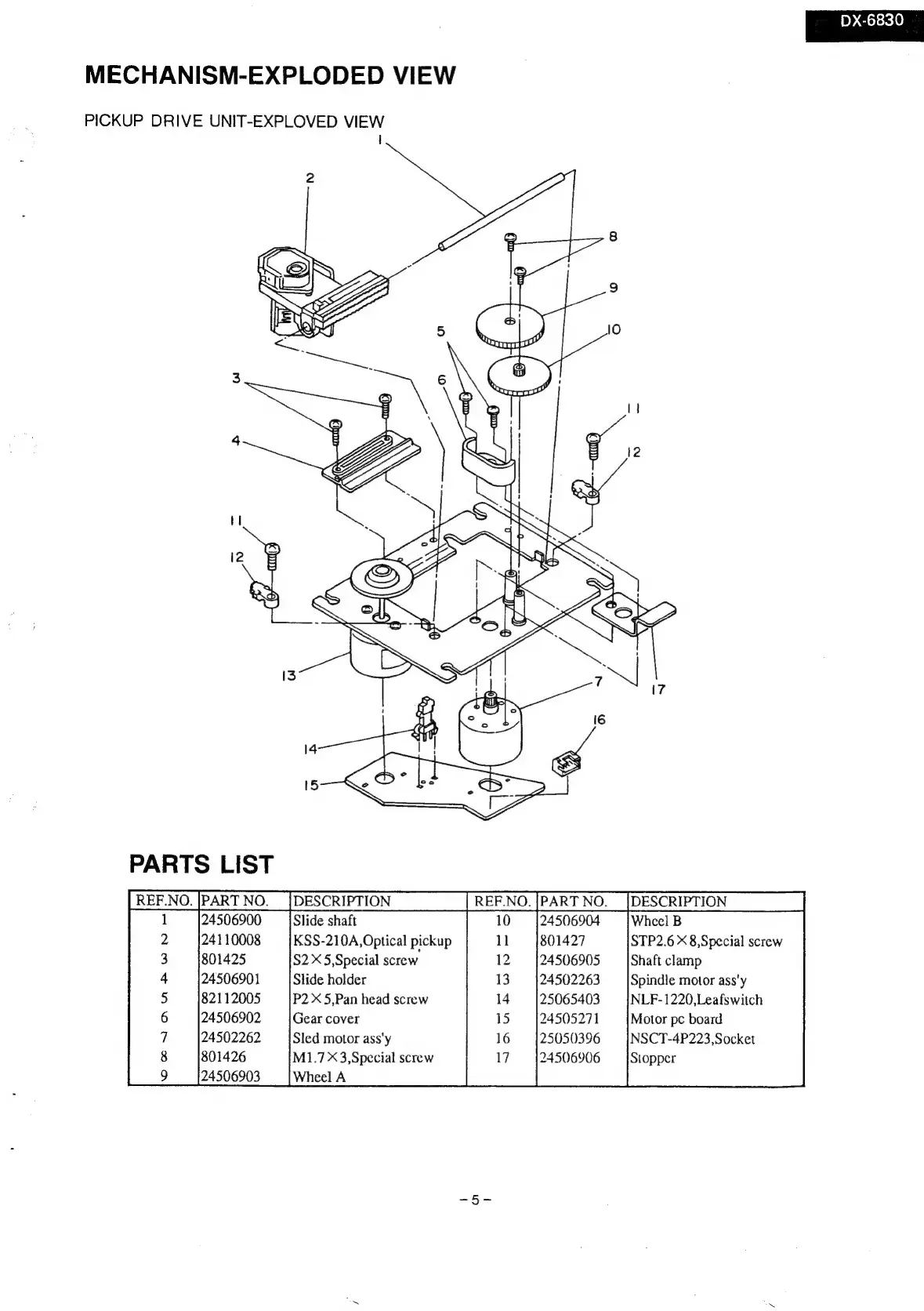

MECHANISM-EXPLODED VIEW
PICKUP DRIVE UNIT-EXPLOVED VIEW
1
2
3
4
5
6
7
8
9
24506900
24110008
801425
24506901
82112005
Slide shaft
KSS-210A, Optical pickup
S2X5,Special screw
Slide holder
P2 X 5,Pan head screw
Gear cover
Sled motor ass'y
M1.7X3,Special screw
Wheel A
24506906
DX-6830
Wheel B
STP2.6 X 8,Special screw
Shaft clamp
Spindle motor ass'y
NLF-1220,Leafswitch
Motor pc board
NSCT-4P223,Socket
Stopper
