DX-C390
RANDOM indicator
MEMORY indicator
REPEAT indicator
DISC indicator
The number of the current disc appears here.
FLDR (FOLDER) indicator
While stopped, the total number of folders on the
current MP3 disc are displayed. During playback,
the number of the current folder is displayed.
NEXT indicator
This indicator appears when using the Next Selec-
tion function.
TRACK indicator
While stopped, the total number of tracks on the
current disc are displayed. During playback, the
number of the current track is displayed.
NAME indicator
This indicator appears when the current disc is an
MP3 disc and a name (disc, folder, track) is being
displayed.
TOTAL indicator
This indicator appears when the total remain time is
displayed.
REMAIN indicator
Play / Pause indicator
MP3 indicator
Disc indicators 1 - 6
ANALOG AUDIO OUTPUT
These RCA/phono connectors can be connected to
the analog audio inputs on a hi-Þ amp or AV
receiver.
COAXIAL & OPTICAL DIGITAL AUDIO
OUTPUT
These connectors can be used to connect a CD-R,
MiniDisc, DAT recorder, digital amp, or other
equipment with digital inputs.
REMOTE CONTROL
These (Remote Interactive) connectors can be
connected to the connectors on your other
Onkyo AV components for interactive control.
To use you must also make analog audio con-
nections (RCA/phono) between the DX-C390 and
your other Onkyo equipment.
TRACK
NEXT TOTALDISC
MP3
3
6
2
5
1
4
FLDR
REPEAT
MEMORY
RANDOM
REMAIN
NAME
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
7 8 9
10 11
12 131 2
3
4 5 6

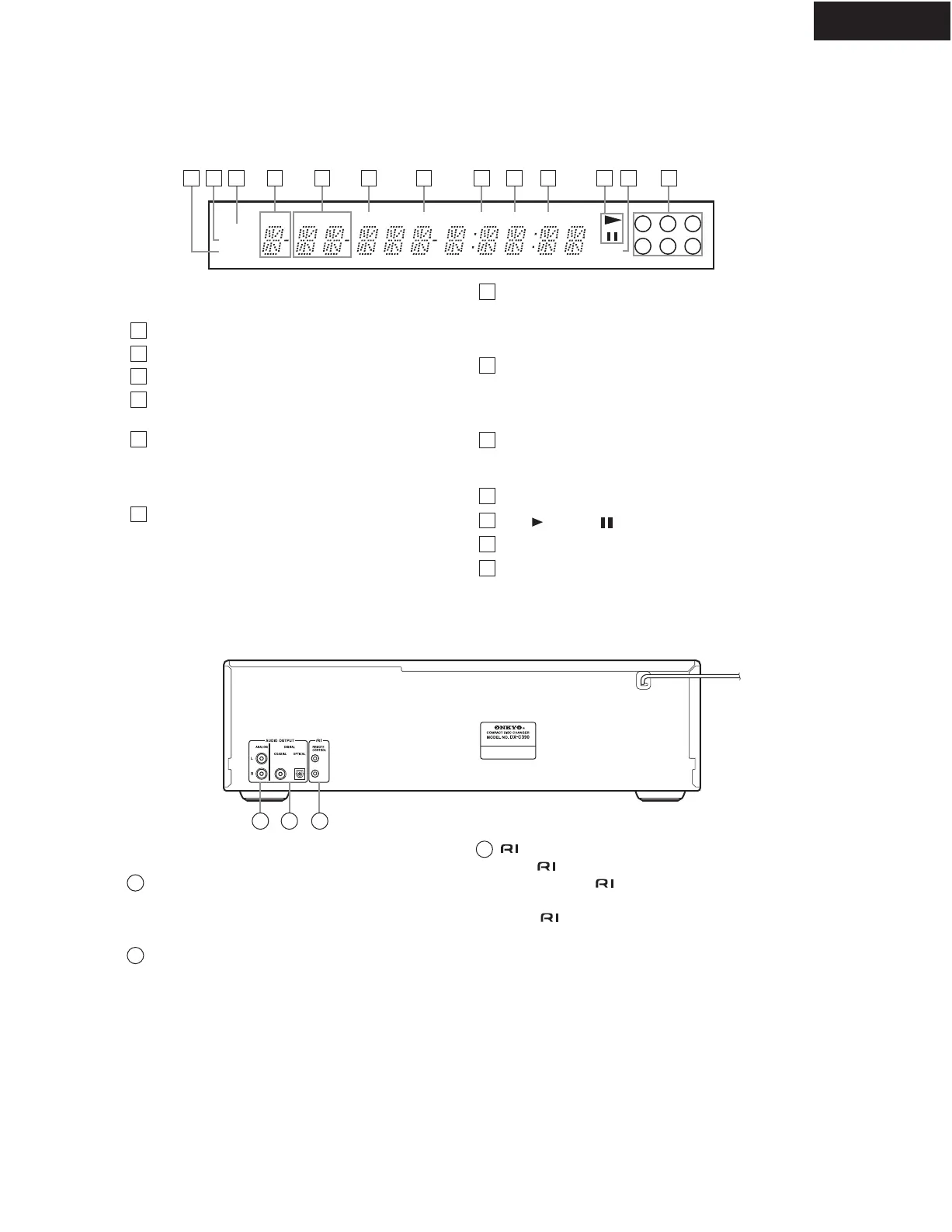

DISPLAY
PANEL VIEW-2
REAR PANEL
1 2 3
5 of 63
