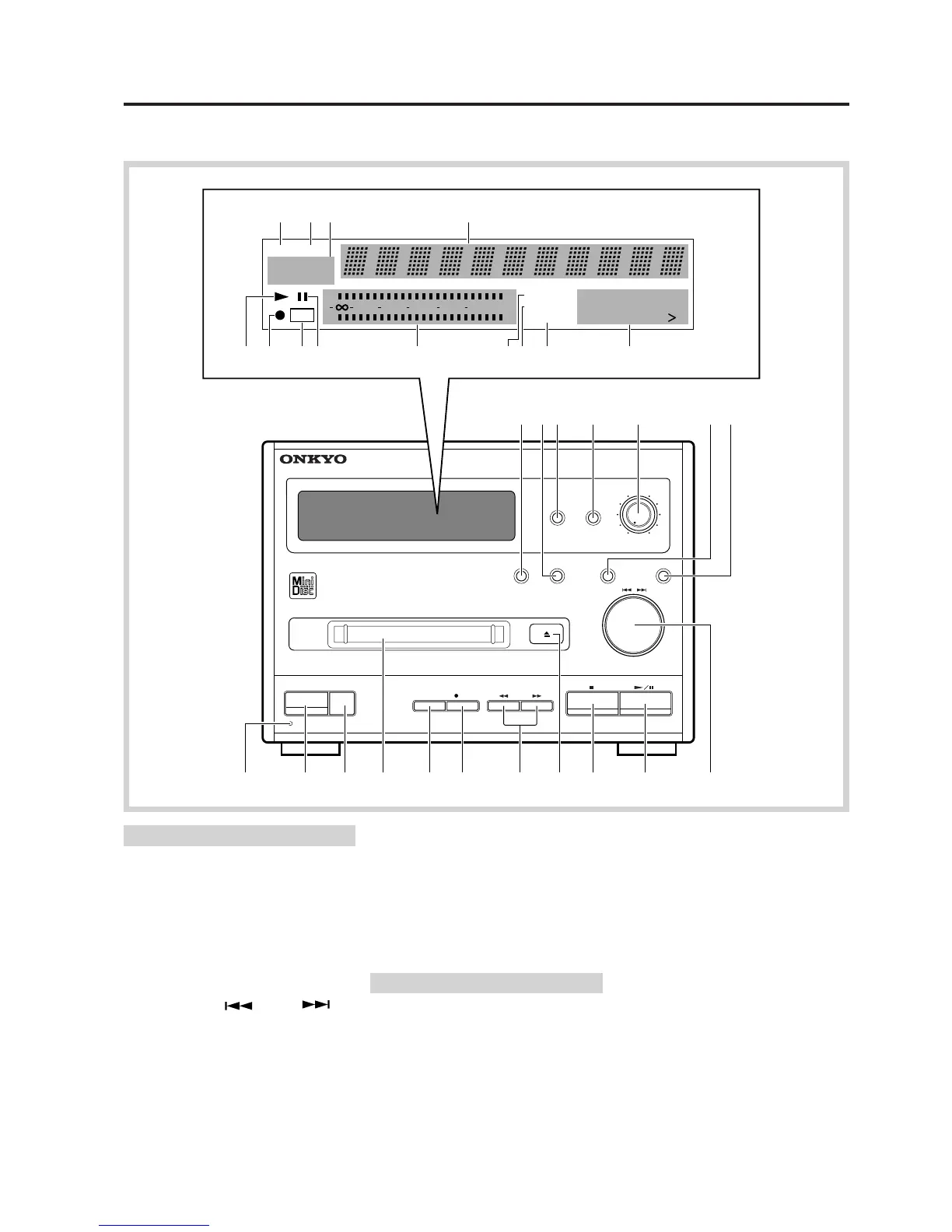

Control positions and names
If there is a protective film on the surface of the display, which is making it difficult to read the display, remove it.
For more information about a button or control, turn to the page number listed in square brackets [ ].
14. CD dubbing button (CD DUBBING)
[16, 17]
15. Disc slot
16. Remote sensor [9]
17. Stand-by/On button (STAND-BY/
ON) [6, 10, 18, 20]
18. Stand-by indicator (STAND-BY)
[6, 10, 18, 20]
Display
aa
aa
a DISC indicator
bb
bb
b TRACK indicator
cc
cc
c Input setting indicator
dd
dd
d Time/Title display
ee
ee
e Track number display
ff
ff
f REPEAT indicator
gg
gg
g RANDOM indicator
hh
hh
h Memory indicator
ii
ii
i Peak level meter
jj
jj
j Pause indicator
kk
kk
k TOC indicator
ll
ll
l REC indicator
mm
mm
m Play indicator
Front panel
1. Play mode button (PLAY MODE)
[13, 15]
2. Repeat button (REPEAT) [14]
3. Display button (DISPLAY) [11, 28]
4. Input button (INPUT) [16, 18-23]
5. Rec level control knob (REC
LEVEL) [21]
6. Edit/No button (EDIT/NO) [22, 24-29]
7. Yes button (YES) [22, 24-29]
8. AMCS knob (
AMCS )
[12, 15, 24-28]
9. Play/Pause button (
øø
øø
ø) [10, 13, 15,
19, 21, 22]
10. Stop button (
ßß
ßß
ß
) [10, 29]
11. Eject button (
åå
åå
å) [11]
12. FF/FR buttons (
π
,
π
) [11, 29]
13. REC button (
∂∂
∂∂
∂
REC) [17, 18, 20]
MINIDISC RECORDER
CD DUBBING
MD- 185X
REC
DISPLAY INPUT
REC LEVEL
20bit PROCESSING
AMCS
(PUSH-ENTER)
STAND-BY/ON
STAND BY
-
PLAY MODE
REPEAT EDIT/NO
YES
2 OPTICAL DIGITAL INPUTS
SAMPLING RATE CONVERTER
MIN MAX
DISC LOADING MECHANISM
TRACKDISC
12345
678910
11 12 13 14 15
DIGITAL IN 2
MEMORY
RANDOM
TOC
010 2 OVER2040
R
6
L
15
1
ANALOG IN
REPEAT 1
a
123 4 5 67
891011121314151617
18
b
ml jkihgfe
cd
