Remote Controller
Notes:
• If the remote controller doesn’t work reliably, try
replacing the batteries.
• Don’t mix new and old batteries or different types of
batteries.
• If you intend not to use the remote controller for a long
time, remove the batteries to prevent damage from
leakage or corrosion.
• Expired batteries should be removed as soon as possi-
ble to prevent damage from leakage or corrosion.
To use the remote controller, point it at the AV control-
ler’s remote control sensor, as shown below.
Transmission
Received
Notes:
• The remote controller may not work reliably if the AV
controller is subjected to bright light, such as direct
sunlight or inverter-type fluorescent lights. Keep this
in mind when installing.
• If another remote controller of the same type is used in
the same room, or the AV controller is installed close
to equipment that uses infrared rays, the remote con-
troller may not work reliably.
• Don’t put anything, such as a book, on the remote con-
troller, because the buttons may be pressed inadvert-
ently, thereby draining the batteries.
• The remote controller may not work reliably if the AV
controller is installed in a rack behind colored glass
doors. Keep this in mind when installing.
• The remote controller will not work if there’s an
obstacle between it and the AV controller’s remote
control sensor.
• When the remote control codes have been registered
and you want to operate another component
(page 135), or when you want to operate an Onkyo
component without u connection, point the remote
controller at the other component to use it.
• When you want to operate an Onkyo component with
u connection or an -compatible compo-
nent connected via HDMI (pages 137 and 138), point
the remote controller at the AV controller’s remote
control sensor.

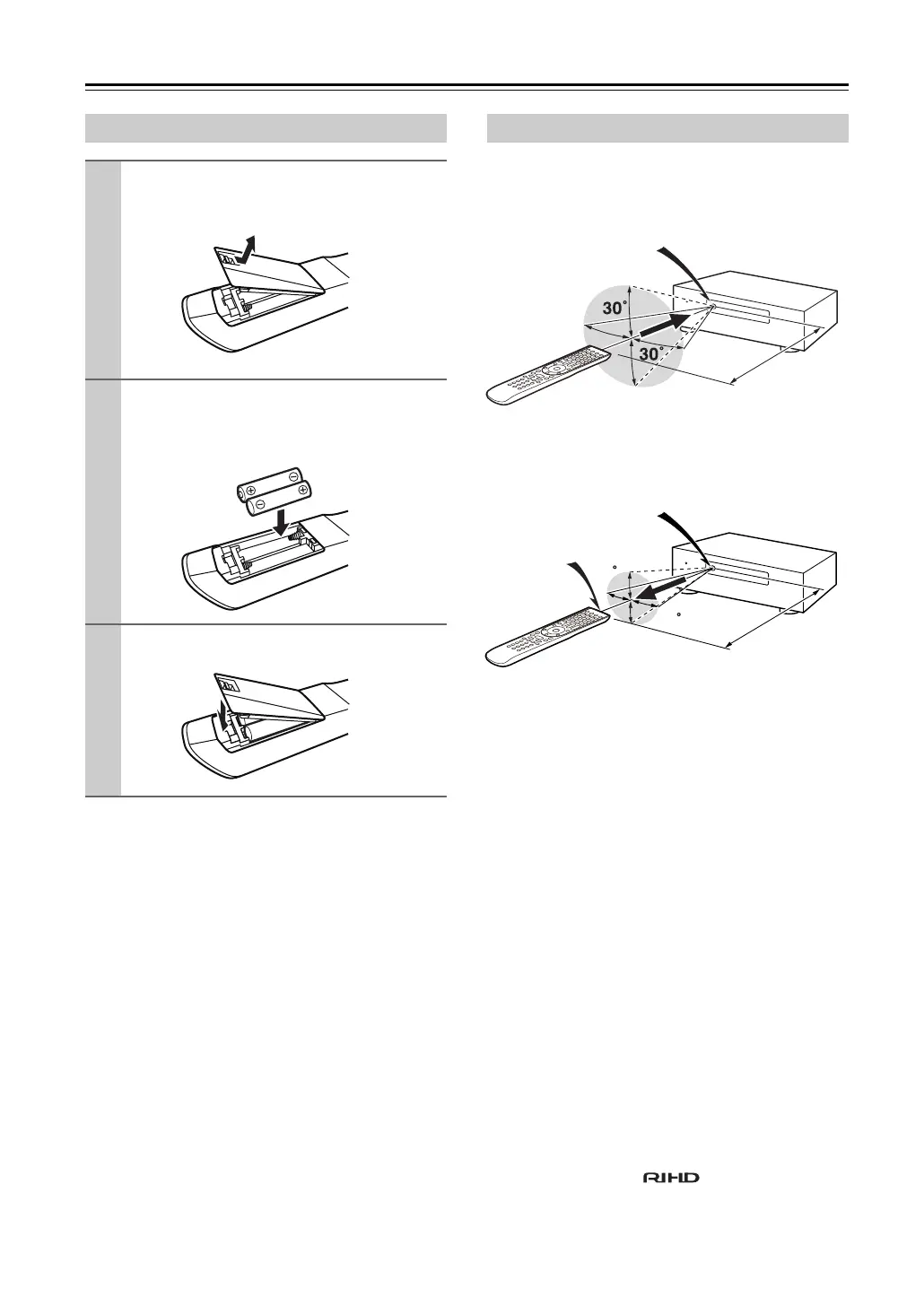

Installing the Batteries
1
To open the battery compartment, press
the small lever and remove the cover.
2
Insert the two supplied batteries (AA/R6)
in accordance with the polarity diagram
inside the battery compartment.
3
Replace the cover and push it shut.
Aiming the Remote Controller
Remote control sensor
AV controller
Approx. 16 ft. (5 m)
30° off center
(Left/Right/Up/Down)
15
15
Transmitter
AV controller
Approx. 16 ft. (5 m)
Incoming sensor
15° off center
(Left/Right/Up/Down)
To Next Page
