28
Connecting Your Components
—Continued
■
HDMI Monitor Setting Set to No
With the HDMI Monitor setting set to No (see
page 45), video input signals flow through the
AV controller as shown, with composite video
and S-Video sources being upconverted for the
component video output.
Use this setting if
you connect the AV controller’s COMPO-
NENT VIDEO MONITOR OUT 1 or COM-
PONENT VIDEO MONITOR
OUT 2/ZONE 2 OUT to your TV.
Composite video is upconverted to S-Video
and S-Video is downconverted to composite
video. Note that these conversions only apply
to the MONITOR OUT V and S outputs, not
the VCR/DVR OUT V and S outputs.
The composite video, S-Video, and component
video pass through their respective input sig-
nals as they are.
Audio Connection Formats
Audio equipment can be connected to the AV
controller by using any of the following audio
connection formats: analog, optical, coaxial,
analog multichannel, or HDMI.
When choosing a connection format, bear in
mind that the AV controller does not convert
digital input signals for analog line outputs and
vice versa. For example, audio signals con-
nected to an optical or coaxial digital input are
not output by the analog TAPE OUT.
IN
MONITOR OUT
DVD player, etc.
AV controller
TV, projector, etc.
Composite S-Video Component

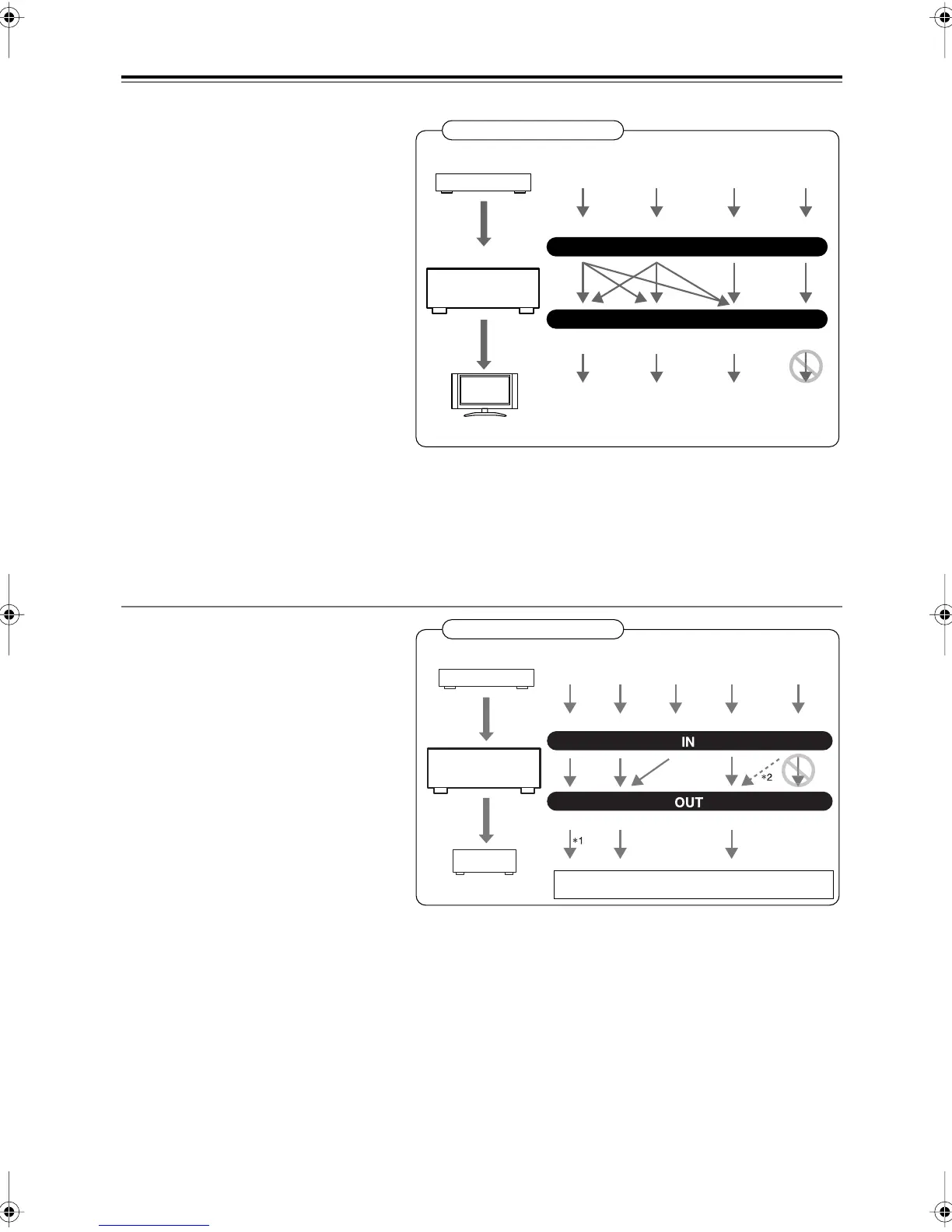

Video Signal Flow Chart
HDMI
Composite S-Video Component
HDMI
DVD player, etc.
AV controller
MD recorder, etc.
Optical
Optical
Coaxial Analog
Analog
Multichannel
Audio Signal Flow Chart
HDMI
HDMI
1 Depends on the HDMI Audio Out setting (see page 107).
2 Only the front L/R channels are output.
*
*
PR-SC885En.book Page 28 Tuesday, February 26, 2008 2:07 PM
