First Time Setup —Continued
If you connect a video component to a COMPONENT
VIDEO IN, you must assign that input to an input
selector. For example, if you connect your DVD player
to COMPONENT VIDEO IN 3, you must assign COM-
PONENT VIDEO IN 3 to the DVD input selector.
By default, the DVD input selector is assigned to COM-
PONENT VIDEO IN 1, and all of the other input selec-
tors (i.e., VCR/DVR, CBL/SAT, GAME/TV, AUX 1,
AUX 2, TAPE, CD, PHONO) are assigned to the “- - -”
option.
If you’ve connected your TV to the AV controller with a
component video cable, you can set the AV controller so
that composite video and S-Video sources are upcon-
verted (
*
) and output by the COMPONENT VIDEO
MONITOR OUT 1 or 2. You can set this for each input
selector by selecting the “- - -” option.
Notes:
• For composite video and S-Video upconversion for
the COMPONENT VIDEO MONITOR OUT 1 or
2, the HDMI Monitor setting must be set to Main
or Sub (see page 45). See page 27 for more informa-
tion on video signal flow and upconversion.
• This procedure can also be performed on the AV con-
troller by using its [SETUP], [ENTER], and arrow
buttons.

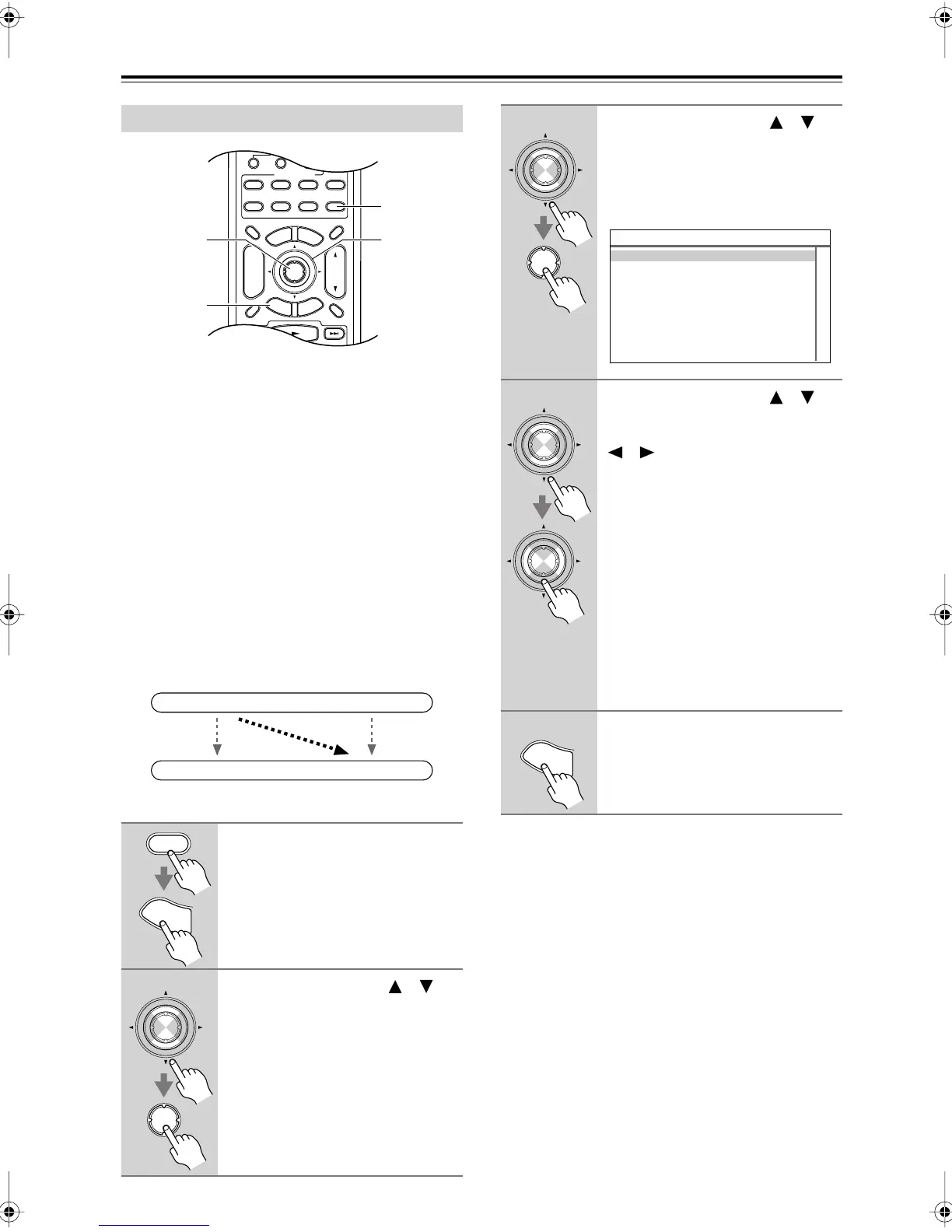

Component Video Input Setup
1
Press the [RECEIVER] button,
followed by the [SETUP] button.
The main menu appears onscreen.
2
Use the Up and Down [ ]/[ ]
buttons to select “1. Input/Output
Assign,” and then press [ENTER].
The Input/Output Assign menu
appears.
INPUT
SELECTOR
DISPLAY MUTING
G
U
I
D
E
E
X
I
T
PREV
CH
DIMMER
CDR/MD
SAT TAPE/AMP
SLEEP
MACRO
REMOTE MODE
ENTER
T
O
P
M
E
N
U
M
E
N
U
VOL
CH
DISC
ALBUM
TV
VCR
CABLE DOCK
DVD
RECEIVER
CD
12
3
ZONE 3
ZONE 2
+
-
S
E
T
U
P
R
E
T
U
R
N
2, 3
2–4
1
1, 5
IN
OUT
(
*
)
Composite video, S-Video
Composite video, S-Video
Component video
Component video
RECEIVER
S
E
T
U
P
ENTER
ENTER
3
Use the Up and Down [ ]/[ ]
buttons to select “3. Component
Video Input,” and then press
[ENTER].
The Component Video Input menu
appears.
4
Use the Up and Down [ ]/[ ]
buttons to select an input selec-
tor, and use the Left and Right
[ ]/[ ] buttons to select:
IN1: Select if the video component
is connected to COMPO-
NENT VIDEO IN 1.
IN2: Select if the video component
is connected to COMPO-
NENT VIDEO IN 2.
IN3: Select if the video component
is connected to COMPO-
NENT VIDEO IN 3.
- - -: Select to output composite
video and S-Video sources
from the COMPONENT
VIDEO OUT.
5
Press the [SETUP] button.
Setup closes.
ENTER
ENTER
1-3.Component Video Input
DVD IN1
VCR/DVR ---
CBL/SAT ---
GAME/TV ---
AUX1 ---
A
UX2 ---
ENTER
ENTER
S
E
T
U
P
