Onkyo TA-6210 User Manual

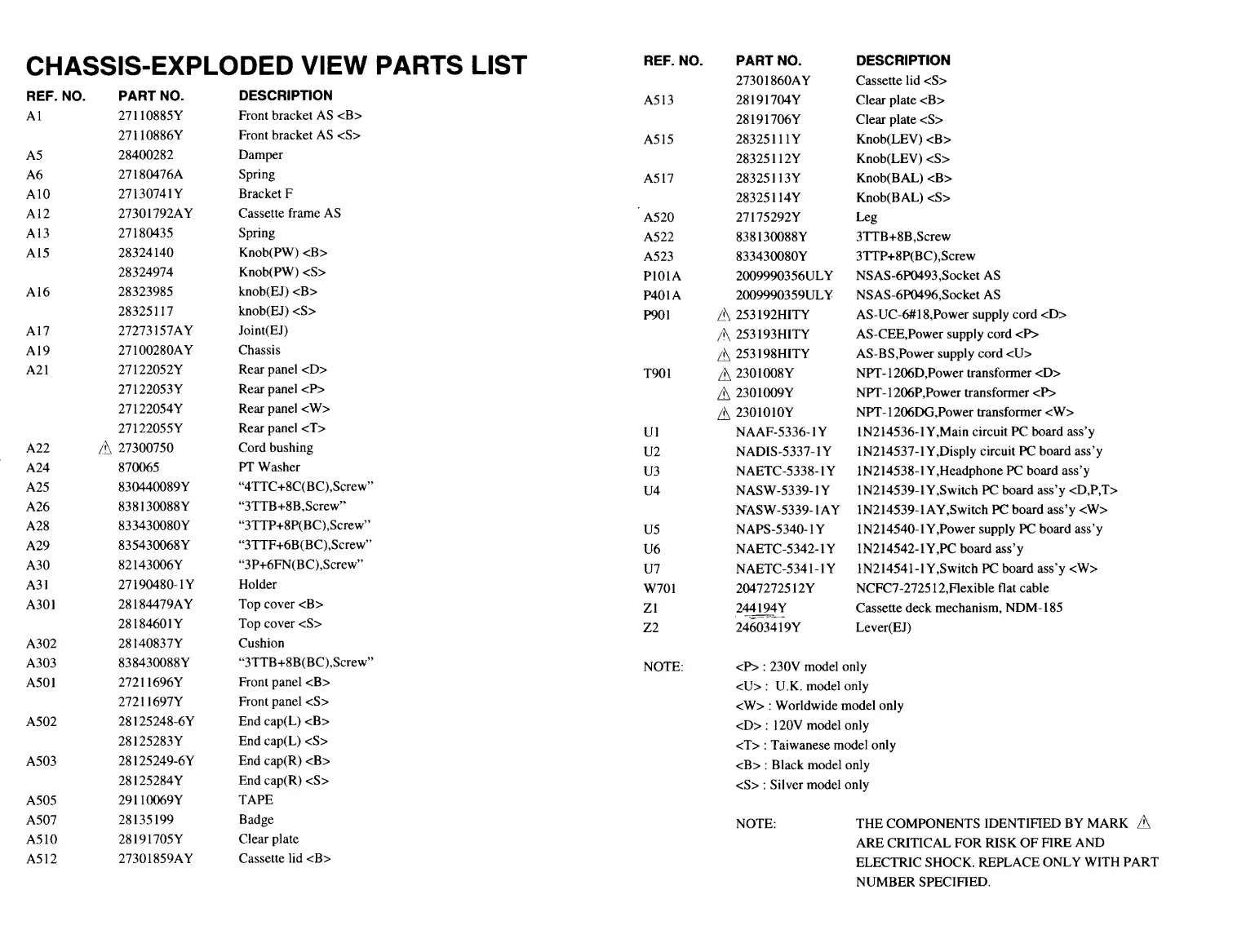

CHASSIS-EXPLODED VIEW PARTS LIST
REF. NO.
Al
A5
A6
Al0
Al2
Al3
Al5
Al6
Al7
Al9
A21
A22
A24
A25
A26
A28
A29
A30
A3]
A301
A302
A303
A501
A502
A503
A505
A507
A510
A512
/\
PART NO.
271 10885Y
271 10886Y
28400282
27180476A
27130741Y
27301792AY
27180435
28324140
28324974
28323985
28325117
27273 STAY
27100280AY
27122052Y
27122053Y
271 22054Y
27122055Y
27300750
870065
830440089 Y
838130088 Y
833430080Y
835430068 Y
82143006Y
27190480-1Y
28184479AY
28 184601 Y
28140837Y
838430088 Y
27211696Y
2721 1697Y
28 125248-6Y
28125283 Y
28125249-6Y
28 125284Y
291 10069Y
28135199
28191 705Y
27301859AY
DESCRIPTION
Front bracket AS <B>
Front bracket AS <S>
Damper
Spring
Bracket F
Cassette frame AS
Spring
Knob(PW) <B>
Knob(PW) <S>
knob(EJ) <B>
knob(EJ) <S>
Joint(EJ)
Chassis
Rear panel <D>
Rear panel <P>
Rear panel <W>
Rear panel <T>
Cord bushing
PT Washer
“ATTC+8C(BC),Screw”
“3TTB+8B,Screw”
“3TTP+8P(BC),Screw”’
“3TTF+6B(BC),Screw”’
“3P+6FN(BC),Screw”
Holder
Top cover <B>
Top cover <S>
Cushion
“3TTB+8B(BC),Screw”
Front panel <B>
Front panel <S>
End cap(L) <B>
End cap(L) <S>
End cap(R) <B>
End cap(R) <S>
TAPE
Badge
Clear plate
Cassette lid <B>
REF. NO.
A513
A515
AS17
A520
A522
A523
PIOLA
P401A
P901
T901
Ul
U2
U3
U4
US
U6
U7
W701
Zi
Z2
NOTE:
PART NO. DESCRIPTION
27301860AY Cassette lid <S>
28191 704Y Clear plate <B>
28191 706Y Clear plate <S>
28325 111Y Knob(LEV) <B>
28325112Y Knob(LEV) <S>
28325113 Y Knob(BAL) <B>
28325 114Y Knob(BAL) <S>
27175292Y Leg
838 130088 Y 3TTB+8B,Screw
833430080Y 3TTP+8P(BC),Screw
2009990356ULY NSAS-6P0493,Socket AS
20099903S59ULY NSAS-6P0496,Socket AS
/\ 253192HITY
/\ 253193HITY
/\ 253198HITY
AS-UC-6#18,Power supply cord <D>
AS-CEE,Power supply cord <P>
AS-BS,Power supply cord <U>
/\ 2301008Y NPT-1206D,Power transformer <D>
/\, 2301009Y NPT-1206P,Power transformer <P>
/\ 2301010Y NPT-1206DG,Power transformer <W>
NAAF-5336-1Y
NADIS-5337-1Y
IN214536-1Y,Main circuit PC board ass’y
1N214537-1Y,Disply circuit PC board ass’y
NAETC-5338-1Y = 1N214538-1Y,Headphone PC board ass’ y
NASW-5339-1Y 1N214539-1LY Switch PC board ass’y <D,P,T>
NASW-5339-LAY 1N214539-LAY,Switch PC board ass’y <W>
NAPS-5340-1Y 1N214540-1Y,Power supply PC board ass’y
NAETC-5342-1Y = 1N214542-1Y,PC board ass’y
NAETC-5341-1Y = 1N214541-1Y,Switch PC board ass’y <W>
20472725 12Y NCFC7-272512,Flexible flat cable
244 194Y Cassette deck mechanism, NDM-185
24603419Y Lever(EJ)
<P> : 230V model only
<U>: U.K. model only
<W> : Worldwide model only
<D> : 120V model only
<T> : Taiwanese model only
<B> : Black model only
<S> : Silver model only
NOTE: THE COMPONENTS IDENTIFIED BY MARK /\
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH PART
NUMBER SPECIFIED.
