Onkyo TA-RW111 User Manual

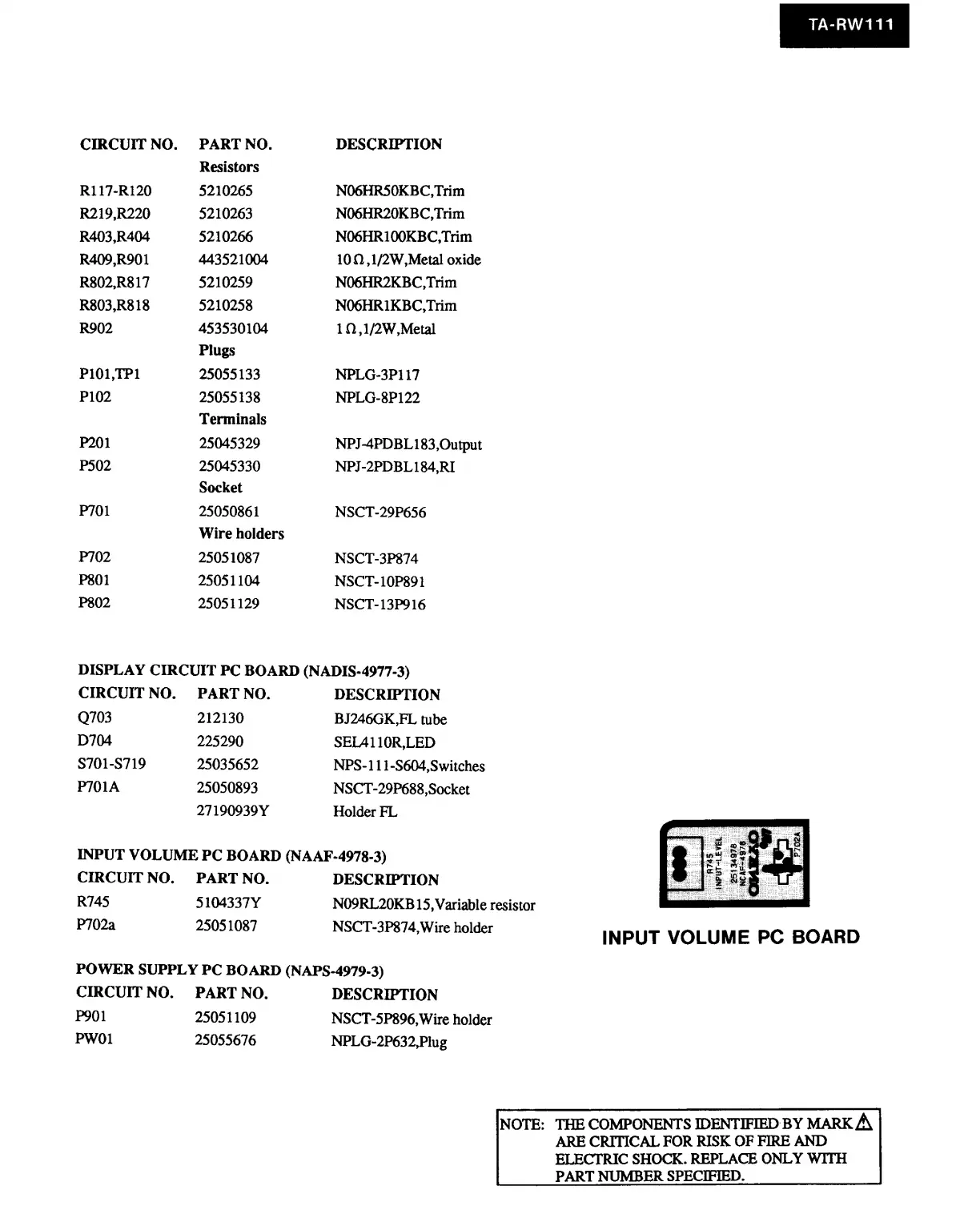

CIRCUIT NO.
R117-R120
R219,R220
R403,R404
R409,R901
R802,R817
R803,R818
R902
P101,TP1
P102
P201
P3502
P701
P702
P801
P802
PART NO.
Resistors
5210265
5210263
5210266
443521004
§210259
5210258
453530104
Plugs
25055133
25055138
Terminals
25045329
25045330
Socket
25050861
Wire holders
25051087
25051104
25051129
DESCRIPTION
NO6HRSOKBC,Trim
NO6HR20KBC, Trim
NO6HR100KBC,Trim
100,1/2W,Metal oxide
NO6HR2KBC,Trim
NO6HRIKBC,Trim
10,1/2W,Metal
NPLG-3P117
NPLG-8P122
NPJ-4PDBL183,Output
NPJ-2PDBL184,RI
NSCT-29P656
NSCT-3P874
NSCT-10P891
NSCT-13P916
DISPLAY CIRCUIT PC BOARD (NADIS-4977-3)
CIRCUIT NO.
Q703
D704
$701-S719
P701A
PART NO.
212130
225290
25035652
25050893
27190939Y
DESCRIPTION
BJ246GK,FL tube
SEL4110R,LED
NPS-111-S604,Switches
NSCT-29P688,Socket
Holder FL
INPUT VOLUME PC BOARD (NAAF-4978-3)
CIRCUIT NO.
R745
P702a
PART NO.
3104337Y
2505 1087
DESCRIPTION
NO9RL20KB 15, Variable resistor
NSCT-3P874, Wire holder
POWER
SUPPLY
PC
BOARD
(NAPS-4979-3)
CIRCUIT NO.
P901
PWO1
PART NO.
25051109
25055676
DESCRIPTION
NSCT-5P896,Wire holder
NPLG-2P632,Plug
TA-RW111
INPUT VOLUME PC BOARD
: THE COMPONENTS IDENTIFIED BY MARK A\
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
