TA-RW255

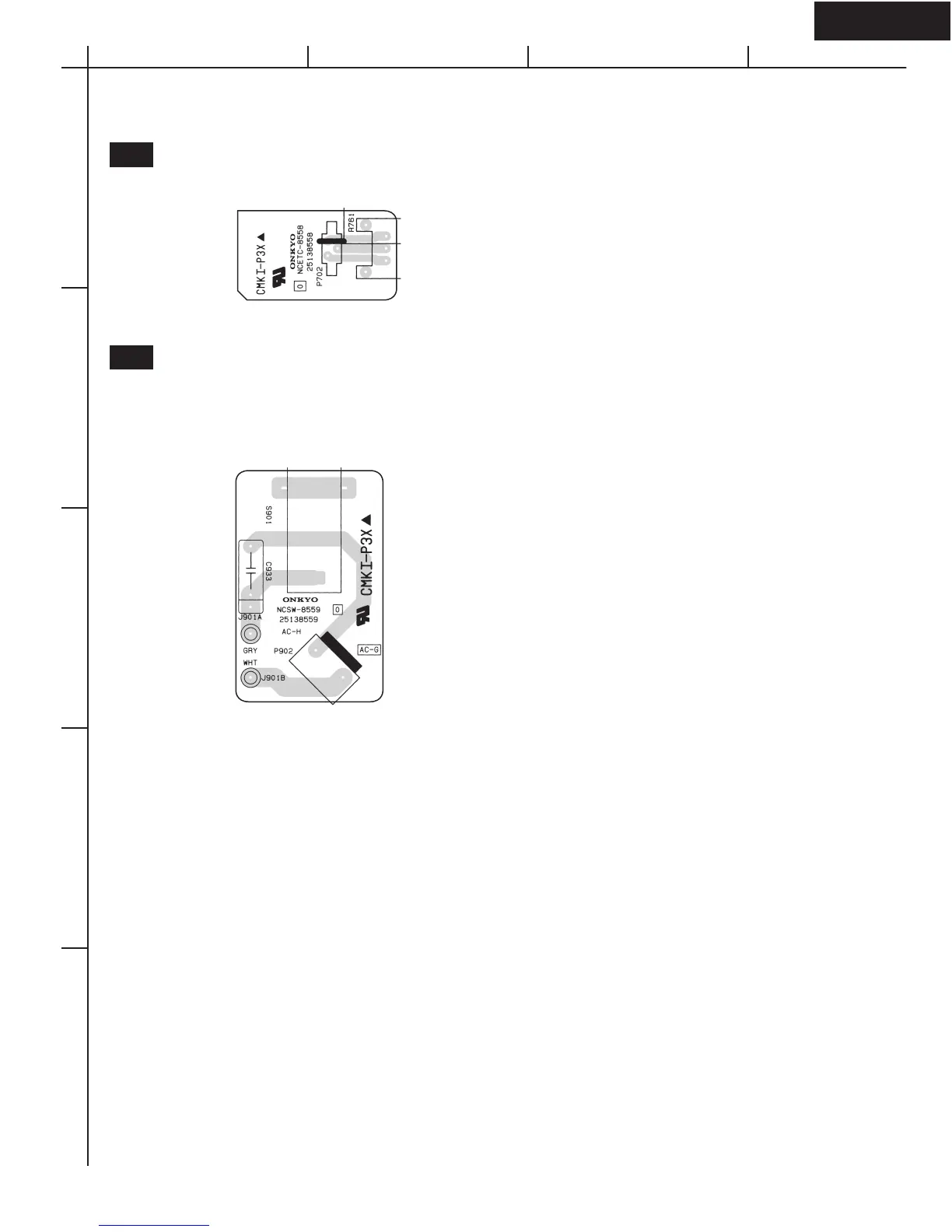

PRINTED CIRCUIT BOARD VIEWS-5
A
1
2
3
4
5
BCD
U04
INPUT VOLUME PC BOARD (NAETC-8558)
Component side view from soldering side
Component side view from soldering side
U05
POWER SWITCH PC BOARD (NASW-8559)
EXCEPT <MDD>
