_TX-7530

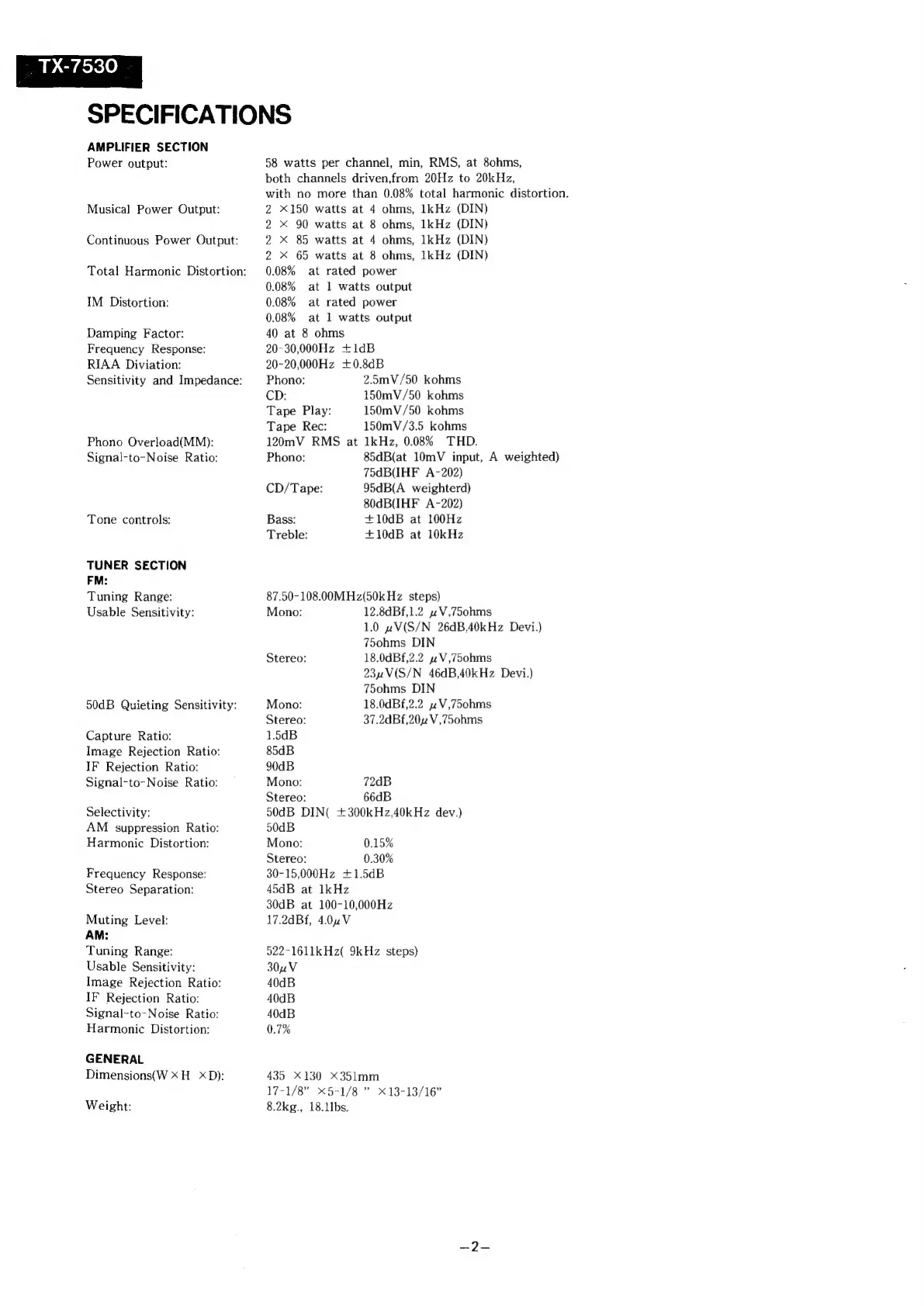

SPECIFICATIONS
AMPLIFIER SECTION
Power output:
Musical Power Output:
Continuous Power Output:
Total Harmonic Distortion:
IM _ Distortion:
Damping Factor:
Frequency Response:
RIAA Diviation:
Sensitivity and Impedance:
Phono Overload(MM):
Signal-to-Noise Ratio:
Tone controls:
TUNER SECTION
FM:
Tuning Range:
Usable Sensitivity:
50dB Quieting Sensitivity:
Capture Ratio:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to-Noise Ratio:
Selectivity:
AM suppression Ratio:
Harmonic Distortion:
Frequency Response:
Stereo Separation:
Muting Level:
AM:
Tuning Range:
Usable Sensitivity:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to-Noise Ratio:
Harmonic Distortion:
GENERAL
Dimensions(W XH XD):
Weight:
58 watts per channel, min, RMS, at 80hms,
both channels driven,from 20Hz to 20kHz,
with no more than 0.08% total harmonic distortion.
2 X150 watts at 4 ohms, 1kHz (DIN)
2 X 90 watts at 8 ohms, 1kHz (DIN)
2 X 85 watts at 4 ohms, 1kHz (DIN)
2 X 65 watts at 8 ohms, 1kHz (DIN)
0.08% at rated power
0.08% at 1 watts output
0.08% at rated power
0.08% at 1 watts output
40 at 8 ohms
20-30,000Hz +1dB
20-20,000Hz +0.8dB
Phono: 2.5mV/50 kohms
CD: 150mV/50 kohms
Tape Play: 150mV/50 kohms
Tape Rec: 150mV/3.5 kohms
120mV RMS at 1kHz, 0.08% THD.
Phono: 85dB(at 10mV input, A weighted)
75dBUIHF A-202)
CD/Tape: 95dB(A weighterd)
80dB(IHF A-202)
Bass: +10dB at 100Hz
Treble: +10dB at 10kHz
87.50-108.00MHz(50kHz steps)
Mono: 12.8dBf,1.2 4 V,750hms
1.0 wV(S/N 26dB,40kHz Devi.)
750hms DIN
Stereo: 18.0dBf,2.2 « V,750hms
23uV(S/N 46dB,40kHz Devi.)
750ohms DIN
Mono: 18.0dBf,2.2 4 V,75ohms
Stereo: 37.2dBf,20u V,750hms
1.5dB
85dB
90dB
Mono: 72dB
Stereo: 66dB
50dB DIN( +300kHz,40kHz dev.)
50dB
Mono: 0.15%
Stereo: 0.30%
30-15,000Hz +1.5dB
45dB at 1kHz
30dB at 100-10,000Hz
17.24BE, 4.0uV
522-1611kHz( 9kHz steps)
30nV
40dB
40dB
40dB
0.7%
435 X130 351mm
17-1/8” X5-1/8 ” X13-13/16”
8.2kg., 18.1bs.
