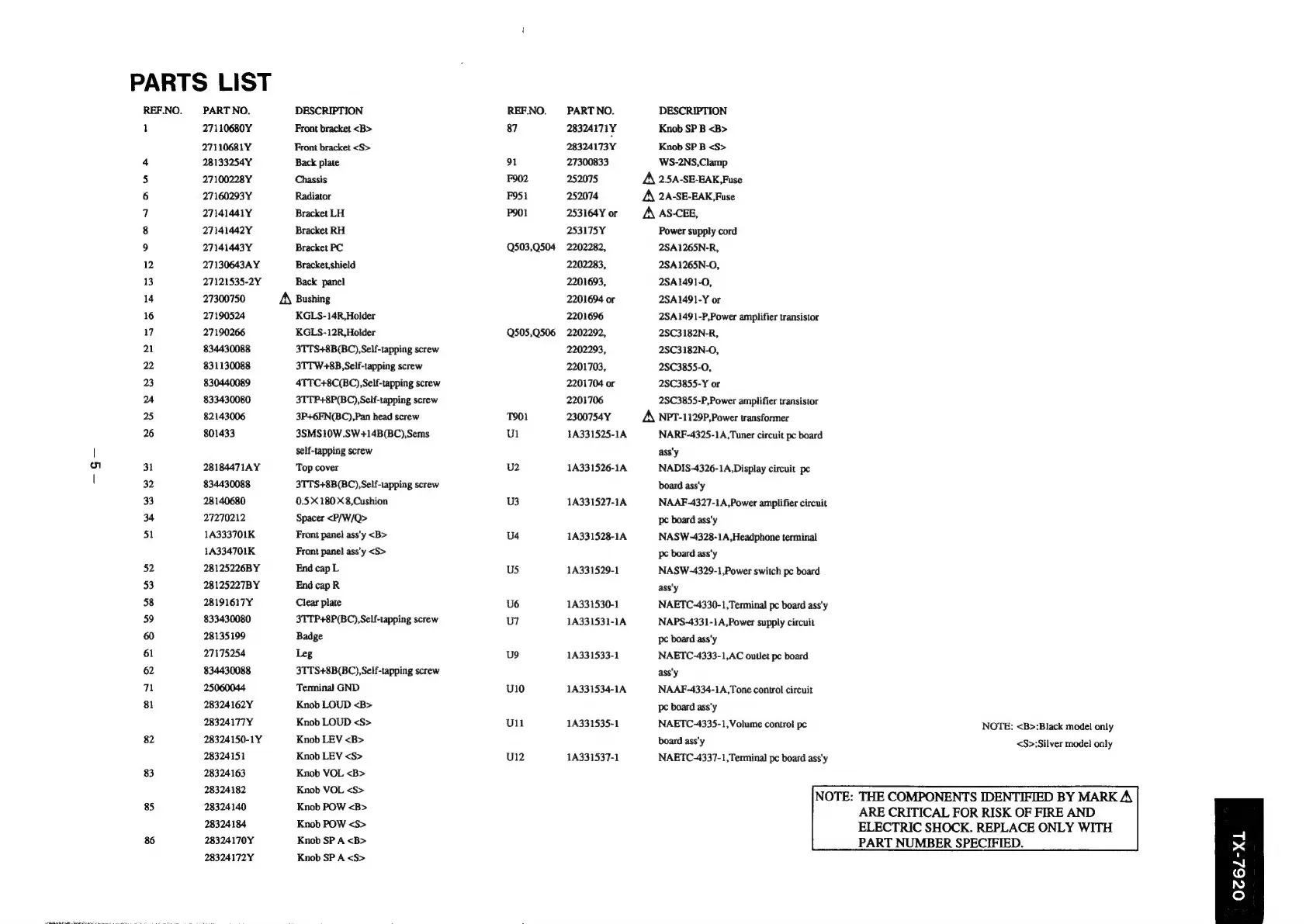

PARTS LIST
REF.NO. PARTNO. DESCRIPTION REFNO. PART NO. DESCRIPTION
1 27110680Y Front bracket <B> 87 2832A1T1Y Knob SP B <B>
27110681Y Front bracket <S> 28324173Y Knob SP B <S>
4 28133254Y¥ Back plate 91 27300833 WS-2NS,Clamp
5 27100228Y Chassis F902 252075 A\ 2.5A-SE-EAK Fuse
6 27160293Y Radiator F951 252074 A 2A-SE-EAK,Fuse
7 27141441Y Bracket LH P901 253164Y or A AS-CEE,
8 27141442Y Bracket RH 253175Y Power supply cord
9 27141443Y Bracket PC Q503,Q504 2202282, 2SA1265N-R,
12 27130643AY Bracket,shield 2202283, 2SA1265N-0,
13 27121535-2Y Back panel 2201693, 2SA1491-0,
14 27300750 A Bushing 2201694 or 2SA1491-Y or
16 27190524 KGLS-14R,Holder 2201696 2SA1491-P,Power amplifier transistor
17 27190266 KGLS-12R,Holder Q505,Q506 2202292, 2SC3182N-R,
21 834430088 3TTS+8B(BC),Self-tapping screw 2202293, 2SC3182N-0,
22 831130088 3TTW+8B,Self-tapping screw 2201703, 2S8C3855-O,
23 830440089 4TTC+8C(BC),Self-tapping screw 2201704 or 2SC3855-Y or
24 833430080 3TTP+8P(BC),Self-tapping screw 2201706 2SC3855-P,Power amplifier transistor
25 82143006 3P+6FN(BC),Pan head screw T901 2300754Y A NPT-1129P,Power transformer
26 801433 3SMS10W.SW+14B(BC),Sems Ul 1A331525-1A NARF-4325-1A,Tuner circuit pe board
| self-tapping screw ass'y
oa 31 28184471AY Top cover U2 1A331526-1A NADIS-4326-1A,Display circuit pe
| 32 834430088 3TTS+8B(BC),Self-tapping screw board ass'y
33 28140680 0.5 X 180 X8,Cushion U3 1A331527-1A NAAF-4327-1A,Power amplifier circuit
34 27270212 Spacer <P/W/Q> pe board ass’y
51 1A333701K Front panel ass'y <B> U4 1A331528-1A NASW-4328-1A,Headphone terminal
1A334701K Front panel ass'y <S> pe board ass'y
52 28125226BY End cap L US 1A331529-1 NASW-4329-1,Power switch pc board
53 28125227BY End cap R ass'y
58 28191617Y Clear plate U6 1A331530-1 NAETC-4330-1,Terminal pe board ass'y
59 833430080 3TTP+8P(BC),Self-tapping screw U7 1A331531-1A NAPS-4331-1A,Power supply circuit
60 28135199 Badge pe board ass'y
61 27175254 Leg U9 1A331533-1 NAETC-4333-1,AC outlet pe board
62 834430088 3TTS+8B(BC),Self-tapping screw ass'y
71 25060044 Terminal GND U10 1A331534-1A NAAF-4334-1A,Tone control circuit
81 28324162Y Knob LOUD <B> pe board ass'y
28324177Y Knob LOUD <S> Uli 1A331535-1 NAETC-4335-1, Volume control pe NOTE: <B>:Black model only
82 28324150-1Y Knob LEV <B> board ass'y <S>:Silver model only
28324151 Knob LEV <S> U12 1A331537-1 NAETC-4337-1,Terminal pe board ass'y
83 28324163 Knob VOL <B>
aadcke Ener SS : THE COMPONENTS IDENTIFIED BY MARK A
& saeco Sega ARE CRITICAL FOR RISK OF FIRE AND
28324184 Knob POW <S> ELECTRIC SHOCK. REPLACE ONLY WITH
86 28324170Y Knob SP A <B> PART NUMBER SPECIFIED.
28324172Y Knob SP A <S>
